Fiber Patch Panel with 24 SC, FC, LC, ST Adapter Plate, 48 Splices

$27.38

Drawer Type, Rack Mountable, Indoor Application

Model: GPZJJ-CLD
Premium cold rolled steel
Height can be 1U, 2U, 3U, 4U
4 cable entry ports with grommets in the rear of the unit
Adapter panel and splice tray can change as request
Free sample is available

Minimum order quantity: 100 pcs.
Shipping cost not included.
Please CONTACT for a quote on larger quantities.
A sample is free of charge, but freight fee is on your account.

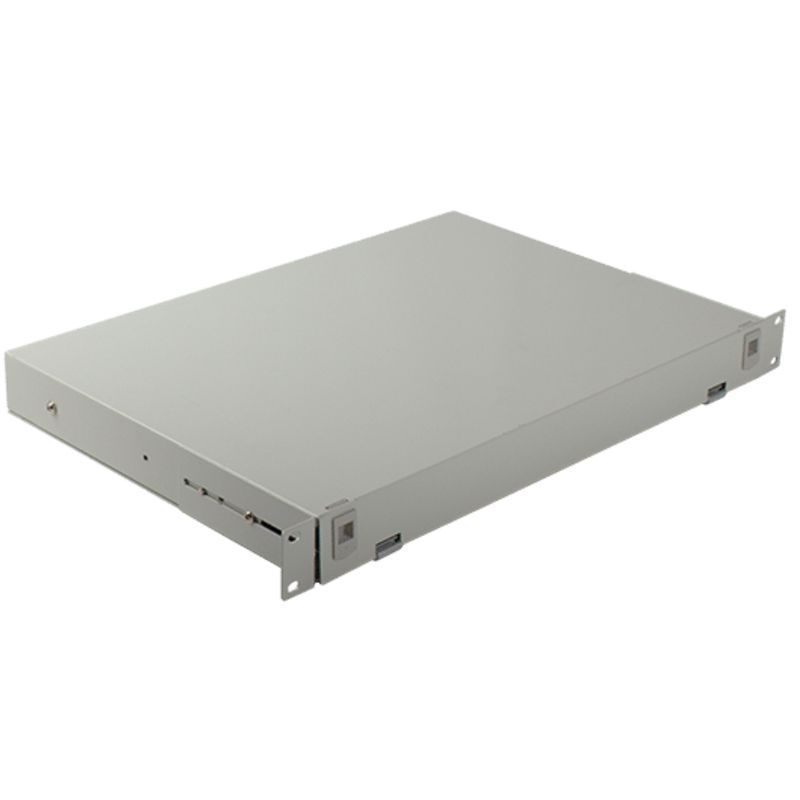

The sliding type fiber patch panel is a high density fiber distribution unit that can configure SC, LC, FC, or ST adapter panel for rack mount application. It is used to realize the connection between optical fiber cable and pigtail, and provides excellent fiber patching and splicing management. The 1U fiber enclosure is of drawer structure, reasonable layout, and adequate room for easy operation, it is applicable in the branch connection of optical cable terminal and usually mounted on 19″or 23″ rack of the server cabinet.

This 19” fiber patch panel is available to be loaded with various adapters (sc, fc, lc, st) and 24 or 48 strand pigtail for rack-mount installation, the cable can be single-mode and multimode according to your actual solution. It holds 2 pcs 12 or 24 splice trays for fusion splicing and storage; the optical cable enters from the rear of the rack mounted unit, fiber patch cord comes out by connecting adapter panel.

Technical index:

Fiber radius curvature：≥40mm

Extra loss of fiber tray: none

Fiber length left in tray:≥1.6m

Working temperature：-5℃～+40℃

Ultimate tensile strength：≥500N

Crush strength：≥200N

Specification:

Size(mm)	48230044.5 (1U)
Suitable adapters	SC, ST, FC, LC
Cable inlet/outlet	4/24
Connector capacity	24 or 48
Max fiber splice capacity	24 (single core) or 48 (dual core)
Application	FTTH, LAN,WAN,CATV etc
Lead Time	5 days for 100pcs, 10 days for 800pcs
MOQ	100pcs

Our Services

Fast Delivery

Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.

Guaranty

All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
