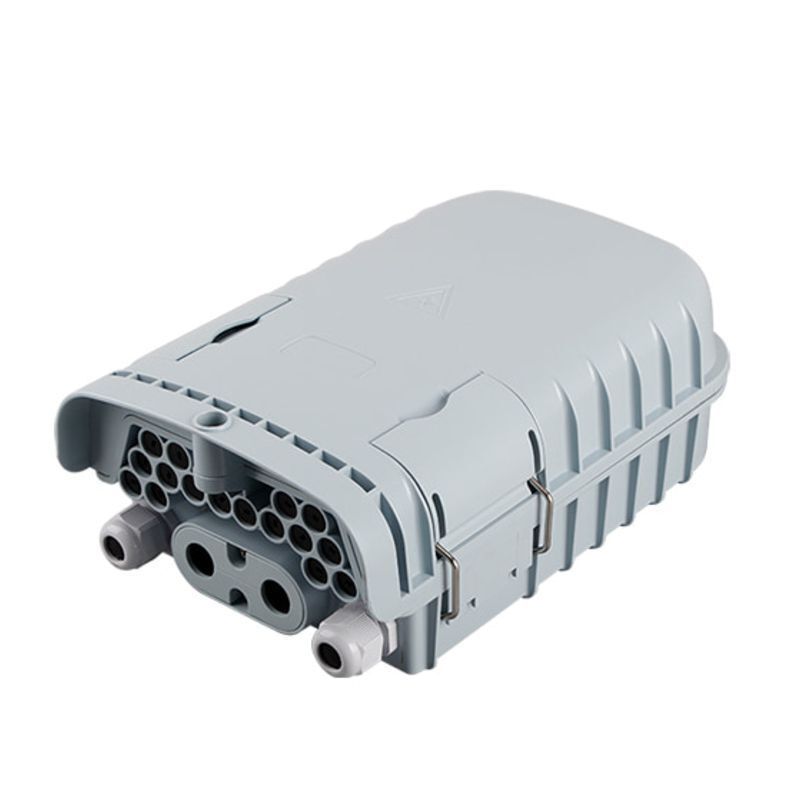

This model is a outdoor fiber optic distribution box designed to connect feeder cable and drop cable in FTTX communication network systems. Â It enables the direct or branch connection and network terminal connection; It integrates the functions of fusion/mechanical splicing, splitting, distribution, storage; and it is also excellent for protecting optical cable and pigtail. The unit is mainly used in the end termination of apartment, residential & business building, villas in the fiber access network.
The plastic box comes with four input and 16 output ports, which can accommodate max 1pc 1:16 or 2pcs 1×8 cassette plc splitter to distribute optical fiber cable and realize the splitting connection . It is of engineering plastic offering strong protection for splices and terminations; the anti-theft lock provides extra security; dual-layer design is clear for fiber operation, lower layer for splicing, wiring, and upper layer for splitting and cable distribution. The optical fiber cable distribution box is waterproof and supports 16 cores termination in indoor and outdoor applications.
Features:
. High-quality engineering plasticsÂ
. Enough space for cable storage and fiber routing
. Lockable cover for safety
. Flip design for distribution panel is easy for installation
. UV, impact, aging, and water resistance
Specification:
Size (mm) | 287x172x102 |
Weight(kg) | 1.4 |
Cable inlet/outlet | 4/16 |
Cable diameter (mm) | Φ6~Φ16 |
Max splice capacity | 16 cores (single) |
Max splitting | Â 1:16 |
Lead time | Â 7 days for 100pcs, 10 days for 800pcs |
MOQ | 100 pcs |
