16 Port FTTH Splitter Distribution Box, 32 Cores Splices

The 16 port optical fiber splitter distribution box works as a termination point to connect feeder cable and drop cable in the FTTX application. This plastic unit integrates fiber fusion splicing, signal splitting, termination and cable distribution within the protection box in indoor and outdoor environments. It not only provides the protective connection of the optical cable and pigtail, but also achieve direct connection and branch connection of the fiber optic cable in the dwelling, business building and villas, it supports both wall-mounted and pole-mounted deployment.

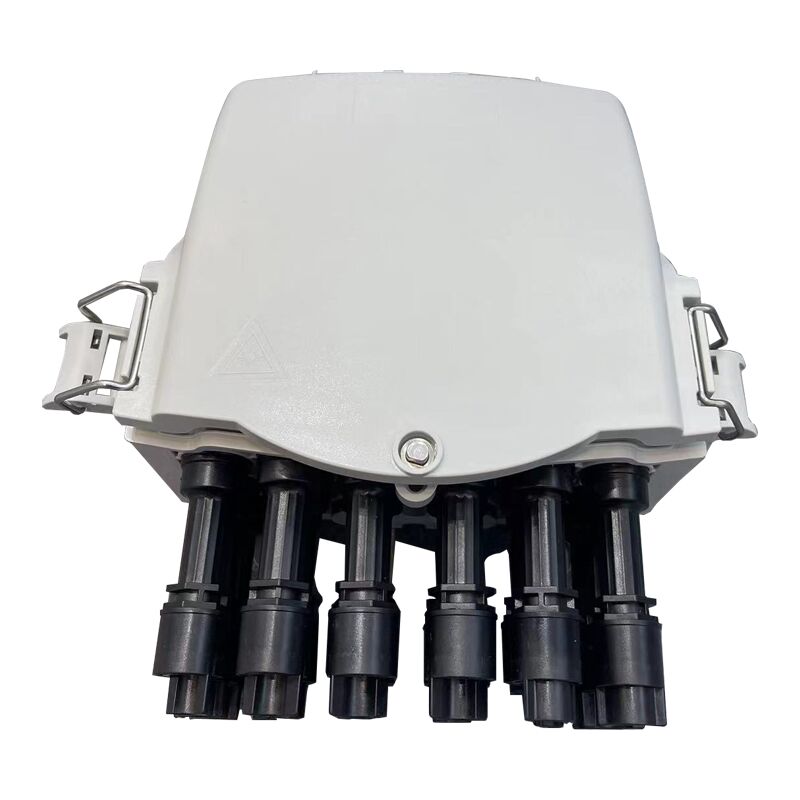

This outdoor fiber distribution box comes with 2 inlets and 16 outlets, which can house fiber optic splitter to realize optical signal splitting and hold up to 16 core termination. It is of engineering plastic offering strong protection for splice and termination; the anti-theft lock provides extra security; the simple design is clear for installation and maintenance. The box would be pre-connectorized waterproof adapter as your different solution demand.

The 16 port fiber termination box is an interconnection between the central office and multi-dwelling units in the FTTH, FTTB network. The spacious box allows max 32 cores splicing, and could install a steel-tube type splitter or inserted box type plc splitter to distribute optical fibre cable.

Feature:

. Made of high-quality plastics ABS or ABS+PC, impact resistance and aging resistance

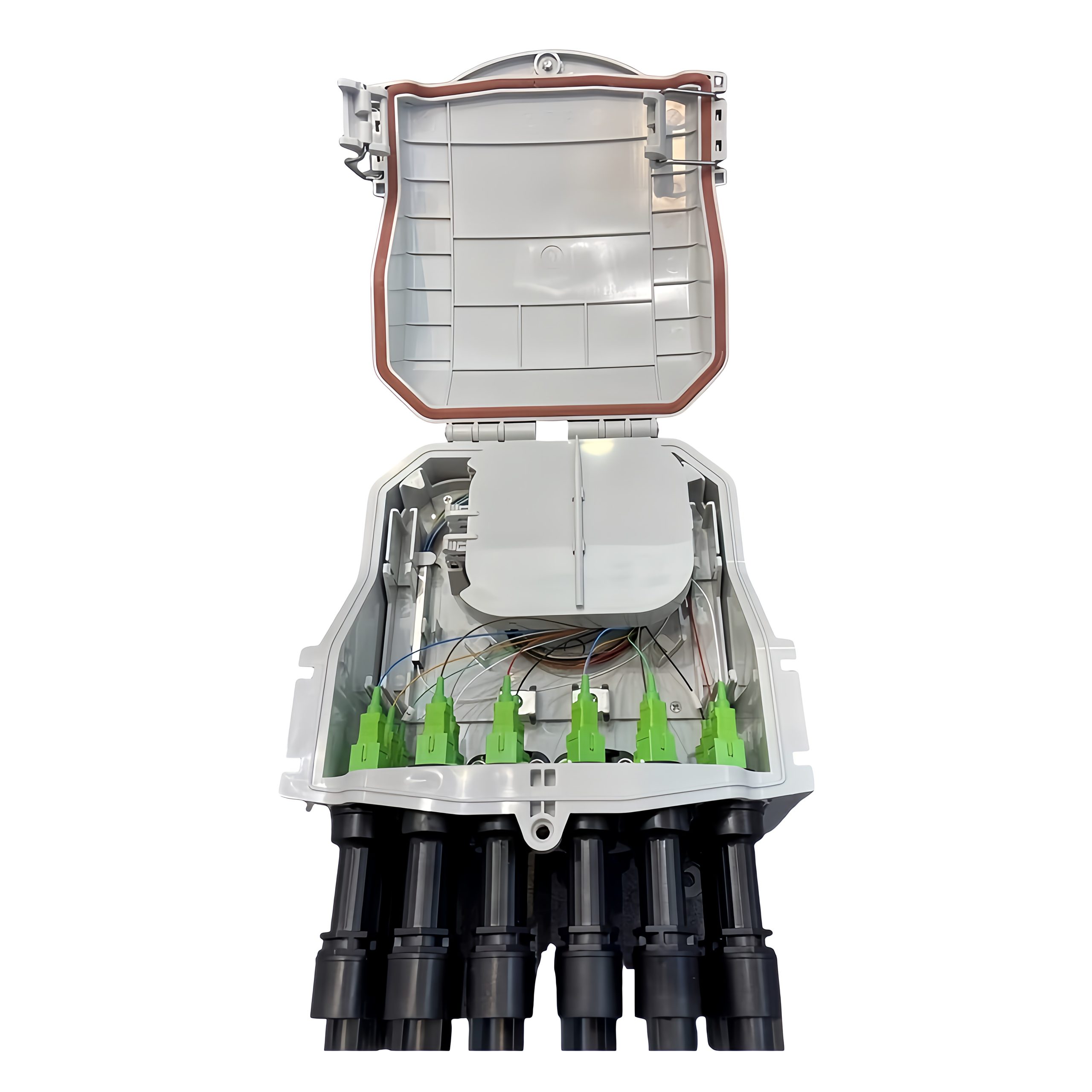

.Unique reversible splice tray, making fiber management clearer and less prone to crossing

.Cable inlet can be selected as a waterproof inlet or digging cable inlet

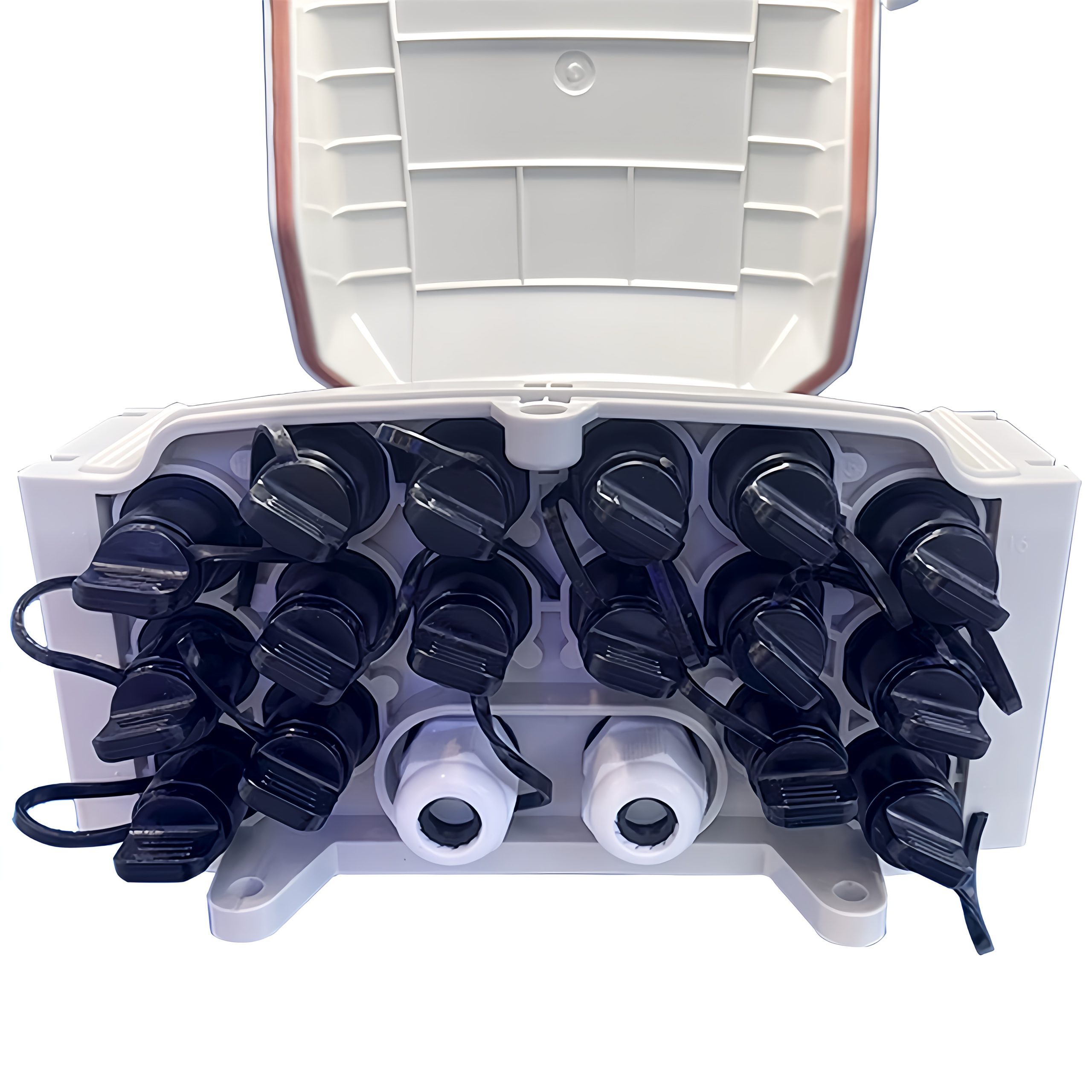

. Cable outlet can be choosed as a waterproof adaptor support type or a waterproof adapter type

. PLC splitter is optional,  mini type or cassette type splitter

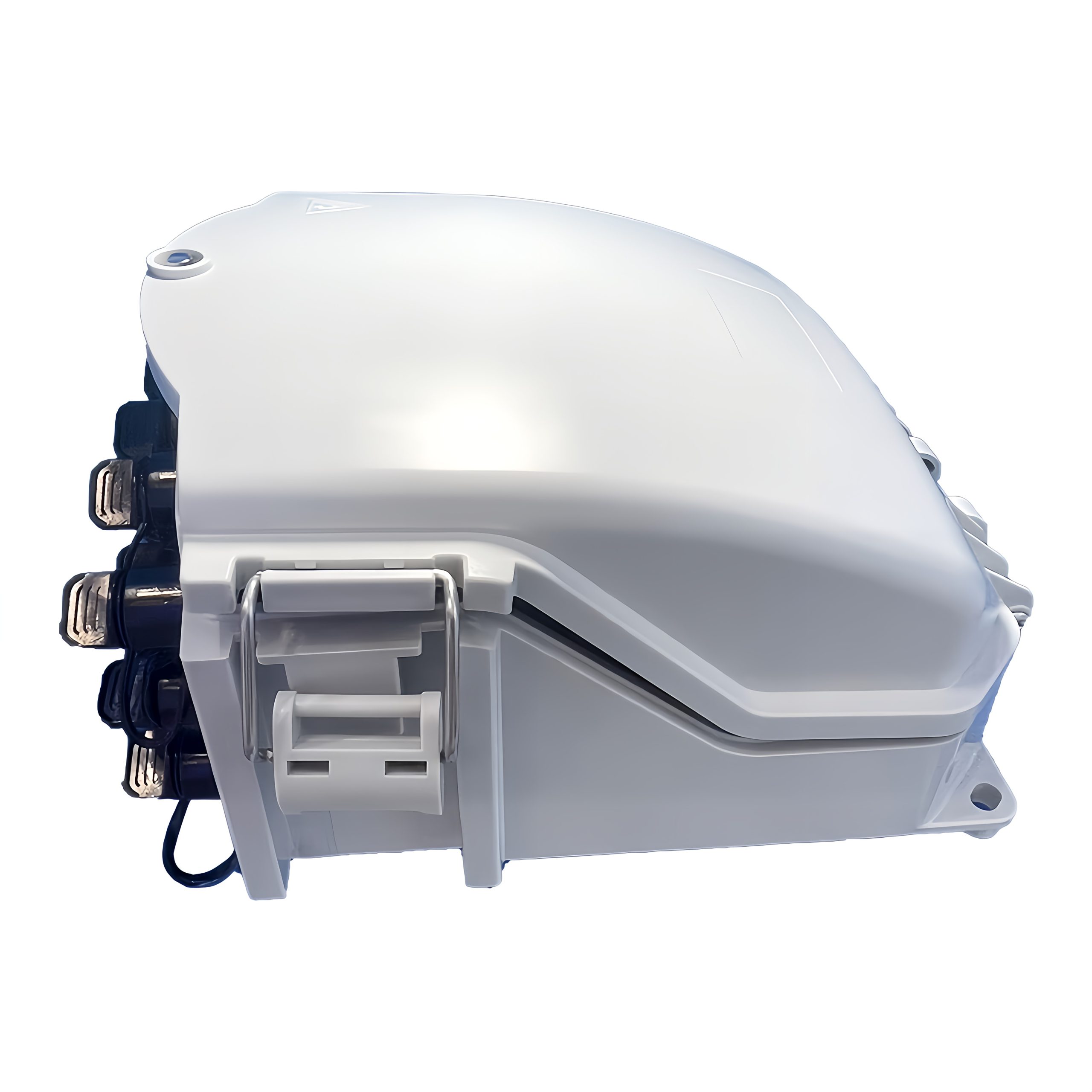

.Cover has a suspended fixing device, which will not affect construction due to falling

Specification:
