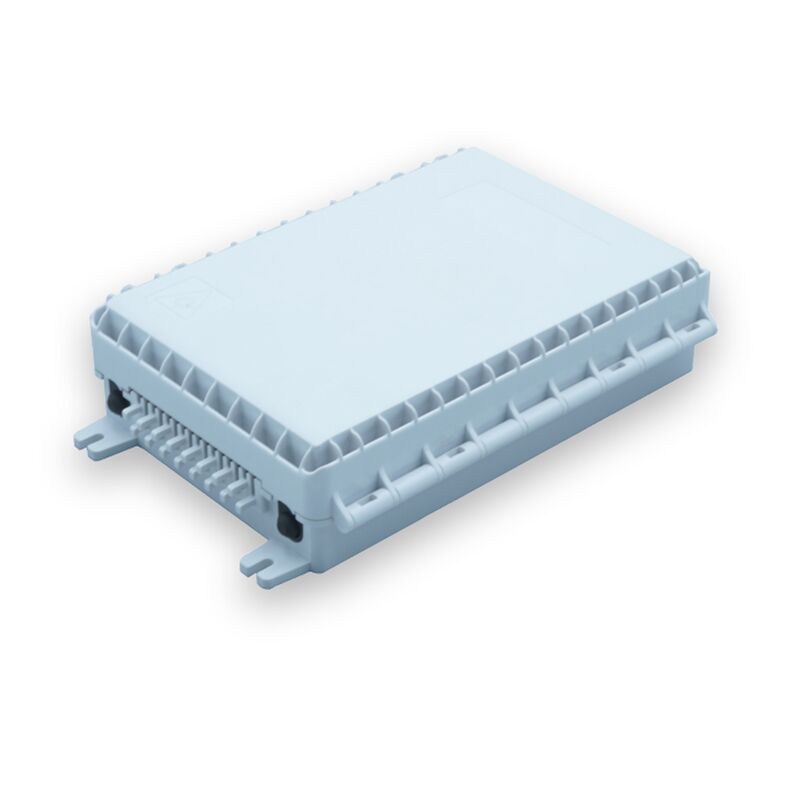

16 Ports Fiber Splitter Distribution Box, 18 Cores Splice
$12.70
Wall Mounted & Pole Mounted, 4 Cable Entry Points, Mini Splitter Type, Indoor Use
- Model: FDB-0416A
- Material: ABS or ABS+PC
- Protection level IP54
- Available to be preloaded with splitter, pigtail and adapter,which sold seperately
- Easy to maintain and install
- Free sample is available
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Shipping cost not included.
- A sample is free of charge, but shipping fee is for your account.
The 16 ports fiber splitter distribution box is designed for direct,branch and terminal connection in optical systems. It is great to connect indoor cable to optical communication equipment, and also enables the junction of distribution cable and drop cables. The unit can serves as both termination and splice point for optical fibre cable in indoor environments. The wall mount enclosure integrates splicing, splitting, termination, fiber storages, making it ideal for installation on each floor of small buildings in FTTH/FTTB applications.
This fiber splitter distribution box features 4 cable entry points and 16 output ports, supporting up to 18 cores splices and a maximum 1×16 PLC splitting configuration. It is of high-quality plastics provides protection for splices and terminations; 4 open inlets support mid-span entry without breaking the optical cable; dual-layer design is clear separation for fusion splicing , termination, splitting and cable management.
This 16 ports fiber enclosure suits indoor& outdoor environments for wall & pole mount installation.
Features:
. High-density ABS plastics or ABS+PC, UV/shock resistance
. Large space for cable storage and fiber routing
. Flip design for splice tray providing easy installation
. Screw type cover keeps splice area from dust
. Small size taking up minimal wall space
Technical parameter:
. Fiber radius of curvature: :≥30mm
. Additional loss：≤0.01dB
. Working Temperature: – 10℃ + 70℃
. Side pressure : ≥2000N / 10 cm
. Impact resistance：≥20N.m
Specifications:
| Size(mm) | 231*152*59 |
| Weight(kg) | 0.75 |
| Cable inlet/outlet | 4/16 |
| Cable diameter (mm) | ≤ Φ12 |
| Max splice capacity | 18 cores (single) |
| Suitable adapter | 16 SC simplex without lug |
| Lead time | 5 days for 100pcs, 20 days for 300pcs |
| MOQ | 100 pcs |
