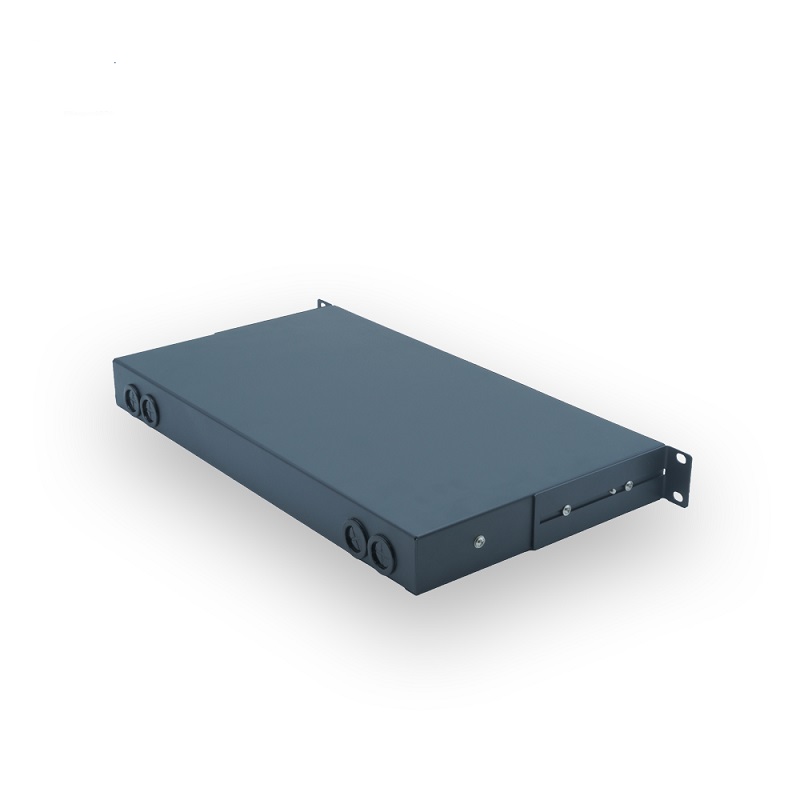

12 Port Fiber Patch Panel With 12 Adapter Ports, 12 Splices

The 12 port sliding fiber patch panel is suitable to configure  SC, LC adapter on the front, and also is available to pre-loaded with 12 strand singlemode or multimode pigtail cable as customer need.  The steel unit is part of  fiber optic connectivity solutions is that designed for realizing and the connection between external optical cables and pigtail and; inside includes a 24F splice trays and cable routing spool for splicing and surplus optical fibers storage. The fiber distribution panel provides integrated splice trays and adapter plates for fiber termination and cable management, it is applicable in the branch and terminal connection of optical cable and usually installed on the 19″ or 23″ rack of the server cabinet.

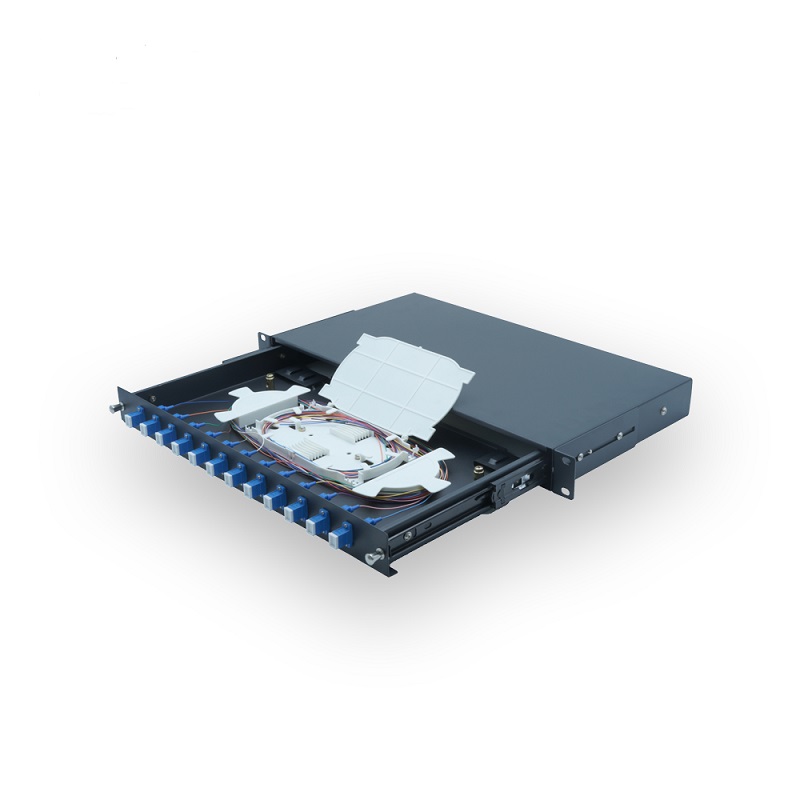

This 12 port rack-mounted fiber patch panel is available to be pre-terminated various adapter (like sc and lc in simplex or duplex) and 12 or 24 strand pigtail with single-mode or multimode optical cable. It is of sliding structure, so the splice tray can be easily pulled out for simple fiber installation and easy maintenance. The cable enters from the rear of the rack-mounted panel, while the fiber optic patch cords are routed out from the front through the adapter panel.

Features:

. The body is made of high quality cold-rolled steel, and electrostatic spraying in the surface
. Configure with cable fixed device, splice tray and thread ring
. Overlying splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety.
. Internal splice tray is made of high strength engineering plastics.
. Inlets and outlets are sealed with oil resistant nitrile rubber

Technical index:

optical fiber winding radius: ≥40mm

extra loss of fiber tray: none

fiber length left in tray:≥1.6m

working temperature: – 40⁰C ~ + 60⁰C

lateral pressure-resistance: 500N

shock-resistance：750N
