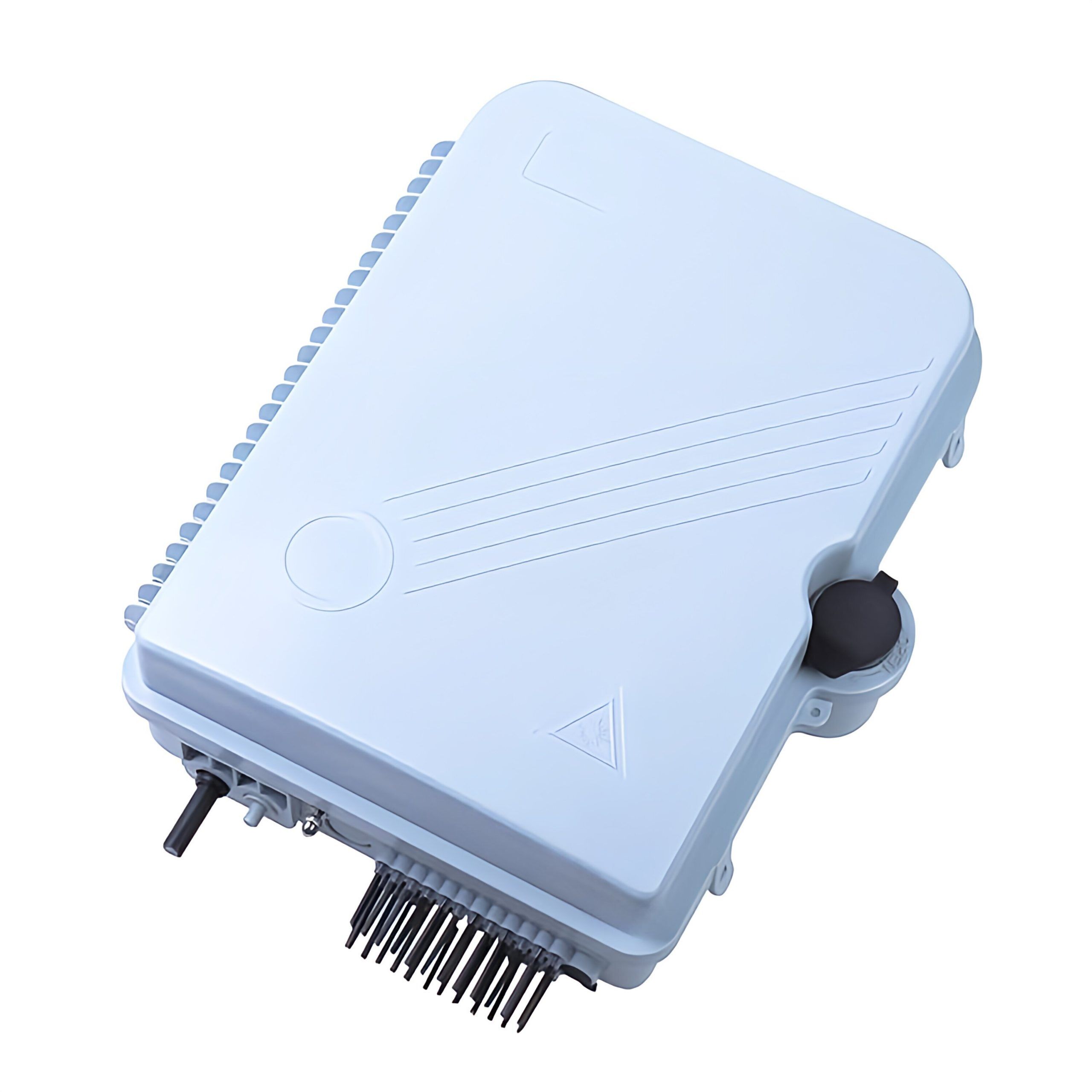

This model of indoor/outdoor fiber distribution box provides a protected termination point for feeder cable to connect with drop cable in FTTH and FTTx communication networks. It integrates optical fibre splicing, splitting, distribution, storage and cable connection in the wall mounting fiber enclosure. It is ideal for corridor and other places needing FTTH,FTTB network connection.

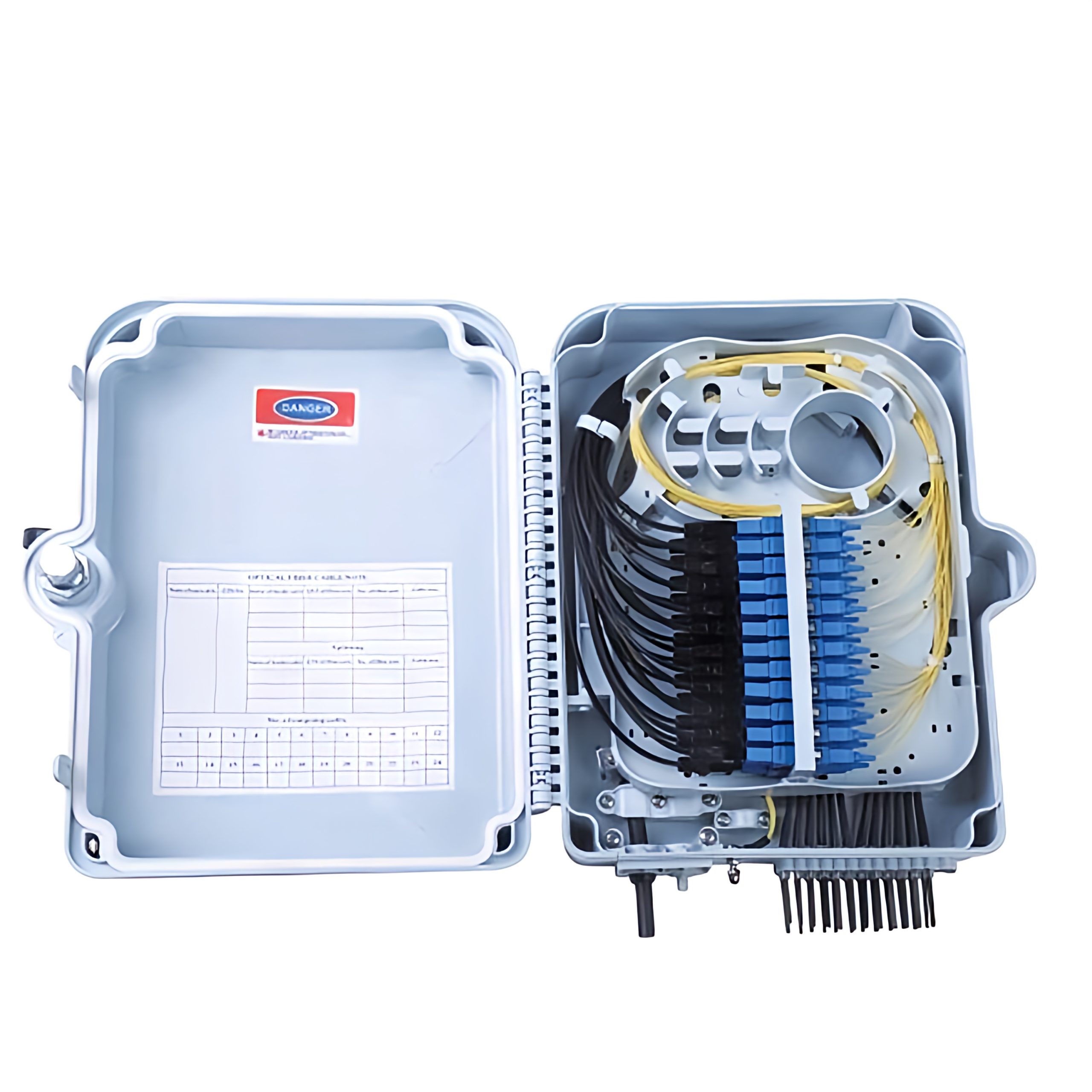

The optical cable distribution box is capable of housing 24 sc or lc adaptors, mini type plc splitter and with IP65 rating and anti-theft lock design. It can accommodate two incoming cables and 24 drop cable, and we can use this box to give protection for the fiber cable in indoor and outdoor environments.
Features：
.High-density ABS+PC, UV/shock/water resistance
. Enough space for cable storage and fiber routingÂ

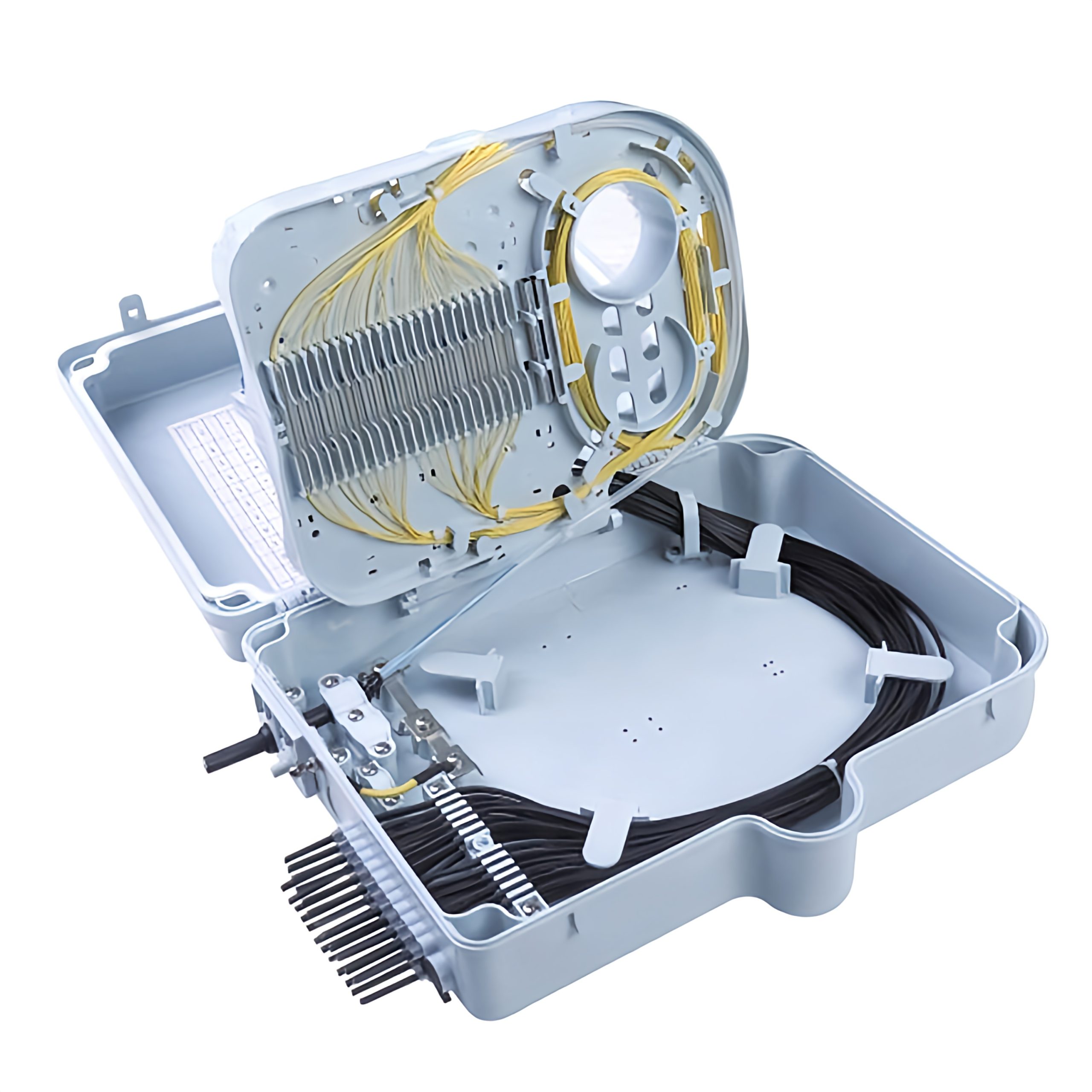

. Flip design for splice tray providing easy installation
. Cable port is rubber sealed, dust-proof
. Wall mounting or pole mounting
Specification:
| Size (mm) | 317*237*101 |
| Â Weight (kg) | 1.5 |
| Cable inlet/outlet | Â 2/24 |
| Max splitting | 1:16 |
| Max splice capacity | Â 24 core(single) |
| Suitable adapter | SC, LC |
| Environment Temperature | -40℃~+75℃ |
| MOQ | 100 pcs |
Our Services
Fast Delivery
Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.
Guaranty
All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
Free Sample
If you are interested in our product, we can offer a Free Sample for your quality test.
