SC and LC Ports in Fiber Termination Boxes: Mastering for Optimal Performance

SC and LC ports are important in Fiber Optic Termination Boxes. These connectors help send data smoothly by lowering signal loss. SC connectors have less than 0.3 dB insertion loss. They also have return loss over 50 dB, keeping networks stable. They work well with single-mode and multi-mode fibers. LC connectors are made for crowded setups. They have even lower insertion loss, under 0.2 dB. Their return loss is above 55 dB. Both follow TIA/EIA 568B.3 rules for good performance. Knowing these ports helps make fiber networks work their best.

Key Takeaways

• SC ports are tough and dependable, great for offices and outdoor areas.

• LC ports are small and work well, ideal for crowded places like data centers.

• Cleaning and checking connections often helps SC and LC ports work properly.

• Pick the right port based on your network; SC for durability and LC for saving space.

• Preparing for upgrades helps your fiber network handle more use later.

Overview of SC and LC Ports in Fiber Optic Termination Boxes

SC Ports: Definition and Characteristics

SC ports, short for Subscriber Connectors, are strong and easy to use. They have a push-pull design, making setup and maintenance simple. Their tough build keeps connections steady, lowering signal loss in networks. SC connectors usually have insertion loss between 0.2 and 0.4 dB. This helps keep signals strong during data transfer. They also provide return loss around 35 to 40 dB, ensuring good signal quality.

SC ports work with both single-mode and multimode fibers, making them flexible for many uses. Their design fits well in crowded setups like business networks and telecom systems. SC ports are especially helpful in Fiber Optic Termination Boxes. They connect optical devices and fiber cables smoothly.

Tip: SC connectors with angled physical contact (APC) can reach return loss of 60 dB or more. This makes them great for top-quality signal needs.

LC Ports: Definition and Characteristics

LC ports, or Lucent Connectors, are made for tight and crowded spaces. Their small size saves space in places like data centers and telecom hubs. LC connectors also use a push-pull latch, making them easy to install and care for. They perform very well, with insertion loss between 0.1 and 0.3 dB. This keeps signals clear, even in busy networks.

LC ports also have high return loss, often over 50 dB. This improves signal quality and cuts down interference. They work with both single-mode and multimode fibers, fitting many network needs. In Fiber Optic Termination Boxes, LC ports are great for dense cabling. They help send and share data efficiently.

Note: LC connectors are popular in data centers because they save space and work reliably, as shown in industry studies.

Comparing SC and LC Ports: Key Differences

SC and LC ports differ in size, performance, and use. SC connectors are bigger and stronger, while LC connectors are smaller and fit tight spaces. SC ports usually have insertion loss between 0.2 and 0.4 dB. LC ports have lower insertion loss, between 0.1 and 0.3 dB.

Return loss is also different. SC connectors give return loss of 35 to 40 dB. LC connectors offer higher return loss, often over 50 dB. For the best signal quality, both SC and LC connectors with APC polishing can reach return loss of 60 dB or more.

Here’s a table comparing their performance:

Metric	LC Connectors	SC Connectors
Typical Insertion Loss	0.1 – 0.3 dB	0.2 – 0.4 dB
Typical Return Loss	≥ 45 dB	~35 – 40 dB
Return Loss (APC)	≥ 60 dB	≥ 60 dB

When picking SC or LC ports for your Fiber Optic Termination Box, think about your network’s needs. SC ports are best for strong connections in business setups. LC ports are better for tight spaces like data centers.

Advantages of SC Ports in Fiber Optic Termination Boxes

SC ports have many benefits for fiber optic networks. Their strong build makes them last long, even in tough conditions. They keep connections steady, lowering the chance of signal problems. This makes them great for jobs needing reliable performance.

The push-pull design makes SC ports easy to use. You don’t need special tools to connect or remove them. This saves time and effort, especially in big setups like business networks or telecom systems.

SC ports work with both single-mode and multimode fibers. This gives you options when planning your network. Whether for long-distance or fast local connections, SC ports can do the job. They fit easily into your Fiber Optic Termination Box.

SC ports also provide excellent signal quality. They have low insertion loss, so signals stay strong. They also offer good return loss for clear data transfer. For the best signal, SC ports with angled physical contact (APC) are a smart choice.

Tip: Use SC ports in outdoor setups for strong, weather-proof connections.

Advantages of LC Ports in Fiber Optic Termination Boxes

LC ports are perfect for small, crowded spaces. Their tiny size lets you fit more connections in tight areas. If you run a data center or dense network, LC ports are ideal. They save space without losing performance.

The push-pull latch makes LC ports simple to handle. You can quickly connect or remove them, even in cramped spots. This design makes managing networks with lots of cables easier.

LC ports give great signal quality. Their low insertion loss keeps data clear and reliable. High return loss reduces interference, keeping your network strong. These features make LC ports great for fast, high-capacity networks.

LC ports are also very flexible. They work with both single-mode and multimode fibers. This makes them useful for many setups, from home networks to business systems.

Note: LC ports are popular in data centers because they save space and work well.

Practical Applications of SC and LC Ports

SC Ports in Fiber Optic Termination Boxes for Enterprise Use

SC ports are strong and dependable for business networks. Their tough design keeps connections steady, even in hard conditions. SC ports in Fiber Optic Termination Boxes link devices and cables easily. This makes them great for businesses needing reliable performance and less downtime.

SC ports work with single-mode and multimode fibers. This lets them handle long-distance and fast local networks. Their push-pull design makes setup quick, saving time in big projects. For outdoor use, SC ports resist weather, staying durable in bad conditions.

Tip: SC ports with angled physical contact (APC) polishing give better signals and less reflection.

LC Ports in High-Density Fiber Optic Termination Boxes

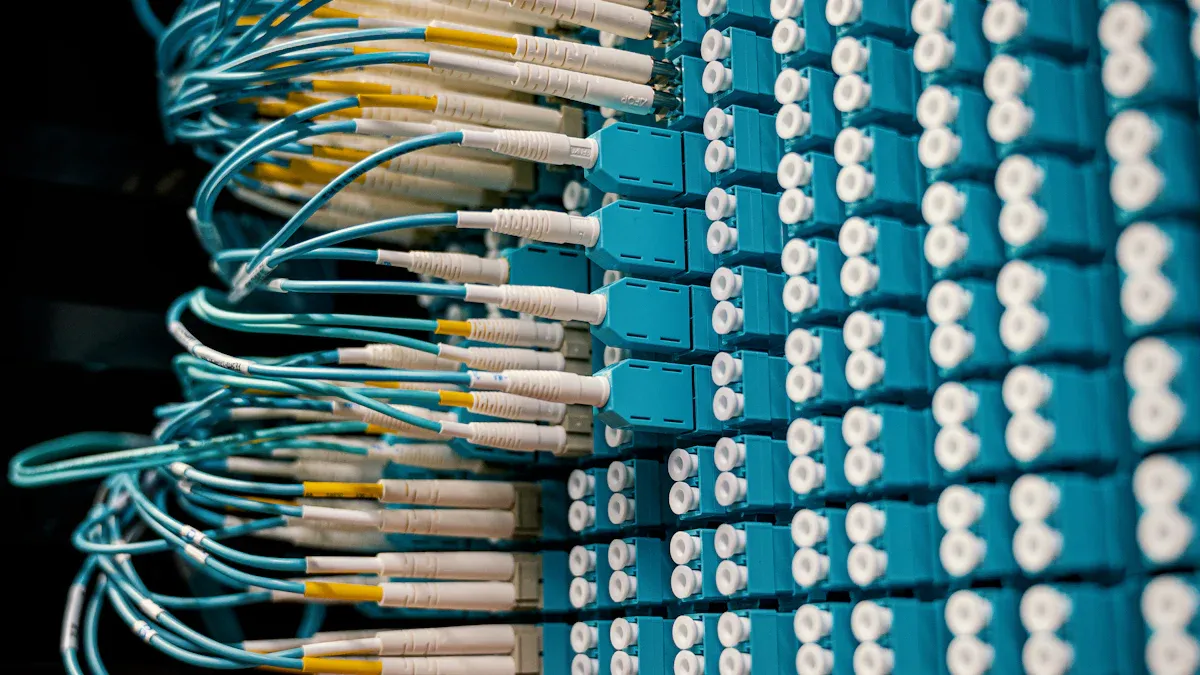

LC ports are perfect for crowded places like data centers. Their small size helps fit more ports without losing quality. This makes them a favorite for modern networks needing space-saving solutions.

Here’s how LC ports improve high-density Fiber Optic Termination Boxes:

Feature	Benefit
Low Connector Attenuation	Keeps signals clear and strong
High Return Loss	Reduces data loss and interference
Space Efficiency	Doubles port density for better use of space

LC ports shine in tight rack setups. For example:

Feature	Details
Rack Setup	Each rack has 18 nodes and 2 switches at the top.
Node Connections	Each node connects to both switches using dual-port adapters.
Switch Uplinks	Each switch has 12 uplinks to bigger Director switches.
Director Switch Count	There are 9 Director switches in total.
Network Speed	Uses Mellanox EDR InfiniBand with 100 Gb/s speed.
Adapter Type	Nodes use Mellanox ConnectX EDR dual-port adapters.

These features show how LC ports handle tight cabling and fast data transfer well.

Note: LC ports are key for topfiberbox solutions, giving great results in crowded setups.

Selecting the Right Port for Your Fiber Optic Termination Box

Pick SC or LC ports based on your network needs. SC ports are best for strong, stable connections in business setups. They work well outdoors and for long-distance communication. LC ports are better for crowded places like data centers. Their small size and high performance fit tight spaces perfectly.

For future planning, think about fiber optic demand in 2025. With more fiber-to-the-home (FTTH) and business networks, choosing the right port keeps your system ready for growth. Topfiberbox offers custom solutions to meet these needs, helping you stay ahead in fiber optics.

Optimizing SC and LC Ports for Fiber Optic Termination Box Performance

Best Practices for Installing SC and LC Ports

Installing SC and LC ports the right way ensures they work well. Follow these simple steps to keep your connections strong:

• Inspect the Ports and Cables: Look for dust or damage before starting. Clean them with a soft, lint-free cloth or a special fiber cleaning tool.

• Align the Connectors Correctly: Make sure the connectors fit properly into the ports. If they don’t line up, signals may weaken or parts could break.

• Avoid Excessive Force: Push the connectors in gently. Forcing them can harm the inside parts.

• Secure the Cables Properly: Use ties or clips to hold cables in place. This stops the connectors from being pulled or strained.

• Label the Connections: Add labels to make it easier to find connections later for repairs or checks.

Tip: Always pick good-quality connectors and cables to keep your network working well.

Maintenance Tips for SC and LC Ports

Taking care of SC and LC ports regularly keeps them working their best. Try these tips to maintain them:

• Clean the Ports Regularly: Dust can block signals. Use a cleaning kit to remove dirt often.

• Check for Wear and Tear: Look for worn-out or broken parts. Replace anything damaged right away.

• Monitor Signal Performance: Use tools to check if signals are strong and clear. This helps catch problems early.

• Avoid Overcrowding: Don’t let cables get tangled or packed too tightly. This protects the ports from damage.

• Store Spare Components Safely: Keep extra cables and connectors in a clean, dry spot. This makes sure they’re ready when needed.

Note: Regular care not only makes your Fiber Optic Termination Box last longer but also keeps your network running smoothly.

Troubleshooting SC and LC Port Issues

If SC or LC ports stop working, fixing them quickly saves time. Follow these steps to solve common problems:

• Check the Physical Connections: Make sure the connectors are plugged in tightly. Loose ones can cause weak signals.

• Inspect for Damage: Look for cracks or scratches on the parts. Replace anything broken.

• Clean the Ports and Connectors: Dirt can block signals. Clean everything carefully and try again.

• Use Debugging Commands: For SC ports, commands like debug pagp event and debug pagp packet can help find problems.

• Analyze Debug Outputs: Look at the debug results to see how signals are sent and received. This can show what’s wrong.

• Verify Configuration: Use commands like show run interface and show etherchannel summary to check if settings are correct.

Pro Tip: Write down the steps you take to fix issues. This helps you solve similar problems faster next time.

Preparing Fiber Optic Termination Boxes for Future Upgrades

Getting your Fiber Optic Termination Box ready for upgrades keeps your network strong. As technology grows fast, planning now saves time and money later. Here are simple ways to prepare your termination box for the future.

Check Your Fiber Network Often

Look at your fiber optic network regularly to find problems. These checks show weak spots, old parts, or areas needing fixes. Knowing your network’s condition helps you plan better upgrades. Use tools to test signal strength and check cables for damage.

Tip: Inspect your fiber network at least once a year to avoid issues.

Upgrade for Faster Speeds

Think about upgrading your network to handle faster speeds. Changes like mid-split and high-split upgrades make your network quicker and stronger. These updates help with future needs like streaming, gaming, and cloud services.

Plan for More Bandwidth

Consider how your network will be used in 5–10 years. More devices mean more bandwidth is needed. Upgrading now ensures your Fiber Optic Termination Box can handle these changes. For example, LC ports in tight setups allow more connections without losing quality.

Work with Skilled Technicians

Upgrading can be tricky. Hiring skilled technicians makes adding new parts easier. They reduce downtime and help pick the best options for your setup. Their knowledge also prevents mistakes during installation.

Pick Budget-Friendly Options

Upgrading doesn’t have to cost too much. Many affordable options exist for different budgets. Start small by replacing old connectors or adding ports. Later, invest in bigger upgrades like PLC splitters or expanding your network.

Here’s a quick summary of how to prepare your Fiber Optic Termination Box for the future:

Aspect	Description
Regular Fiber Checks	Helps find weak spots and plan for future needs.
Faster Network Upgrades	Mid-split and high-split upgrades boost speed and capacity.
Future Bandwidth Planning	Prepares networks for growing device and data demands.
Expert Help	Skilled technicians ensure smooth upgrades with less downtime.
Affordable Solutions	Budget-friendly upgrades maximize value while keeping costs low.

By following these tips, your Fiber Optic Termination Box will stay ready for the future. Planning ahead keeps your network running well as technology changes.

SC and LC ports have different benefits for Fiber Termination Boxes. SC connectors are strong and simple to use, perfect for telecom jobs. LC connectors are small and fit well in crowded places like data centers. Installing them correctly and keeping them clean helps them last longer and work better.

Fiber optic technology is growing fast. Smart cities and IoT need faster and stronger networks. New designs will make connections even better. As cities grow, SC and LC ports will stay important for smooth and reliable connections.

FAQ

---

What is the difference between SC and LC ports?

SC ports are bigger and stronger, great for outdoor or business use. LC ports are smaller and save space in crowded places like data centers. Both work well but fit different needs based on size and setup.

How do I clean SC and LC ports?

Use a cleaning kit or soft wipes for fiber optics. Carefully clean the connectors and ports to remove dirt or dust. Don’t push too hard to avoid breaking them. Cleaning often keeps signals clear and stops network problems.

Can SC and LC ports work with both single-mode and multimode fibers?

Yes, SC and LC ports work with both single-mode and multimode fibers. This makes them useful for many networks, like long-distance or fast local connections.

How do I choose between SC and LC ports for my network?

Think about your network’s space and performance needs. Pick SC ports for strong, steady connections in outdoor or business setups. Choose LC ports for tight spaces like data centers or small termination boxes.

Are SC and LC ports future-proof for network upgrades?

Yes, SC and LC ports meet today’s fiber optic standards. They can handle more bandwidth as networks grow. Their design makes them a smart choice for future upgrades.
