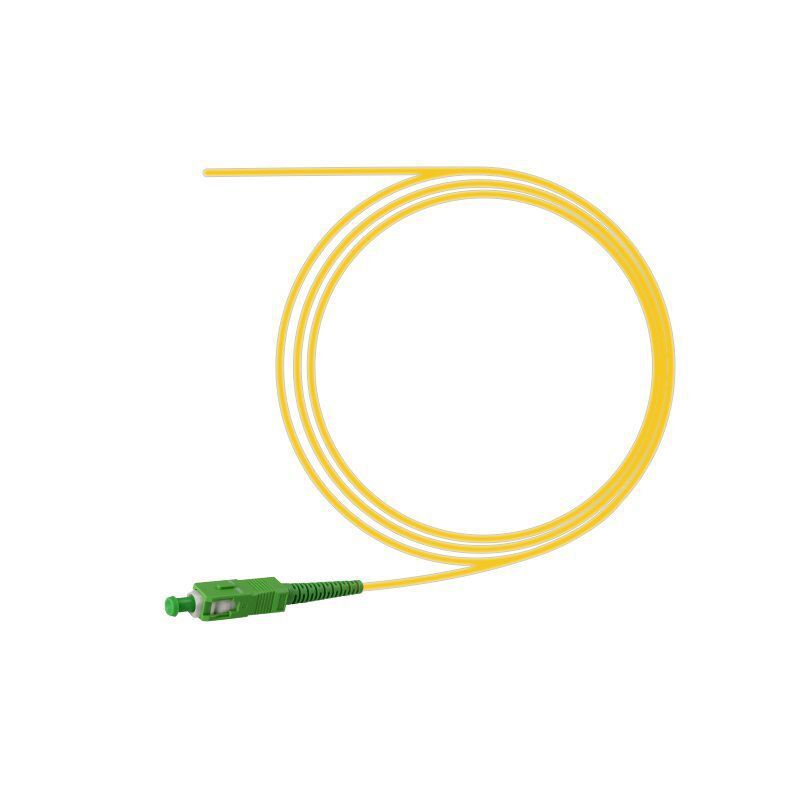

This SC pigtail is a single mode cable with high-grade SC APC fiber optic connector on one end, another end unterminated. It can configure multimode fiber as well for the specific application. This series of SC pigtail Assemblies are available in UPC, APC polish with simplex or duplex fiber optic cable versions. Cable length, cable diameter, and jacket are optional. The typical type of fiber pigtail most uses 0.9mm cable, because it is especially suitable for high-density splice application.
Fiber Pigtail is utilized to achieve accurate mounting for precision alignment of fiber optical components. Fiber optic pigtail provides a fast way to link communication devices, mostly used to terminate fiber optic cable by fusion or mechanical splicing. And the pigtails are usually found in ODF, fiber distribution box and terminal box, etc. They are widely used in CATV, FTTH/FTTX, LAN/WAN network, and more.
Specification:
| Connector Type | SC | Cable diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Type | SM, MM | Fiber Count | Simplex/Duplex |
| Polish Type | UPC/APC | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Return loss | ≥50dB |
| Tensile Strength | >100N | Durability(Times) | >1000 |
| Minimum Bend Radius | 30mm | Operating temperature | -40°C~80°C |
| Fiber Grade | G652D, G657A, G.651 | Cable Length | 1m/2m/3m/5m… |
