Fiber optics drive major changes in the oil & gas industry as 2025 approaches. The oil and gas sector sees rapid adoption, with the market projected to reach USD 630.9 million. Operators use distributed sensing and real-time information to monitor pipelines, wells, and facilities. Real-time monitoring helps detect leaks, flow anomalies, and safety hazards quickly. Specialty fiber optic products withstand extreme heat, pressure, and chemicals, ensuring durability in harsh environments. The industry relies on these solutions for compliance, reduced operational costs, and improved safety.
Metric/Aspect | Value/Description |
---|---|

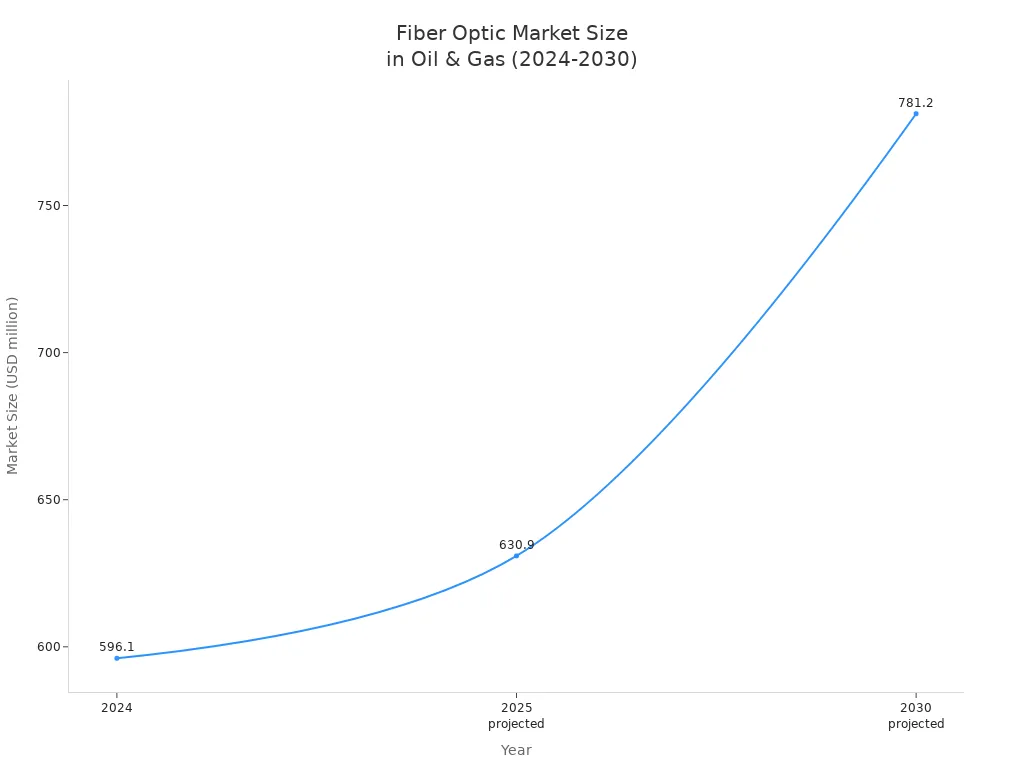

Market Size (2024) | USD 596.1 million |
Market Size (2025 projected) | USD 630.9 million |
CAGR (2025-2030) | 4.4% |
Market Size (2030 projected) | USD 781.2 million |
Regional Market Share (North America, 2024) | Approximately 39% |
Leading Segment (2024) | Distributed Temperature Sensing (DTS) with 42.8% revenue share |
Growing Segment | Distributed Acoustic Sensing (DAS) expected to register significant growth |
Key Adoption Drivers | Real-time monitoring, operational efficiency, reduced on-site monitoring, improved safety, cost-effectiveness |
Notable Companies | Bandweaver, Brugg Kable AG, Halliburton, Luna Innovations Inc., OFS Fitel, LLC, Omnisens SA, SLB, Yokogawa Electric Corporation |
Recent Developments | OFS expanded manufacturing for ultra-high fiber count cables; Yokogawa collaboration for digital transformation in refining |

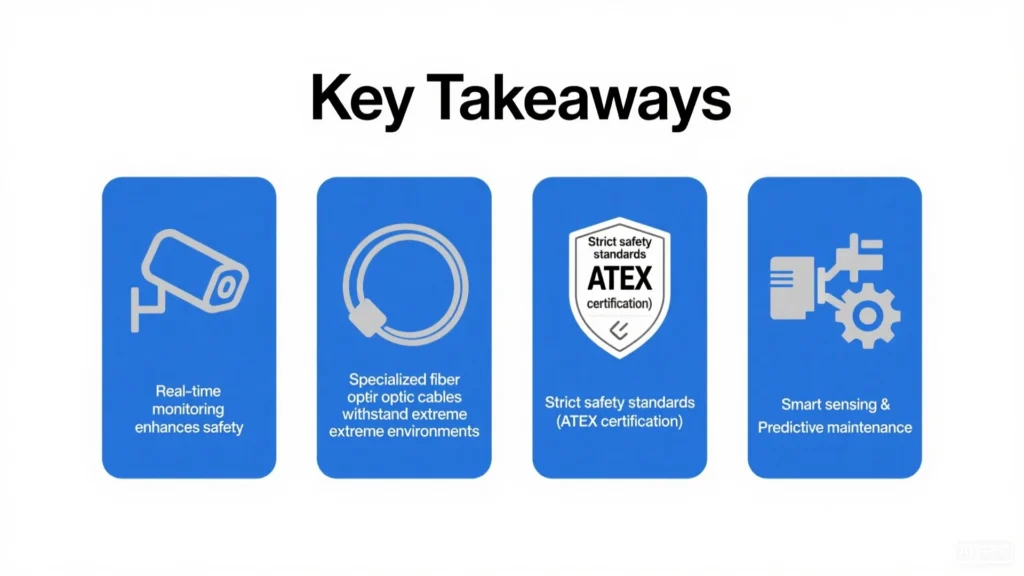

Key Takeaways
Fiber optic technology enables real-time monitoring of oil and gas infrastructure, improving safety and reducing operational costs.
Specialized fiber optic cables and sensors withstand extreme heat, pressure, chemicals, and harsh environments like subsea and deepwater locations.
Strict safety standards and certifications ensure fiber optic equipment operates safely in hazardous oil and gas areas.
Smart sensing and miniaturized explosion-proof components enhance monitoring accuracy and asset management in oil and gas operations.
Predictive maintenance using fiber optic data and AI helps detect problems early, preventing failures and improving production efficiency.
Oil & Gas Fiber Optic Basics
Technology Principles & Industry Benefits
Fiber optics play a crucial role in the oil & gas industry by enabling advanced sensing and communication across infrastructure. The technology relies on the movement of light through optical fibers, which use total internal reflection due to a higher refractive index in the core compared to the cladding. This principle allows for efficient data acquisition and transmission, even in deepwater and subsea environments.
Optical fibers, often made from fused silica, can be single-mode, multimode, or specialized types like photonic crystal fibers.
Fiber-optic sensing methods include spectral, phase, and polarization-based techniques. These methods measure temperature, pressure, strain, vibration, and acoustics throughout oil and gas infrastructure.
Fiber Bragg gratings (FBG) are widely used for pressure and temperature sensing, with coatings that enhance performance in harsh conditions.
Specialized polymer coatings protect optical fibers in high-pressure, high-temperature subsea and deepwater environments.
Oil and gas companies have reported up to a 15% increase in production rates and a 20% reduction in operational costs after deploying distributed sensing systems. Real-time data acquisition supports precise production management, improves pipeline integrity, and enhances safety. These benefits drive the adoption of fiber optics across the industry, especially for monitoring systems in challenging subsea locations.
Note: Distributed sensing enables continuous, real-time monitoring along pipelines and wells, providing critical insights for optimizing oil and gas production.
Key Components Overview
A robust fiber optic system for oil and gas infrastructure includes several specialized components designed for extreme environments. The table below summarizes the main elements:
Component | Description | Purpose/Function |
---|---|---|
Armored cables (e.g., Fiber in Steel Tube) for durability in high pressure, temperature, and corrosion | Protect optical fibers and ensure long-term reliability in subsea and deepwater infrastructure | |
Fiber Optic Sensors | Integrated sensors for temperature, pressure, and equipment status | Enable distributed sensing and real-time data acquisition |
Optical Connectors | Dry-mate and wet-mate connectors for topside and subsea connections | Maintain reliable links in harsh subsea environments |
Fiber Optic Penetrators | Sealing devices for pressure containment between chambers | Prevent flooding and maintain sealing integrity in subsea systems |
Splicing & Optimization | Custom splicing and fabrication services | Support custom infrastructure and end-to-end fiber solution integration |
Subsea fiber optics and end-to-end fiber solution designs ensure continuous connectivity from downhole to topside, supporting the entire oil and gas infrastructure. These systems withstand the unique challenges of subsea, deepwater, and hazardous oil and gas environments, making them essential for modern distributed sensing and data acquisition.

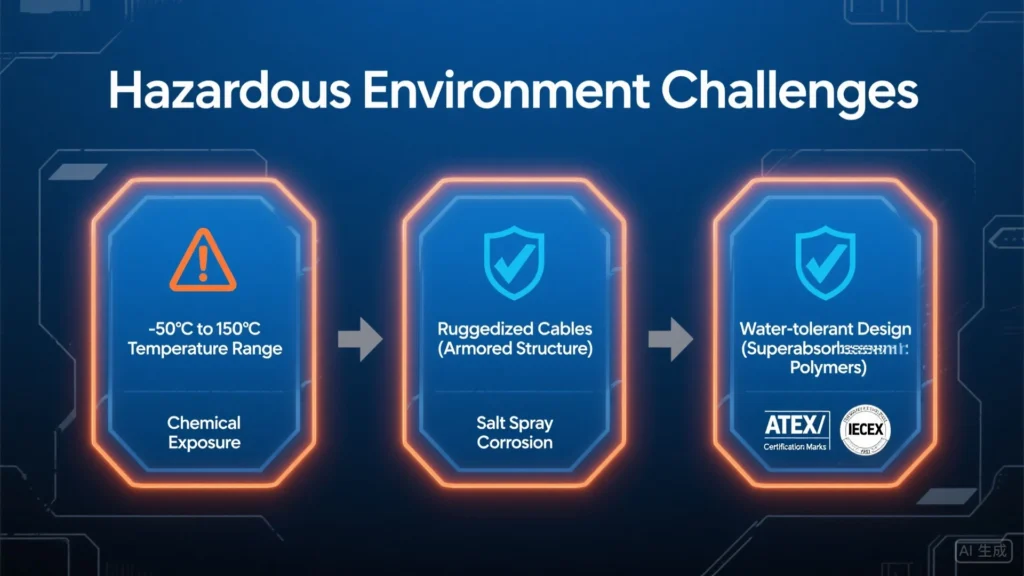

Hazardous Environment Challenges
Environmental Stressors in Oil & Gas
Oil and gas operations face some of the harshest conditions in any industry. Fiber-optic sensing and monitoring systems must withstand these challenges to ensure reliable performance and safety. Key environmental stressors include:
Extreme temperature swings, from -50°C to over 150°C, can impact cable integrity and sensing accuracy.
Chemical exposure from fuels, oils, and cleaning agents threatens the durability of cables and connectors.
High humidity, saltwater, and corrosive substances cause corrosion, especially in offshore infrastructure.
Vibrations, shocks, and mechanical impacts occur frequently during drilling and production activities.
Ruggedized cables and hermetically sealed connectors help prevent moisture and contaminants from entering sensitive components.
Water-tolerant cables use superabsorbent polymers and aramid yarn to resist moisture intrusion.
Fiberglass or metal-braided jackets provide abrasion resistance and protect against rodents.
Many fiber optic systems in oil and gas fields use commercial versions of military-grade products. These systems feature tight-buffered cables, pressure-extruded jackets, and materials like PVC or polyurethane for cold flexibility and impact protection. Genderless connectors allow for quick deployment and resist fluid immersion, thermal shock, and vibration. Distributed temperature sensing and distributed vibration sensing technologies enable permanent monitoring of infrastructure, supporting early leak detection and production optimization.
Note: Reliable sensing and monitoring systems help operators monitor infrastructure health, reduce downtime, and improve production efficiency.
Compliance & Certification Requirements
Strict compliance and certification standards govern fiber optic equipment in hazardous oil and gas environments. These standards ensure that monitoring systems and sensing devices operate safely in explosive atmospheres. Key requirements include:
International standards such as ATEX (EU), IECEx (global), and IEC 60079-28 address optical radiation and ignition risks.
Equipment must meet ingress protection ratings like IP66 or NEMA 4X to guard against dust, water, and chemicals.
Certifications such as UL 698A, NFPA 70 (NEC), and SIL (IEC 61508/61511) confirm explosion-proof and intrinsically safe designs.
Corrosion-resistant materials, including stainless steel or special coatings, are essential for offshore and refinery infrastructure.
Heavy-duty locking mechanisms and secure access prevent unauthorized tampering.
Regular inspection and maintenance, typically every 6–12 months, help maintain compliance and performance.
Equipment protection levels (EPL) and hazardous location classifications (Zones 0, 1, 2) must be observed to match the risk level.
A table of key standards and their focus:
Standard/Certification | Focus Area |
---|---|
ATEX, IECEx | Explosive atmospheres, hazardous zones |
IEC 60079-28 | Optical radiation in explosive environments |
UL 698A, NFPA 70 | Explosion-proof, intrinsically safe designs |
IEC 60529, NEMA 250 | Ingress protection (IP/NEMA ratings) |
SIL (IEC 61508/61511) | Functional safety, system reliability |
Certified fiber optic equipment supports safe oil and gas production, leak detection, and infrastructure monitoring. Adhering to these standards protects lives, assets, and the environment.
Product Design & Applications
Durable Materials & Explosion-Proof Enclosures
Fiber optic enclosures in oil and gas environments must withstand extreme conditions. Manufacturers use hermetic sealing with epoxy strain relief extensions and standard aluminum housings to achieve explosion-proof performance. These enclosures comply with IEC/EN 60079 series and ATEX certifications, which guarantee safety in hazardous locations.
High-strength aluminum alloys create lightweight, durable enclosures.
Specialized coatings add corrosion resistance and fire-retardant properties.
Improved sealing mechanisms and corrosion-resistant components extend the lifespan of optical fibers in harsh environments.
Explosion-proof enclosures limit ignition sources and contain any potential explosions. They meet standards such as Class I, Division 2, and Zone 1-IIC. Temperature ratings like T5 and T6 ensure surfaces do not reach levels that could ignite flammable gases. Connectors feature non-arcing points and locking mechanisms, which prevent accidental disconnection and sparking. These design features protect oil and gas infrastructure and support safe production.
Upstream Exploration Solutions
Upstream oil and gas exploration relies on advanced fiber optic solutions. Distributed Temperature Sensing (DTS) and Distributed Acoustic Sensing (DAS) technologies provide real-time monitoring of well integrity, pipeline surveillance, and reservoir conditions. DAS technology collects acoustic data from optical fibers in wells, supporting production flow monitoring and seismic interpretation.
Pipeline monitoring detects leaks and integrity issues using signal loss measurement.
Well logging measures optical signals in wellbores to assess geological formations and productivity.
Seismic sensing uses fiber optic sensors for subsurface mapping.
Fiber optic monitoring systems deliver continuous pressure and temperature data at multiple points in the wellbore. These systems withstand harsh downhole activities and enable remote data acquisition, reducing physical intervention and improving safety. Integration with SCADA systems allows real-time control and monitoring of production zones, optimizing oil and gas production.
Midstream Pipeline Monitoring
Midstream operations use fiber optic sensing to maintain pipeline integrity. Distributed Acoustic Sensing (DAS) technology enables continuous, real-time monitoring along the entire cable length.
Operators integrate fiber optic systems with SCADA for real-time data acquisition.
Advanced interrogator units enhance measurement fidelity and flexibility.
Federal risk modeling guidelines use accurate, real-time data from fiber optic sensors for risk assessment.
Real-time fiber optic monitoring detects leaks, locates threats, and classifies pipeline incidents faster than traditional methods. Continuous data collection enables predictive maintenance, preventing failures and reducing downtime. Internal deployment of optical fibers within pipelines increases sensitivity and improves leak detection, protecting oil and gas infrastructure and supporting safe production.
Downstream Refinery Systems
Downstream refinery operations depend on fiber optic networks for process control and safety. Optical talk sets provide reliable voice communication in hazardous environments, supporting maintenance coordination and emergency response.
Fiber optic systems enable robust, secure communication networks for process control networks (PCN) and safety instrumented systems. These networks support real-time monitoring of refinery processes and maintain operational integrity.
Fiber optic networks offer high data transmission rates and immunity to electromagnetic interference.
Integrated sensor bundles monitor temperature, pressure, and strain in critical machinery.
Predictive maintenance reduces downtime and improves operational reliability.
Fiber optic connectivity supports cloud-based operations and real-time collaboration, enhancing production efficiency and safety in oil and gas refineries.
Installation & Maintenance Guidelines
Hazardous Area Installation Best Practices
Fiber optic systems in oil and gas environments require careful installation to ensure safety and reliability. Technicians face challenges such as high pressure, extreme temperatures, corrosive chemicals, moisture, vibration, and salt water. These conditions can damage cables and connectors. A major safety concern is the risk of fiber optics acting as ignition sources. Research shows that light sources with radiation power above 35 mW can ignite combustible atmospheres. The IEC 60079-28 standard sets safe limits and testing methods to prevent ignition.
To overcome these challenges, installers use hardened industrial-grade components that resist environmental stress. They follow strict explosion protection standards and customize installation practices for each hazardous location. Key steps include:
Select cables and connectors rated for high temperature and corrosion resistance.
Use hermetically sealed enclosures to protect sensitive parts from moisture and chemicals.
Test light source power levels to ensure compliance with safety standards.
Secure cables with vibration-resistant mounts to prevent mechanical damage.
Schedule regular inspections to maintain system integrity.
Tip: Always verify certification labels and documentation before installing fiber optic equipment in hazardous areas.
Predictive Maintenance for Fiber Systems
Permanent monitoring with fiber optic technology helps operators detect problems early and reduce downtime. Distributed Fiber Optic Sensor (DFOS) technology uses optical fibers as continuous sensors. These sensors measure temperature, strain, and pressure along pipelines. DFOS provides real-time data over long distances, which is important for buried or remote segments.
Operators integrate DFOS data into digital twin models. These virtual replicas allow them to simulate repairs and optimize maintenance before failures occur. The combination of IoT and AI with fiber optic predictive maintenance systems improves remote monitoring, abnormal condition alerts, and maintenance scheduling.
The table below shows key indicators monitored by predictive maintenance systems:
Key Indicator | Description and Role |
---|---|
Pressure | Detects leaks and maintains pipeline integrity. |
Temperature | Identifies abnormal thermal patterns that signal faults. |
Strain | Finds structural stress or deformation in pipelines. |
Flow Patterns | Optimizes network operation and predicts failure points. |
Acoustic Emissions | Detects leaks and equipment faults through sound analysis. |
Vibration | Identifies mechanical issues or early signs of equipment failure. |
AI-driven monitoring systems analyze these indicators to detect leaks, faults, and abnormalities. Machine learning algorithms process sensor data continuously, enabling proactive maintenance and improving safety.
2025 Trends in Oil & Gas Fiber Optics
Smart Sensing Integration
Oil and gas operators continue to adopt smart sensing integration for improved asset management and safety. Distributed fiber-optic sensing uses optical fibers as continuous sensors along pipelines and thermal networks. This technology enables real-time monitoring of temperature, strain, and acoustic signals with high spatial resolution. Operators detect leaks, overheating, and intrusions quickly, reducing downtime and preventing accidents.
Advanced systems use laser pulse generation and backscatter analysis, such as Raman and Brillouin scattering. Embedded processors filter data and generate alarms instantly. These systems lower hardware and maintenance costs by minimizing active field components. Networked communication interfaces, including TCP/IP and Modbus, allow remote access and automated reporting. Integration with SCADA and cloud platforms supports modular expansion and monitoring of multiple assets.
Smart sensor integration in lighting solutions also improves safety and energy efficiency. Facilities use remote monitoring and adaptive illumination based on occupancy and ambient light. Data analytics support predictive maintenance, complementing fiber-optic sensing for comprehensive safety in hazardous environments.
Note: Continuous monitoring with smart sensors meets strict safety regulations and optimizes asset management in oil and gas operations.
Miniaturized Explosion-Proof Components
Miniaturized explosion-proof fiber optic components represent a major advancement for hazardous oil and gas environments. Optical fiber sensors are intrinsically safe because they do not use electrical signals, eliminating spark hazards. Recent developments include compact fiber optic temperature sensors with complete electrical isolation. These sensors maintain pressure integrity and provide accurate internal temperature monitoring in high-voltage and SF6 gas compartments.
Manufacturers have improved sensor accuracy and stability, expanding their use in offshore and harsh environments. Cost-effective manufacturing processes make these devices more accessible. Integration with other sensors creates comprehensive solutions for asset health assessment. Magneto-optical sensors detect electromagnetic field variations, enhancing safety in flammable material operations.
The table below highlights significant trends for 2025:
Aspect | Evidence Supporting 2025 Trends in Fiber Optic Technology for Oil & Gas |
---|---|
High-pressure sensor market projected to reach $1.1 billion by 2033, with 8% CAGR. | |
Sector Share | Oil & Gas holds about 40% of the fiber optic high-pressure sensor market. |
Technological Advancements | Miniaturization, improved sensitivity, wireless capabilities, and AI/ML integration drive innovation. |
Applications | Used in drilling, production, pipeline monitoring, and harsh environments. |
Regulatory Impact | Safety regulations increase demand for compliant, high-accuracy sensors. |
Emerging Trends | Smart sensors with embedded intelligence and wireless data transmission enhance efficiency. |
Tip: Operators should consider miniaturized, explosion-proof fiber optic sensors for new installations to improve safety and reliability.

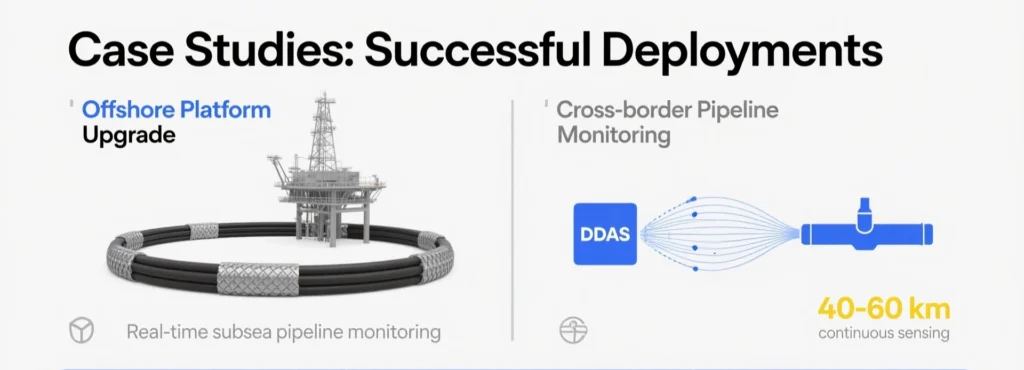

Case Studies: Successful Deployments
Offshore Platform Fiber Network Upgrade (2024)
In 2024, an offshore platform in a deepwater region completed a major fiber network upgrade. Engineers installed advanced fiber optic cables across the entire subsea infrastructure. The new system connected control rooms, production wells, and remote monitoring stations.
Operators selected cables designed for high pressure and corrosion resistance. These cables provided reliable communication between topside facilities and subsea equipment. The upgrade included distributed sensing technology, which allowed real-time monitoring of temperature, strain, and vibration along the subsea pipelines.
Technicians used explosion-proof enclosures to protect fiber connections in hazardous zones. The platform’s subsea sensors detected leaks and abnormal vibrations quickly, improving safety and reducing downtime.
The project demonstrated that robust fiber optic networks can withstand harsh subsea and deepwater conditions. Operators reported faster response times to incidents and improved asset management.
The table below highlights key improvements:
Feature | Benefit |
---|---|
Distributed Sensing | Real-time data from subsea pipelines |
Ruggedized Cables | Enhanced durability in deepwater environments |
Smart Monitoring | Early detection of leaks and faults |
Explosion-Proof Design | Increased safety in hazardous areas |
Cross-Country Pipeline Monitoring Implementation
A recent cross-country pipeline project used fiber optic monitoring to enhance safety and efficiency. The system covered long distances, including remote subsea segments.
Operators achieved continuous, distributed sensing over 40-60 km without intermediate power supplies. Fiber optic cables measured temperature, strain, and vibrations with high local resolution.
Early leak detection became possible by monitoring temperature changes and leak sounds in subsea pipelines.
Strain sensors identified geohazards such as earthquakes and ground movement, allowing preventive actions.
The system detected third-party activities, reducing risks from unauthorized excavation near subsea infrastructure.
Advanced signal analysis algorithms reduced false alarms and improved detection accuracy.
Distributed fiber optic monitoring technology proved critical for intelligent identification of vibration signals in oil and gas pipelines. Operators used big data and AI models for event classification and threat assessment. The project emphasized the need to accelerate deployment of distributed optical fiber monitoring and enhance intelligent pipeline monitoring.
Operators learned that comprehensive, real-time fiber optic monitoring provides reliable pipeline integrity management, especially in challenging subsea environments.
Fiber optic technology transforms oil and gas operations by delivering real-time, accurate monitoring in hazardous environments. Durable cables and smart sensors withstand extreme temperatures, pressure, and chemicals, ensuring long-term reliability. Operators meet strict safety standards and detect leaks early, reducing downtime and environmental risks.
As industry trends move toward AI integration and remote monitoring, advanced fiber optic solutions will play a key role in safer, more efficient oil and gas production.
