9 In 9 Out Fiber Optic Splice Closure Splitter Type, 288 Splices

$79.20

1 oval port and 16 round ports, 12pcs 24F splice tray, Max 288 Fibers

Model：GJSM17-RS-A-SC64
Advanced internal structure design, protection level up to IP68
Suitable for bunchy & ribbon fibers
Enough space for wiring and storing fibers
Easy to open the closure without a special tool
A free sample is available

FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY

Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
Shipping cost not included.
A sample is free of charge, but shipping fee is for your account.

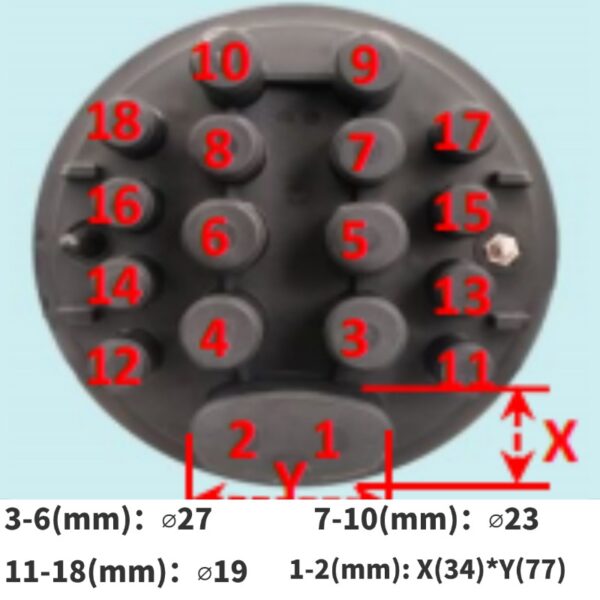

The vertical fiber splice enclosure is a dome closure that comes with a oval inlet and 16 round ports for outdoor optical cable in and out, which can hold max 288 cores joint. The shell of the fiber optic joint enclosure is made from excellent engineering plastics; It features lightweight, high mechanical strength, anti-aging, strong corrosion-resistance; Inside of the fiber optic cable junction box can accommodate max 12 pcs 24F splice trayes for managing splices and excess fibers. The fiber joint enclosure is with good sealing performance, protection up to IP68. The dome splice closure is used for direct and branch connection during optical fiber transmission and provides joint connection protection.

The vertical 288 cores fiber optic enclosure integrates the function of distribution, splice, splitting and storage of outdoor optical fiber cable, and can be used in aerial, duct, pole mounting, underground direct buried fiber optic cable projects. It allows to install 2ps of 1×32 blockless splitter to achieve optical signal splitting.

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Specification:

Size(mm)	Φ325*510	Product Type	Dome
Max capacity	288 cores(single fiber )	Tray capacity&splice tray	24cores/12pcs
Max splitting	1:16(4pcs), 1:32(2pcs)	Sealing type	Heat shrink
Cable diameter(mm)	Φ7～27	Entry&Exit	9 inlet/9 outlet
