Fiber Optic Termination BoxesFiber cable repair restores critical network reliability after incidents such as fishing, anchoring, or geological events. The choice between fusion splicing and mechanical repair fiber optic cable depends on performance needs. Fusion splicing, similar to welding, creates a continuous connection with minimal signal loss.

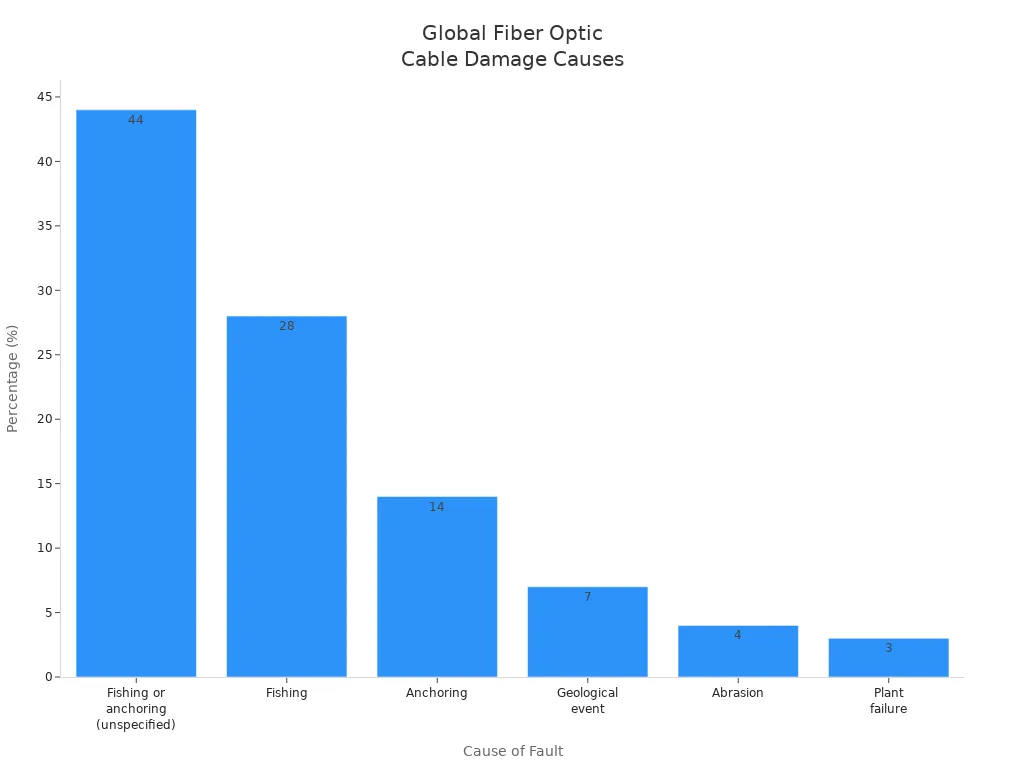

Cause of Fault | Percentage |
|---|---|
Fishing or anchoring (unspecified) | |
Fishing | 28% |
Anchoring | 14% |
Geological event | 7% |
Abrasion | 4% |
Plant failure | 3% |
Key Takeaways
Fusion splicing creates a strong, low-loss connection, making it ideal for long-term fiber optic cable repairs.
Mechanical splicing offers a quick and cost-effective solution for urgent repairs, but may result in higher signal loss.
Choosing the right repair method depends on factors like urgency, budget, and network performance needs.
| Fiber Troubleshooting Bible for Beginners 2025[CLICK] | |
|---|---|
| Fiber Optic Attenuation Fixes and Loss Budget Tips | Connector Cleaning Practices Made Easy in Five Steps |
Fiber Cable Damage Analysis
Common Failure Causes
Mechanical Damage

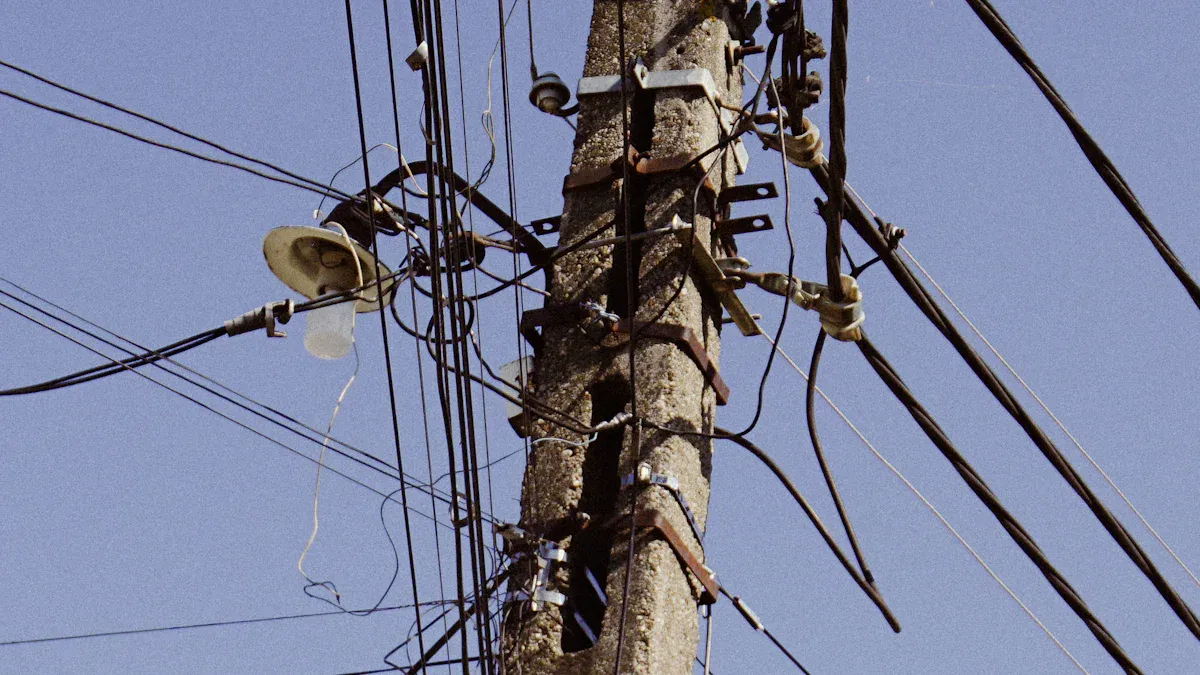

Physical damage remains the leading cause of fiber cable repair needs. Construction crews often cut or damaged cables during excavation or roadwork. Municipal workers sometimes sever cables while installing utilities. Homeowners may accidentally break cables when building fences or landscaping. Rodents and pests chew through protective coatings, exposing the delicate fibers inside. Even minor nicks or crushes can disrupt signal transmission, resulting in the need to repair fiber optic cable. A successful fiber optic cable repair depends on identifying the exact location and nature of the break.
Note: Mechanical damage can occur at any stage, from installation to routine maintenance. Quick detection and response help minimize network downtime.
Cause of Damage | Description |
|---|---|
Physical damage | Accidental cuts or crushes during installation, maintenance, or due to external factors. |
Human error | Mistakes during installation or maintenance lead to damaged connections. |
Rodent and pest damage | Animals, especially rodents, chew through protective coatings, damaging the fibers inside. |
Environmental Factors
Fiber optic cable repair teams frequently encounter environmental challenges. Extreme temperatures and humidity weaken protective coatings, making cables more susceptible to breaks. Geological events, such as earthquakes or landslides, can shift or crush buried cables. Abrasion from rocks or soil movement also contributes to damaged fiber optic cable. Over time, exposure to harsh conditions accelerates wear, increasing the likelihood of repair breaks.
Environmental factors affecting fiber optic cable:
High or low temperatures
Excessive moisture or humidity
Soil movement or geological activity
Abrasive contact with rocks or debris
Fiber cable repair specialists must assess these risks to ensure long-term reliability. Proper installation and regular inspection reduce the impact of environmental stressors, supporting successful fiber optic cable repair.
Standard Repair Process
Step-by-Step Restoration
Pre-Repair Preparation
A successful fiber optic cable repair begins with thorough preparation. Technicians first identify the fault using an Optical Time-Domain Reflectometer (OTDR) and visual inspection. They access the damaged fiber optic cable by referencing network maps and conducting careful excavation if the cable is buried. Physical damage from bending, crushing, or cuts often complicates this stage. Contamination from dust or oil at connectors can also hinder progress. Technicians clean the cable ends and ensure the bend radius meets IEC 61300 standards to prevent micro-fractures. Repositioning the cable and applying protective sleeves help reinforce the repair site.
Tip: Using essential tools for fiber optic cable repair, such as high-precision cleavers and cleaning wipes, reduces the risk of signal loss and improves restoration quality.
Splicing Operations
Technicians select splicing techniques based on network requirements and available resources. Fusion splicing uses an electric arc to weld the glass ends, similar to joining metal in welding. This method produces a low optical loss (0.01–0.03 dB) and high durability, as confirmed by Corning fiber test reports. Mechanical splicing aligns the fiber ends in a specialized device, such as the 3M Fibrlok system, and secures them with index-matching gel. Mechanical repair typically results in higher optical loss (0.2–0.75 dB) and moderate durability.
Method | Fiber Preparation | Cutting Precision | Time Consumption | Optical Loss (dB) | Durability |
|---|---|---|---|---|---|
Fusion Splicing | Cleaving, cleaning | High | 5–8 min/splice | 0.01–0.03 | High |
Mechanical Splicing | Cleaving, cleaning | Moderate | 2–4 min/splice | 0.2–0.75 | Moderate to Low |
Technicians perform testing and troubleshooting after splicing. They use OTDR and power meters to verify signal integrity and confirm a successful fiber optic cable repair. Reinforcement and protection steps, such as applying splice sleeves and restoring the environment, complete the process.
Fusion vs Mechanical Splicing
Technical Performance
Fusion splicing and mechanical splicing techniques deliver different results in fiber cable repair. Fusion splicing uses an electric arc to weld the glass ends, much like welding metal. This process creates a continuous connection in the fiber optic cable, resulting in minimal signal loss and superior reflectance. Mechanical splicing, on the other hand, aligns the fiber ends in a device without physically fusing them. This leads to higher insertion loss and reflectance.
Fusion splicing achieves lower insertion loss and reflectance.
Mechanical splicing produces higher insertion loss and less optimal reflectance.
Fusion splicing offers greater durability, making it suitable for long-term fiber optic cable repair.
Mechanical splicing provides a quicker, less durable solution.
Splicing Method | Insertion Loss | Reflectance |
|---|---|---|
Fusion Splicing | Lowest | |
Mechanical Splicing | 0.2 dB | Higher |
Technicians rely on fusion splicing for high-performance networks and long-distance applications. Mechanical splicing serves as a cost-effective option for less demanding scenarios.
Emergency Application
In emergency situations, speed and simplicity become critical. Mechanical splicing enables rapid restoration of fiber optic cable service. Technicians can complete each splice in 30 to 60 seconds using portable tools. This method proves ideal for urgent fiber optic cable repair, such as restoring service after accidental cuts or environmental damage.
Mechanical splicing is fast and simple, ideal for emergency repairs.
Fusion splicing requires more time and specialized training.
Mechanical splicing allows technicians to repair fiber optic cable quickly in the field.
Method | Time Requirement | Effectiveness |
|---|---|---|
Mechanical Splicing | Fast | Simple and ideal for emergency repairs |
Fusion Splicing | Longer | More effective, delicate process |
Technicians perform testing and troubleshooting after both splicing techniques to confirm signal integrity and network reliability.
Splicing Method Selection
Decision Criteria
Selecting the right method for fiber cable repair depends on several technical and operational factors. Experts evaluate insertion loss, cost, longevity, application, and back reflection. The table below summarizes these criteria:
Criteria | Fusion Splicing | Mechanical Splicing |
|---|---|---|
Insertion Loss | < 0.1 dB (lower loss) | < 0.5 dB (higher loss) |
Cost | More expensive | Less expensive |
Longevity | Longer life | Shorter life |
Application | Best for permanent installations | Suitable for quick repairs or permanent installations |
Back Reflection | Less back reflection | Higher back reflection |
Note: Fusion splicing, often compared to welding, creates a continuous glass connection. This method delivers superior performance and durability, especially in demanding environments.
Scenario-Based Selection
Technicians choose mechanical splicing for rapid or temporary fiber optic cable repair. This approach works well for emergency restoration, small-scale projects, or controlled indoor environments. Mechanical splicing also proves effective when essential tools for fiber optic cable repair must remain portable. In contrast, fusion splicing suits permanent installations, long-haul networks, and outdoor repairs where environmental factors like temperature and humidity challenge splice integrity.
Mechanical splicing offers speed and simplicity for urgent repairs or when power sources are unavailable.
Fusion splicing endures harsh conditions and supports high-performance networks.
Cost-Benefit Analysis

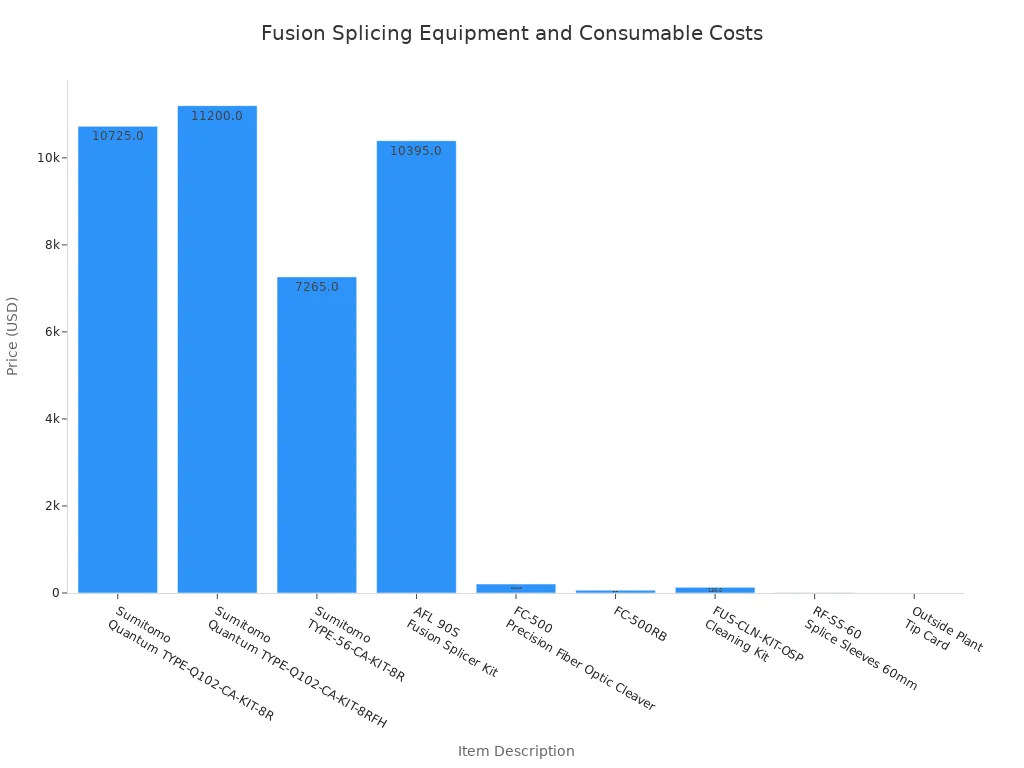

Cost plays a significant role in selecting a splicing method. Mechanical splicing systems cost around $500, while fusion splicing systems typically exceed $5,000. Consumables for fusion splicing remain less expensive per splice, ranging from $0.50 to $1.50, compared to $10 to $30 for mechanical splicing. The chart below illustrates the price range for fusion splicing equipment:
While mechanical splicing reduces upfront investment, ongoing costs can accumulate. Fusion splicing, despite higher initial expenses, provides long-term savings and reliability, especially when frequent repair breaks occur. Technicians rely on testing and troubleshooting to confirm the quality of each splice and maintain network performance.
Quality Validation
IEC 61300 Compliance
Fiber optic cable repairs must meet strict international standards to ensure reliable data transmission. The IEC 61300 series defines the procedures for evaluating the performance of splices and connectors. Technicians use these standards to validate both fusion and mechanical splicing methods.
Testing and troubleshooting follow IEC 61300 guidelines, which assess insertion loss, mechanical strength, and environmental durability.
Fusion splicing typically achieves insertion loss below 0.1dB, while mechanical splices range from 0.75dB to 1.35dB.
Newer mechanical connectors show improved consistency, but fusion splice-on connectors often match factory adhesive connectors with losses near 0.5dB.
IEC grades the performance of each splice, ensuring only compliant repairs remain in service.
Tensile Strength Test
Technicians perform tensile strength tests to confirm the mechanical integrity of each splice. The IEC 61300 standard specifies the force applied to the joint to simulate real-world stress.
Fusion splicing, which uses a welding-like process to join glass fibers, produces a robust joint that withstands higher tension.
Mechanical splices, while faster to install, may not endure the same level of strain.
Corning fiber test reports show that fusion splices consistently pass tensile strength requirements, supporting their use in mission-critical networks.
OTDR Trace Verification
Using OTDR for post-repair testing provides a clear picture of splice quality.
Splice Type | |
|---|---|
Mechanical Splice | 0.2 to 0.75 |
Fusion Splice | <0.1 |
Technicians analyze OTDR traces to check for minimal loss at the splice point, absence of new reflective events, and overall cable attenuation within specification.
End-to-end testing with a power meter ensures the repaired link supports reliable data transmission.
IEC 61300 recommends that post-repair power levels remain within 0.5dB of the original baseline.
Fusion splicing, often compared to welding, delivers low-loss and durable connections, making it ideal for high-performance and long-term reliability. Mechanical splicing offers rapid, cost-effective repairs for urgent needs.
Aspect | Fusion Splicing | Mechanical Splicing |
|---|---|---|
Reliability | High | Moderate |
Cost | Lower initial |
Technicians should assess urgency, budget, and network demands before selecting a method. For complex repairs, consulting fiber specialists ensures optimal results.
