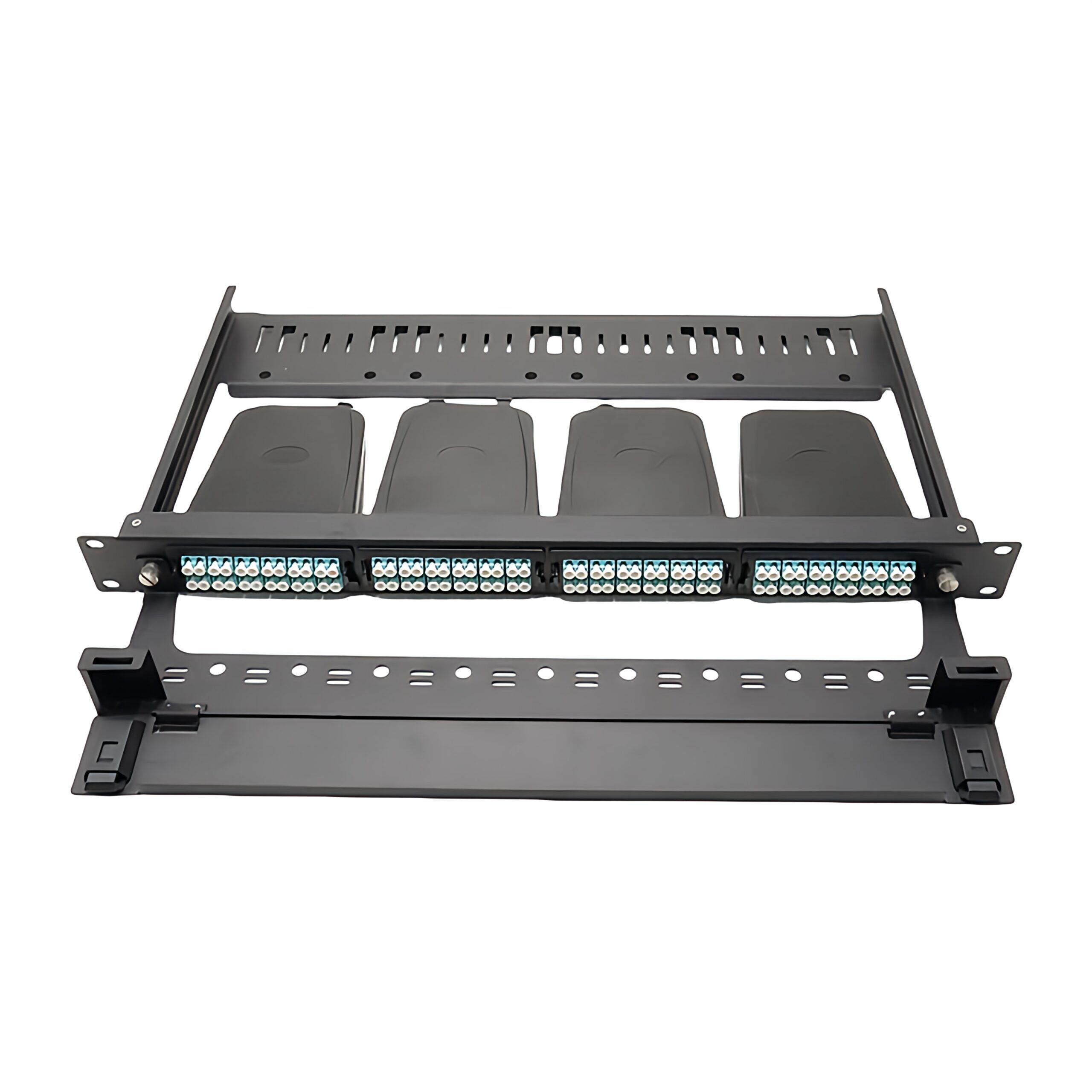

The rack mount MTP/MPO modular fiber patch panel is designed to accommodate high density applications in Data Centers, telecommunications and or enterprise cabling. This factory-terminated and pre-tested MTP/MPO fiber patch panel saves on-site installation time and increase reliability. The design of modular fiber enclosure allows for easy connection to the LC adapters using multi-fiber optical patch cords (sold separately) and is mountable in a standard 19 inch or 23 inch rack or cabinet frame. Its maximum expandable to 96 LC ports. The rack mount moldular patch panel accepts up to 4 pcs plastic MTP/MPO-LC duplex cassette in 1U space, It allows a total of max 48 LC duplex ports in front and 8 pcs MPO/MTP connectors for fiber connection.The high density modular fiber enclosure provide flexible choice to deploy patching or cross-connect when using a minimum of space.
The 96 port fiber enclosure panel is a one-piece structure for quick deployment, and offers both front and rear-mounting capabilities with easy-access cable management. The MTP/MPO patch panel is compatible with high density cassettes which up to 96 fibers in 1U, it also has built-in rear cable managers to help manage cables easily and quickly.
With the MPO/MTP Fiber Patch Panel, you’ll experience improved efficiency, faster deployment, and a more organized and manageable fiber optic network.
Features:
1Â The main frame is made of high quality cold-rolled steel, and electrostatic spraying in the surface
2. 1U enclosure panel up to 4 pcs plastic cassette（48 lc duplex ports）
3. Cassette is interchangeable between fiber enclosure panel
4. Support both singlemode and multimode application
5. Supports various configurations to meet the evolving needs of your network, ensuring flexibility for future upgrades
Applications:
1. Data Centers: Facilitates high-bandwidth connections and supports scalable infrastructure to meet the increasing demands of cloud computing and data storage.
2. Telecommunications: Ideal for handling high-density fiber installations in telecom networks.
3. Enterprise Networks: Enables efficient fiber management for large office buildings or campus networks, enhancing both performance and organization.
