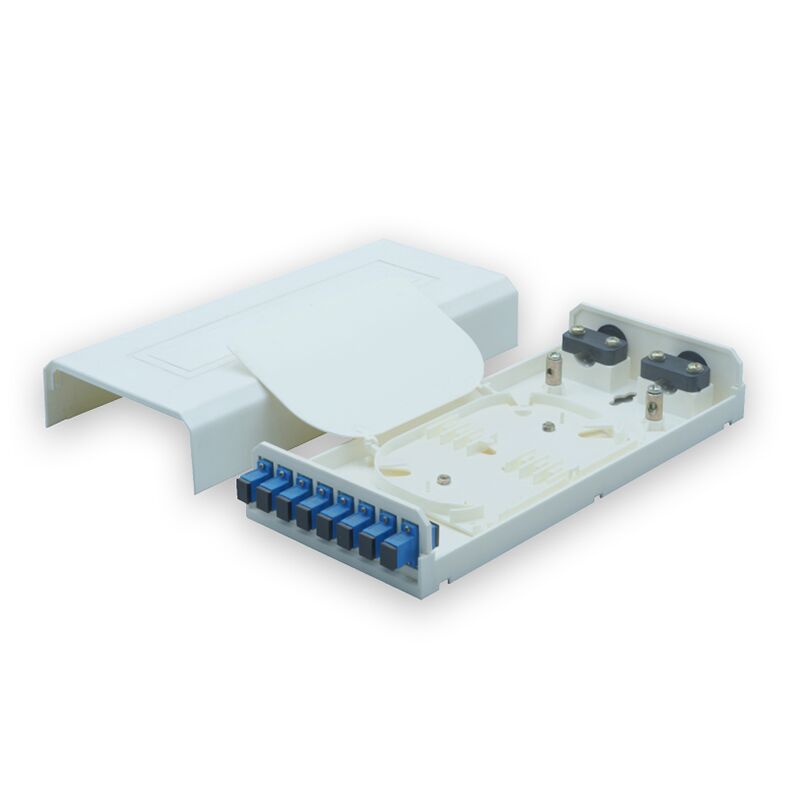

8 Port Wall Mount Fiber Optic Patch Panel

This fiber patch panel fits for wall mount in indoor cabling. It is for inter-connectivity and termination of  optical fibers, the metal fiber enclosure comes with an splice holder that can accommodate 8 single fusion splices. The compact fiber patch panel is usually used for indoor optical cable terminal branch connection inside building or villas.  Its small size is ideal to install in inside cabinet, it is especially for mini-network terminal distribution.

Feature：
.The body is made of high quality cold-rolled steel, and electrostatic spraying in the surface
. 2 cable inlets and 8 fiber outlets design can enhance the flexibility of use
. Configure with cable fixed device, splice tray and thread ring
. Superimposed fiber splice tray is convenient for future capacity expansion
. Independent insulation grounding device provides the safety
. 8 outlet for sc/fc/st adapters

Technical index：
. Fiber radius curvature：≥40mm
. Splice tray additional loss：fiber in the tray has no additional loss
. Fiber length coiled in the tray：≥1.6m
. Working temperature：-40℃～+ 60℃
. Lateral pressure resistance: 500N
. Impact resistance: 750N
