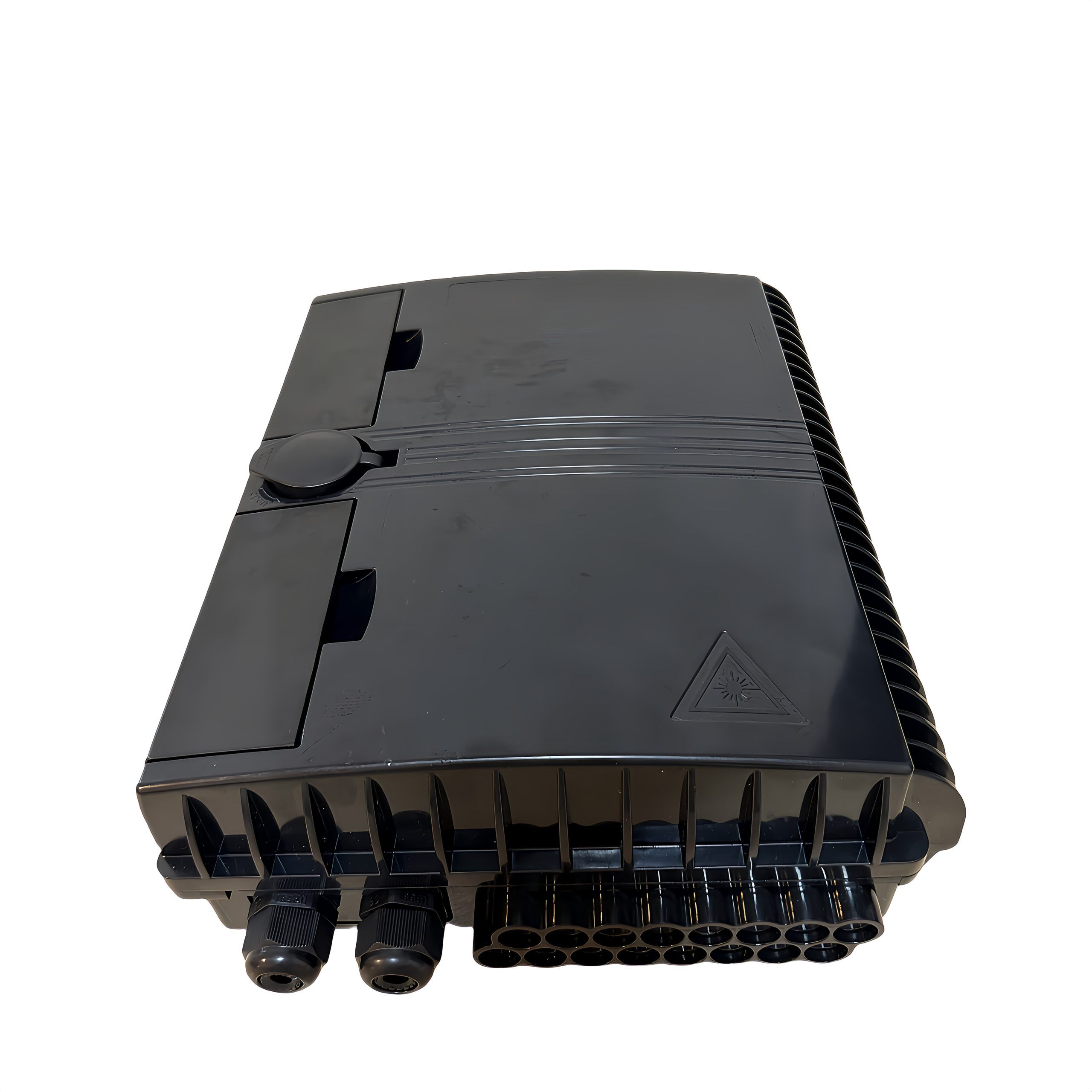

16 Port Fiber Termination Box For Mini PLC Splitter , 24 Splices

The outdoor 16 fiber enclosure is an termination box for the junction of feeder cable and drop cable in optical systems. It enables the direct connection of pre-terminated drop cable or branch connection through the fusion splicing with pigtail, also used to realize terminal connection. The unit integrates the functions of splicing, splitting, wiring, cable management; and it is also excellent for protecting optical cable and pigtail; and mainly used in the end termination of apartment, residential & business building, villas in FTTH, FTTH network.

This distribution box comes with 2 input and 16 output ports, which can accommodate max 1×16 blockless splitter and hold 24 cores splicing. It is of engineering plastic offering strong protection for splice and termination; the anti-theft lock provides extra security; dual-layer design is easy for installation and maintenance. The 16 fiber enclosure is waterproof and suits indoor or outdoor environments for wall mounted or pole mounted installation.

Features:

. High-quality engineering plastics, UV/water resistant

. Adapter slot for easy installation

.  Lockable cover  for safety

.  Enough space for cable storage and fiber routing

.  Flip design for splice tray providing easy fiber management

Technical parameter:

. Optical fiber radius of curvature:≥40mm

. Splice tray additional loss：≤0.01dB

. Temperature Range: – 40°C ~ + 60°C

. Compressive strength: ＞500N

Specification：
