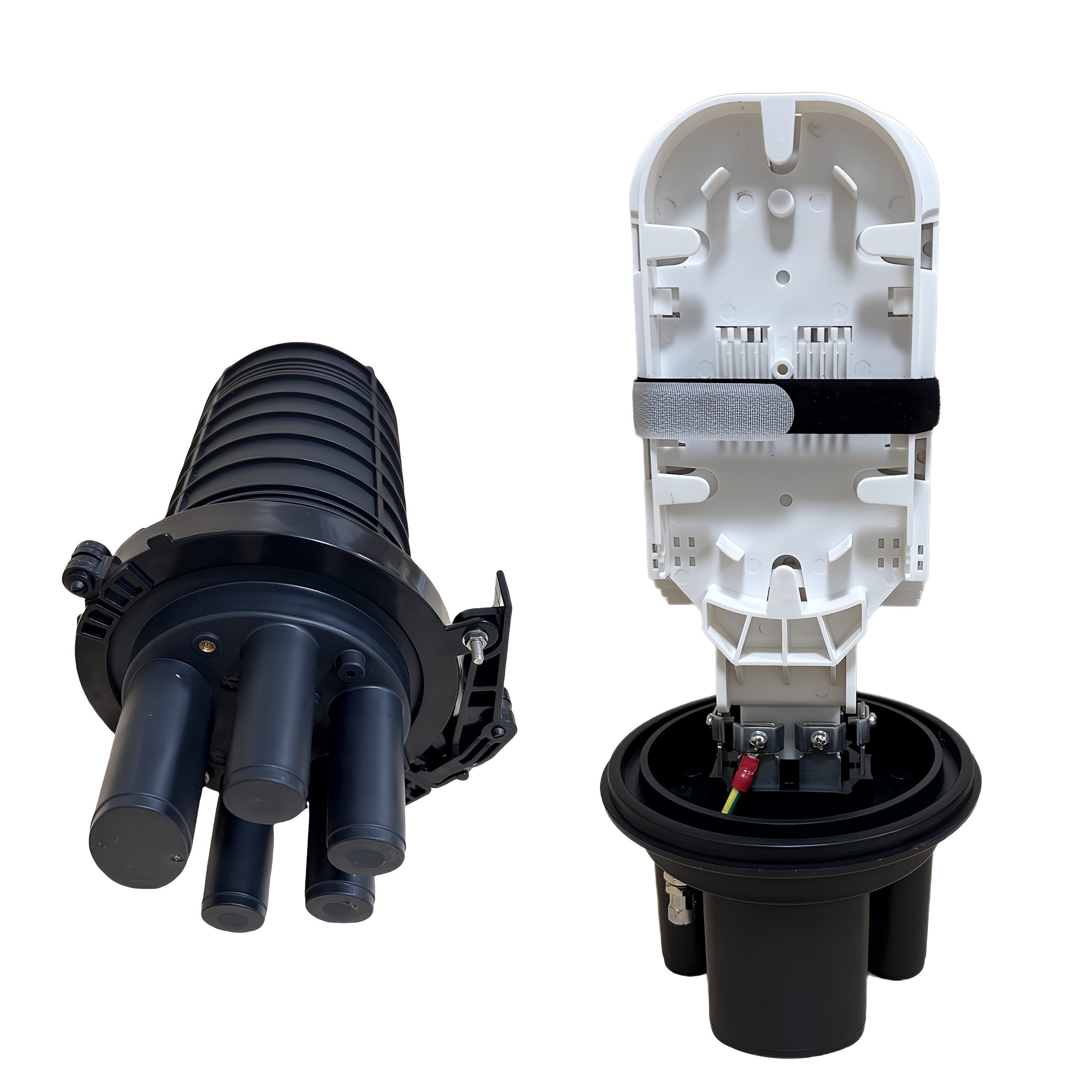

This fiber optic splice closure is a dome enclosure with 1 inlet and 4 outlet ports for outdoor optical cable in and out, which can hold 96 cores joint. The shell of the fiber optic joint enclosure is of excellent engineering plastics; It features lightweight, high mechanical strength, anti-aging, strong corrosion-resistance; Inside of the fiber optic cable box can place 4 pcs 24 splice cassettes for managing splices and excess fibers. The fiber joint enclosure is with good sealing performance, protection up to IP68. The fiber optic splice closure is used for direct and branch connection during optical fiber transmission and provides joint connection protection.
The dome fiber optic enclosure integrates the function of distribution, splice, and storage of outdoor optical fiber cable (ofc), and can be used in aerial, duct, pole, wall mounting, underground direct buried fiber optic cable projects.
Specification：
| Size(mm) | Φ190×316 | Product Type | Dome |
| Max capacity | 96 cores(single fiber ) | Tray capacity | 24 cores |
| Splice tray | Max 4 | Sealing type | Heat shrink |
| Cable diameter(mm) | Φ7-20 | Entry&Exit | 3 inlet/3 outlet |
