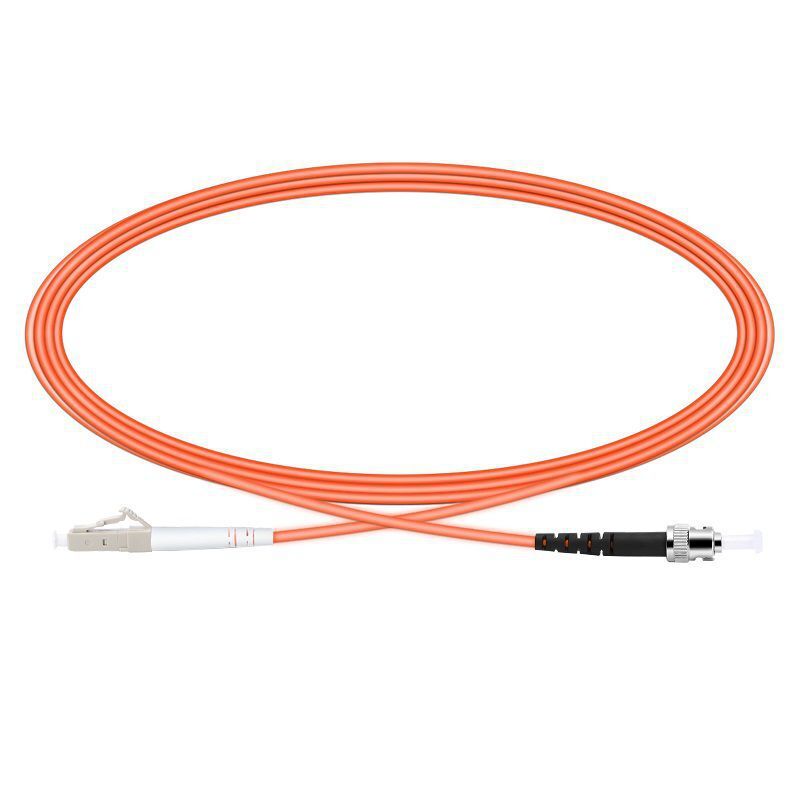

LC To ST Multimode Fiber Patch Cable
$1.13
LC/UPC to ST/UPC, Simplex Multimode OM1/OM2, 0.9mm, 1.5M
- Low insertion loss, high return loss
- High environmental stability
- Good exchangeability and durability
- 100% quality inspection
- Available to customize length, fiber diameter, connector
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Shipping cost not included.
- A sample is free of charge, but shipping fee is for your account.
This ST To LC fiber patch cord is a multimode cable with ST and LC connector on each end. Fiber patch cable is commonly used to connect the equipment in fiber optic networks. The fiber optic jumper can be categorized by fiber optic connector types, When we name LC fiber patch cable because this optical cable comes with an LC connector, and it also can be named as PC, UPC, APC type fiber optic jumper because of the polishing way of fiber connectors.
The ST to LC fiber patch cord is available in single mode and multimode cable type, They also can feature other fiber optic connectors like lc/fc/st/e2000. Cable color, fiber diameter, and jacket are optional.
Specification:
| Connector Type | ST-LC | Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Type | SM, MM | Fiber Count | Simplex/Duplex/Quad |
| Polish | UPC,APC | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Attenuation at 1310 nm | 0.36 dB/km |
| Return loss | ≥50dB | Attenuation at 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 30mm | Operating temperature | -40°C~80°C |
| Fiber-Grade | G652D,G657A,G.651 | Cable Length | 1m/2m/3m/5m… |
