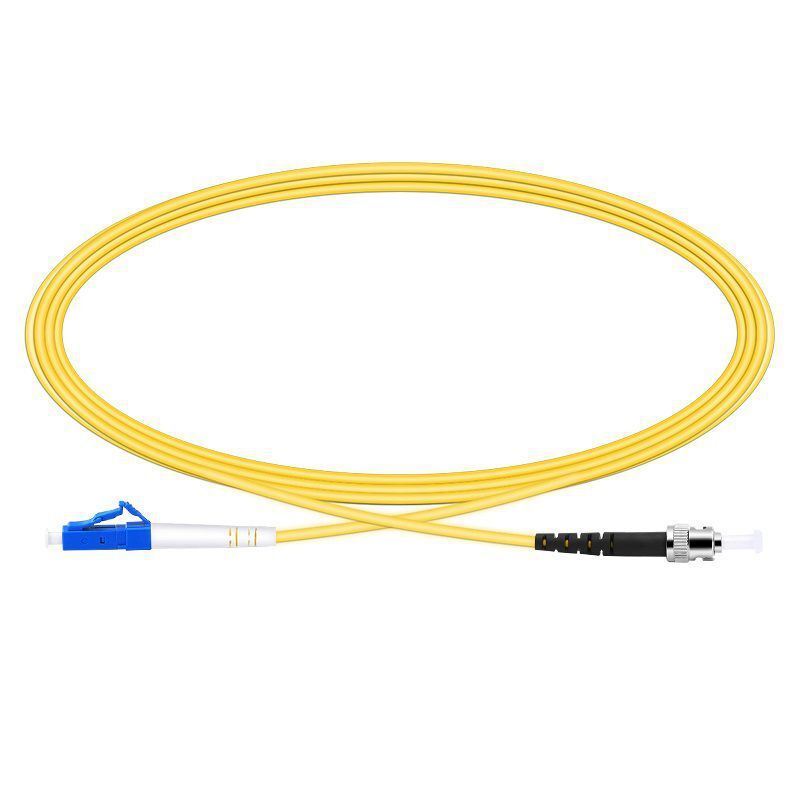

This ST To LC fiber patch cord is a single mode cable with ST and LC connector on each end. Fiber patch cable is commonly used to connect the equipment in fiber optic networks. The fiber optic jumper can be categorized by fiber optic connector types, When we name LC fiber patch cable because this optical cable comes with an LC connector, and it also can be named as PC, UPC, APC type fiber optic jumper because of the polishing way of fiber connectors.
The LC to ST fiber patch cord is available in single mode and multimode cable type, They also can feature other fiber optic connectors like lc/fc/st/e2000. Cable color, fiber diameter, and jacket are optional.
Specification:
| Connector Type | ST-LC | Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Type | SM, MM | Fiber Count | Simplex/Duplex/Quad |
| Polish | UPC,APC | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Attenuation at 1310 nm | 0.36 dB/km |
| Return loss | ≥50dB | Attenuation at 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 30mm | Operating temperature | -40°C~80°C |
| Fiber-Grade | G652D,G657A,G.651 | Cable Length | 1m/2m/3m/5m… |
