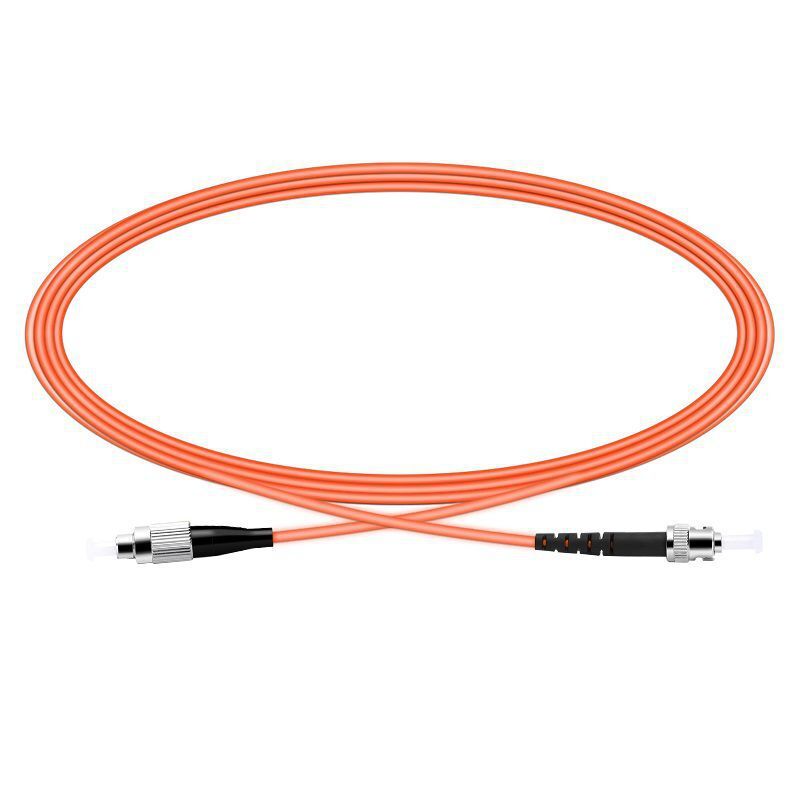

This ST To FC Fiber patch cable is a multimode cable with ST and FC connector on each end. Fiber patch cord is commonly used to connect the equipment in fiber optic networks. The fiber optic jumper can be categorized by fiber optic connector types, When we name FC fiber patch cable because this optical cable comes with an FC connector, and it also can be named as PC, UPC, APC type fiber patch cable because of the polishing way of fiber connectors.
Our fiber optic jumper is available in single mode and multimode type, which features a range of fiber optic connectors sc/lc/fc/st/e2000. Cable color, fiber diameter, and jacket are optional.
Specification:
| Connector Type | ST-FC | Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Type | SM, MM | Fiber Count | Simplex/Duplex/Quad |
| Polish | UPC,APC | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Attenuation at 1310 nm | 0.36 dB/km |
| Return loss | ≥50dB | Attenuation at 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 30mm | Operating temperature | -40°C~80°C |
| Fiber-Grade | G652D,G657A,G.651 | Cable Length | 1m/2m/3m/5m… |
Our Services
Fast Delivery
Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.
Guaranty
All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
Free Sample
If you are interested in our product, we can offer a Free Sample for your quality test.
