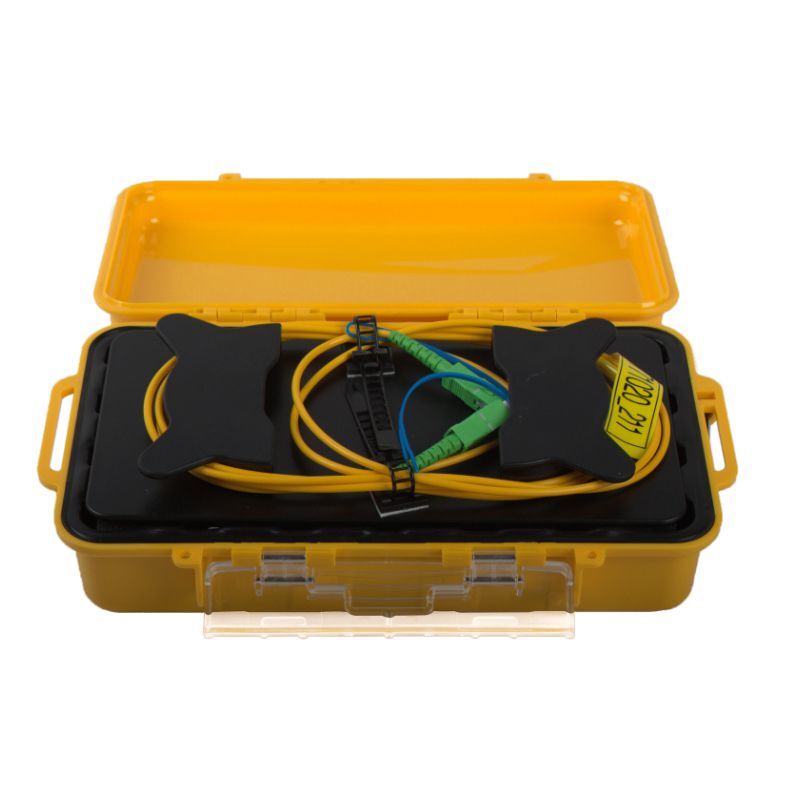

SC-SC OTDR Launch Cable Box

$50.80

Single Mode, SC/APC-SC/APC, Tailor fiber length

Robust metal retractor, Make the box easy to carry.
Built-in Cable Management, Helps to reduce cable stress and save space.
Auto Purge Valve, Elaborate air vent valve regulates the pressure automatically.
Length max up to 2000M
Available with a variety of fiber connector styles

Minimum order quantity: 100 pcs.
Shipping cost not included.
Please CONTACT for a quote on larger quantities.
A sample is free of charge, but freight fee is on your account.

SKU: ADA-LX-Yellow-2 Category: OTDR Launch Cables

Fiber optic launch cable is used to connect the OTDR to the link-under-test to disclose the insertion loss and reflectance of the near-end connection. It is also known as pulse suppressor, when using optical time-domain reflectometer(OTDR), the launch cable box help to eliminate the blind spot or the dead zone. It is designed to aid testing fiber optic cable, widely used with OTDR to help minimize measurement uncertainty.

Fiber optic launch box is a necessary part while using OTDR to find the fault in fiber optical cable. Our high-quality launch cable can measure near-end as well as far-end connection. These cost-effective launch boxes are available with multimode and single-mode cable in all major fiber optic connector types(SC, LC, FC, ST, E2000).

Specification:

Fiber Type	SM/MM
Connector Type	SC,LC,FC,ST,E2000
Material	SR Polypropylene
Fiber Length	150/300/500/1000/2000m
Operating temperature	-40~+55°C
