Mini Fiber Optic Splice Closure, 16 Cores Splice
$8.50
2 In 2 Out, 1pc 16 splice tray, Indoor Outdoor Use
- Model: GJS(04) – 5C
- Material：ABS+PC
- Protection level up to IP65
- A free sample is available
FAST DELIVERY, FREE SAMPLES & 2-YEAR WARRANTY
- Note that this product has a minimum order quantity (50pcs). Please CONTACT sales for more information.
- Shipping cost not included.
- A sample is free of charge, but shipping fee is for your account.

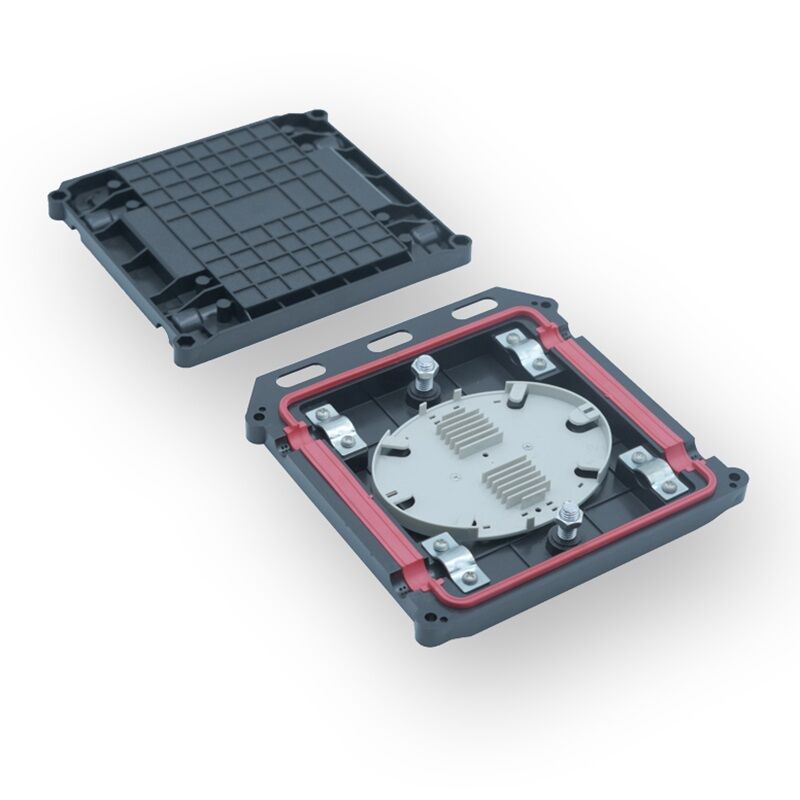

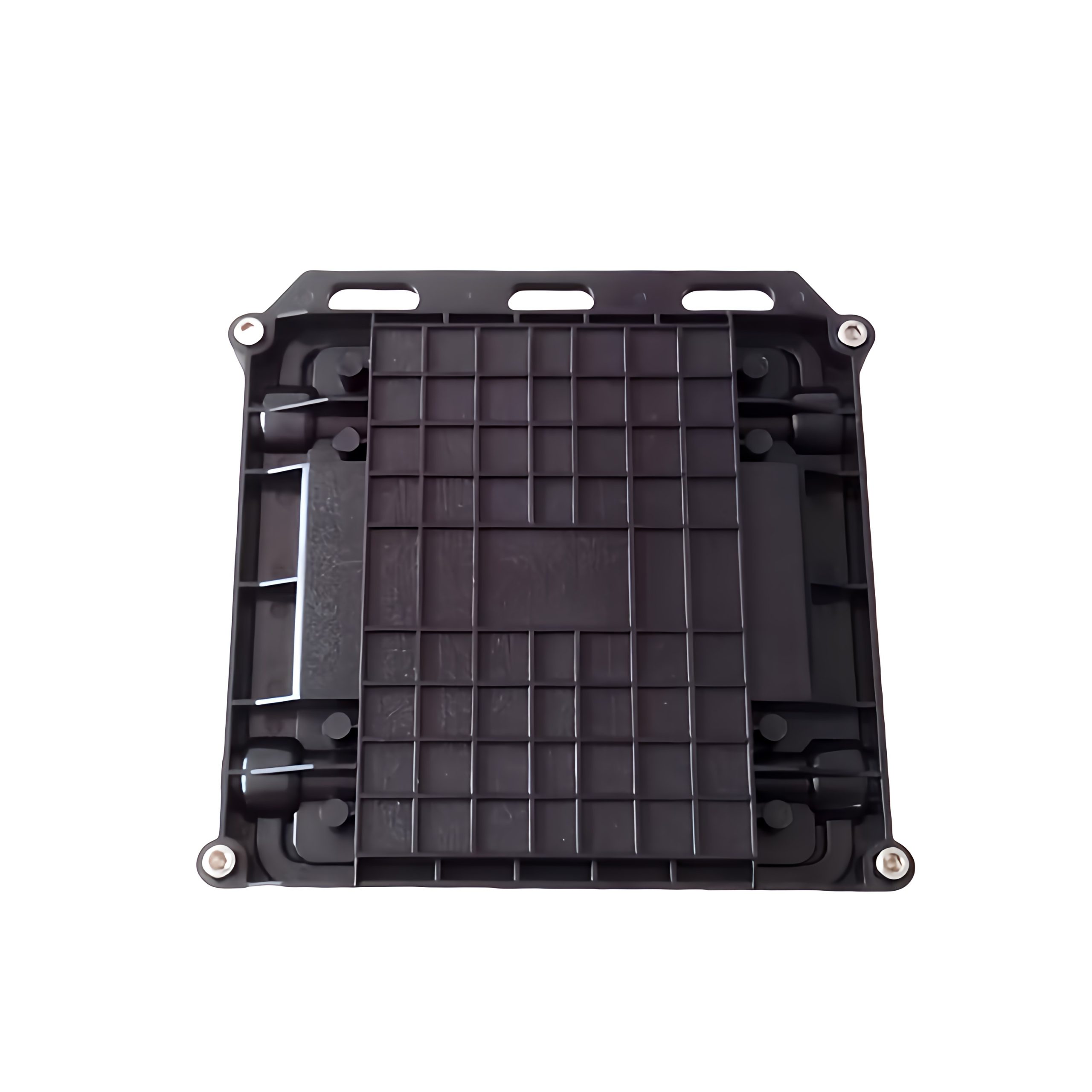

This fiber joint closure is a fiber optic box with 2 inlet and 2 outlet on two sides, it fits for indoor and outdoor application. Its flat shape allows for mounting in small area without compromising functionality. The 16 fiber joint closure is used for straight-through and branch (one in two, one in three) splice of the fiber optic cables, also suitable for the connection of all plastic city telephone cables. This small fiber optic closure is available to apply in aerial, wall-mounting installation. It is with good performance due the strong materials.
Feature:
. Aging and corrosion resistance
. Small size and light, reasonable design for cable protection
. The body and cable entry port are sealed with silicon rubber ensures a good air tightness and water resistance.
. Easy to install and re-open without special tool
. Pull-down type splice tray makes fiber installation easy
Technical parameter:
optical fiber winding radius： ≥40mm
extra loss of fiber tray： ≤0.01dB
fiber length left in tray： ≥1.6m
working temperature： – 40℃ ～ + 65℃
lateral pressure-resistance： ≥2000N / 10cm
shock-resistance： ≥20N.m
Protection grade： IP65
Specification:
| Size(mm) | 200*220*42 | Weight(kg) | 0.8 |
| Max capacity | 16 cores（single） | Cable diameter(mm) | Φ10-12 |
| Splice tray | 16 (single core) & 1pc | Sealing type | Silicone rubber |
