IP68 Aerial Fiber Splice Enclosure With 5 Cable Port, 144 Cores Splice

IP68 Aerial Fiber Splice Enclosure With 5 Cable Port, 144 Cores Splice

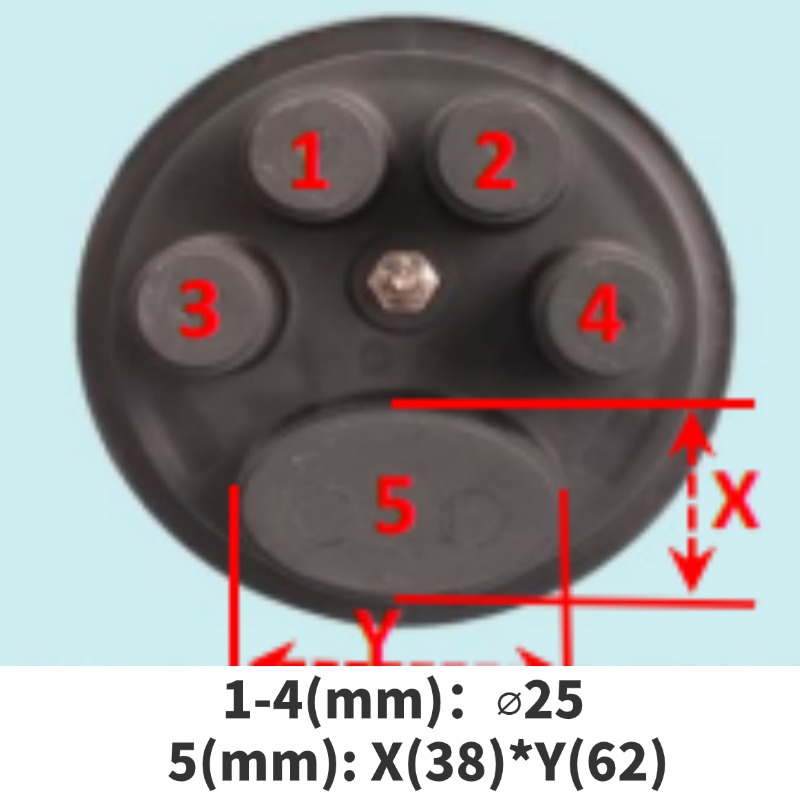

4 round ports and 1 oval port, 24/48/96/144 fibers

  • Waterproof, dustproof, protection level up to IP68
  •  Adapt to bunchy&ribbon fiber
  •  Easy to re-open without changing sealing material
  • Enough space for wiring and storing fibers
  • Sample is available
  • Free shipping on order less than 30 USD,over 30 USD pls contact our consultant
  • A sample is free of charge, but freight fee is on your account.
SKU: ADA-FOSC-DT-C Category:


This aerial fiber splice enclosure is a dome closure that comes with 5 ports for optical cable in and out, can hold 144 cores to splice. The outer of the fiber optic cable joint box is of high-strength engineering plastics, and it features lightweight, high mechanical strength, anti-aging, strong corrosion-resistance; inside of the fiber optic cable box can place 6 pcs 24 splice trays for managing splicing and excess fibers. The 5 port fiber joint enclosure is with good sealing performance, protection up to IP68. The dome fiber closure is used for direct and branch connection during optical fiber transmission and provides cable joint connection protection.

The dome enclosure integrates the function of distribution, splice, joint and storage of outdoor optical fiber cable(ofc), and can be used in aerial, duct, pole, wall mounting, underground direct buried fiber optic cable projects.

光纤熔接盒,无源plc分离器,跳线,光纤闭合,尾纤,发射电缆,ftth接线盒,光学终端盒,配电盘,壁挂式光纤接线盒,sc / fc / st / lc / e2000适配器,跳线


Size(mm) Φ210×540 Product Type Dome
Max capacity 144 cores(single fiber ) Tray capacity 24 cores
Splice tray Max 6 Sealing type Heat shrink
Cable diameter(mm) Φ7-25 Entry&Exit 3 inlet/ 3 outlet

Our Services


Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.


All Fiber termination boxes/enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.


If you are interested in our product, we can offer a free sample for your quality test.
