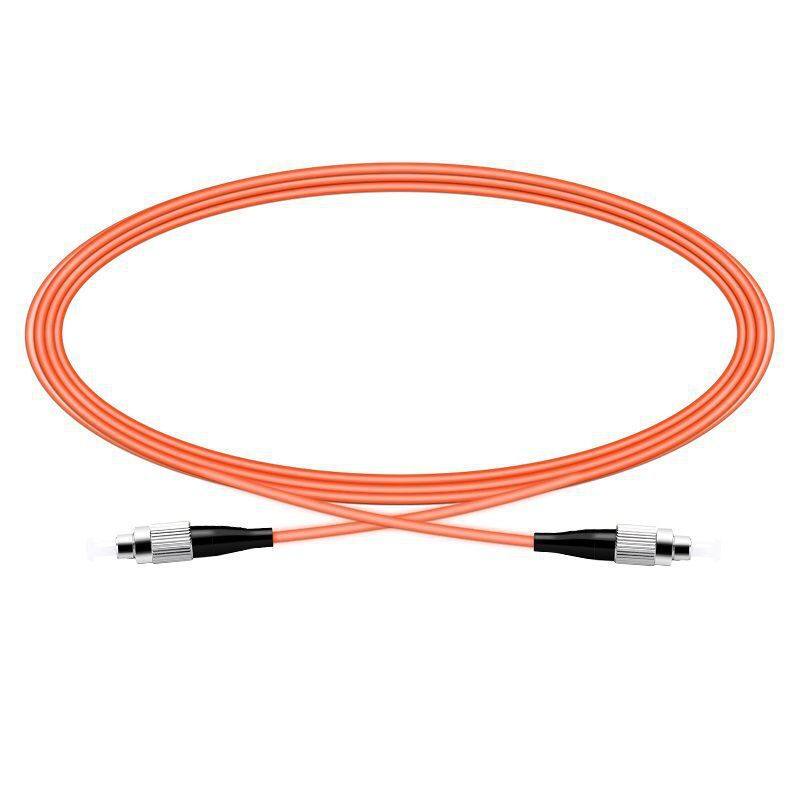

This FC To FC Fiber Patch cable is a multimode cable with FC connector on both ends. Fiber patch cord is commonly used to connect the equipment in fiber-optic networks. The fiber optic jumper can be categorized by fiber optic connector types, When we name FC fiber patch cord because this optical cable comes with an FC connector, and it also can be named as PC, UPC, APC type fiber patch cord because of the polishing way of fiber connectors.
Our fiber optic jumper is available in single mode and multimode type, which features a range of fiber optic connectors type sc/lc/fc/st/e2000. Cable color, fiber diameter, and jacket are optional.
Specification:
| Connector Type | FC-FC | Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Type | SM, MM | Fiber Count | Simplex/Duplex/Quad |
| Polish | UPC,APC | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Attenuation at 1310 nm | 0.36 dB/km |
| Return loss | ≥50dB | Attenuation at 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 30mm | Operating temperature | -40°C~80°C |
| Fiber-Grade | G652D,G657A,G.651 | Cable Length | 1m/2m/3m/5m… |
