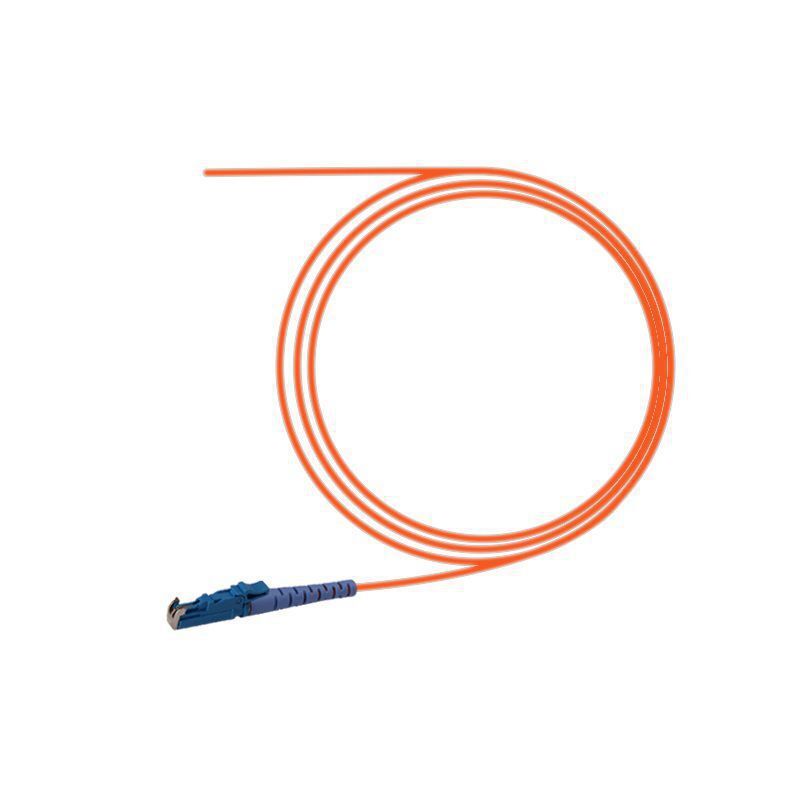

E2000 pigtail is a cable with high-grade E2000 fiber optic connector on one end, another end unterminated. They can configure single mode and multimode fiber for the specific application. These E2000 pigtail Assemblies are available in UPC, APC polish with simplex or duplex fiber cable versions. Cable length, cable diameter, and jacket are optional. The typical type of fiber pigtail most uses 0.9mm cable, because it is especially suitable for high-density splice application.
Fiber Pigtail is utilized to achieve accurate mounting for precision alignment of fiber optical components. Fiber optic pigtails provide a fast way to link communication devices, mostly used to terminate fiber optic cable by fusion or mechanical splicing. And the pigtails are usually found in ODF, fiber distribution box and terminal box, etc. They are widely used in CATV, FTTH/FTTX, LAN/WAN network, and more.
Specification:
| Connector Type | E2000 | Cable diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Type | SM, MM | Fiber Count | Simplex/Duplex |
| Polish Type | UPC/APC | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Return loss | ≥50dB |
| Tensile Strength | >100N | Durability(Times) | >1000 |
| Minimum Bend Radius | 30mm | Operating temperature | -40°C~80°C |
| Fiber Grade | G652D, G657A, G.651 | Cable Length | 1m/2m/3m/5m… |
Our Services
Fast Delivery
Delivery time is very important to the majority of customers, We try best to find an effective way to coordinate orders to arrive at your destination promptly.
Guaranty
All Fiber Termination Boxes/Enclosures have 2 years ( fiber optic component 1 year ) warranty. We will make a replacement if there are some Non-human damage during a period of warranty time.
Free Sample
If you are interested in our product, we can offer a Free Sample for your quality test.
