2U MPO High Density 288 Fiber Patch Panel With 72 Ports For LC Quad

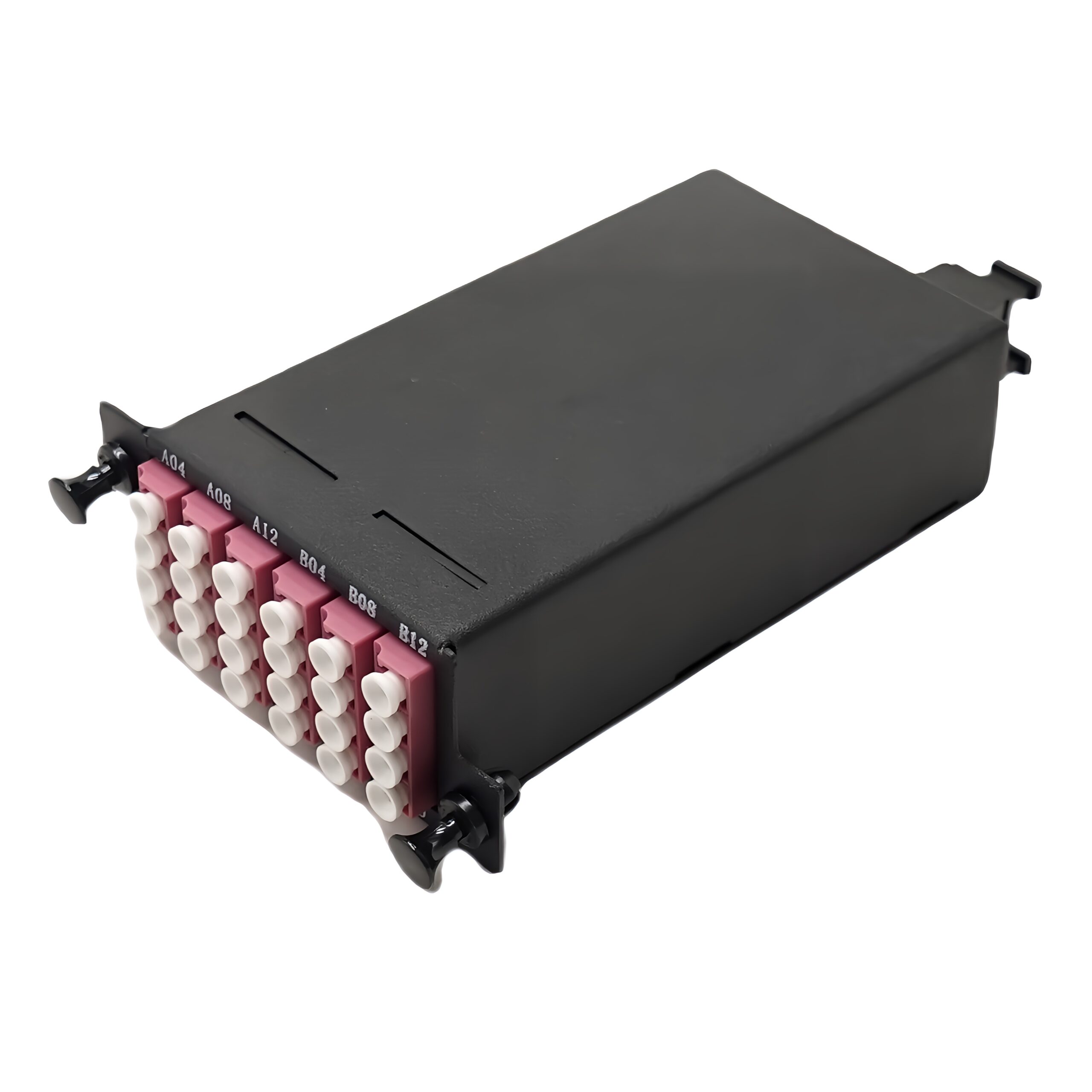

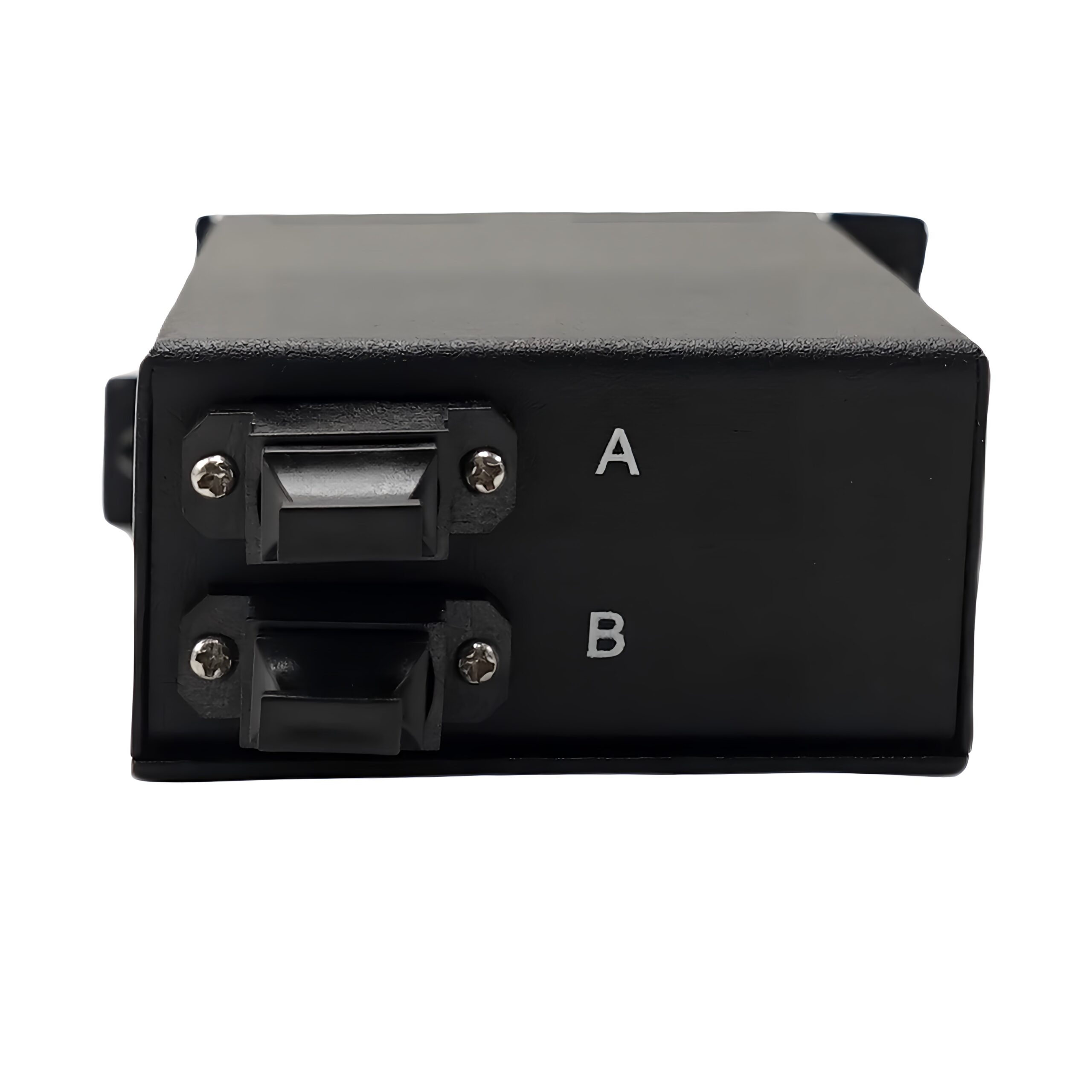

The 2U MTP/MPO fiber patch panel is designed to accommodate high density applications in Data Centers, telecommunications and or enterprise cabling. It come with front and rear cable management trayes which can reduce the a lot of stress on fiber cables and prolong their life expectancy.  The design of ultra high density fiber enclosure allows for easy connection to the LC adapters using multi-fiber optical patch cords and is mountable in a standard rack unit or cabinet frame. Its maximum expandable to 288 fiber by pre-terminating 72 pcs LC quad adapters . The rack mounted ultra high density fiber patch panel accepts up to 12 pcs metal  MTP/MPO-LC cassette in 2U space, It allows a total of max 288 lc adapter in front and 24 pcs MPO/MTP connectors for fiber connection.The  rack mount high density panel provide flexible choice to deploy patching or cross-connect when using a minimum of space.

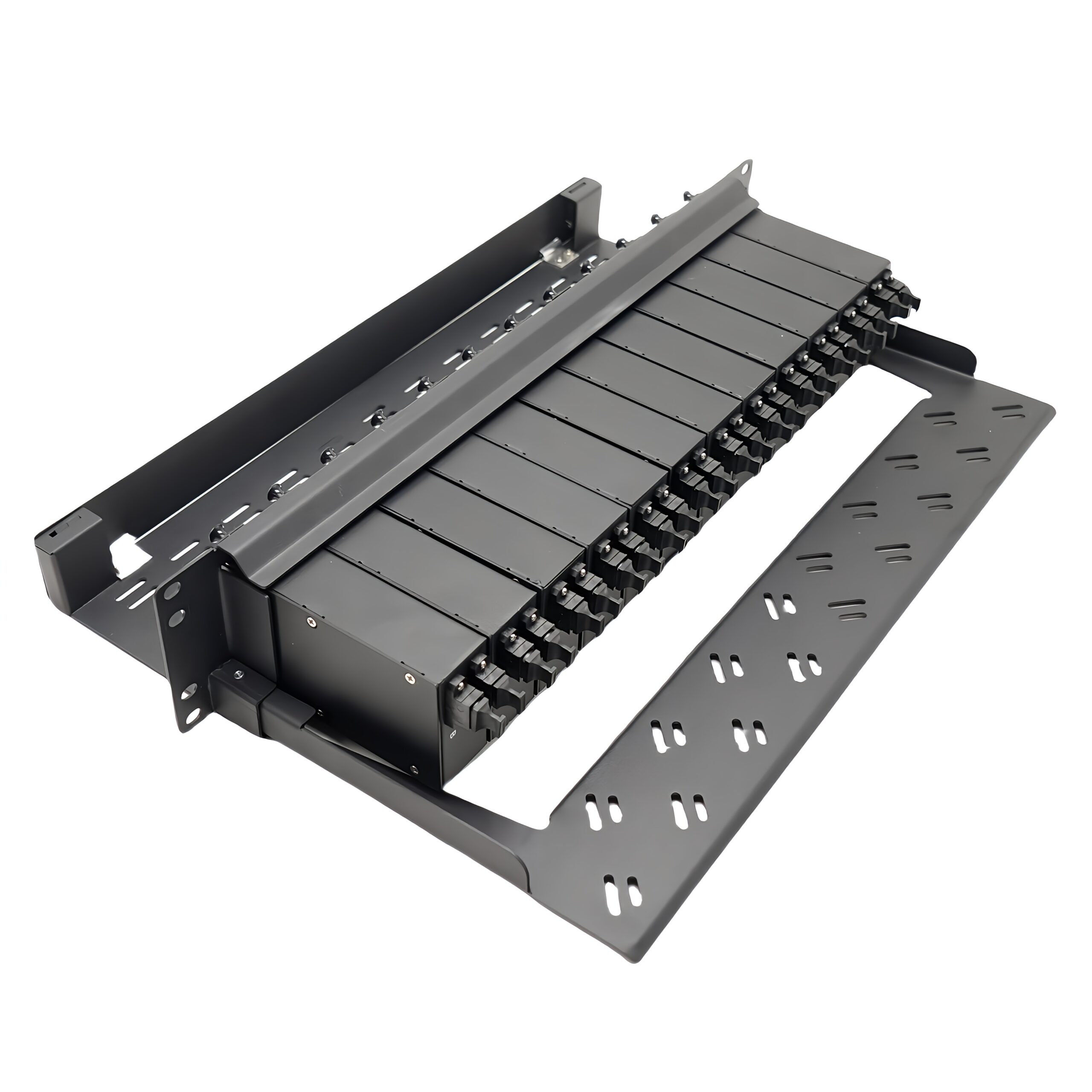

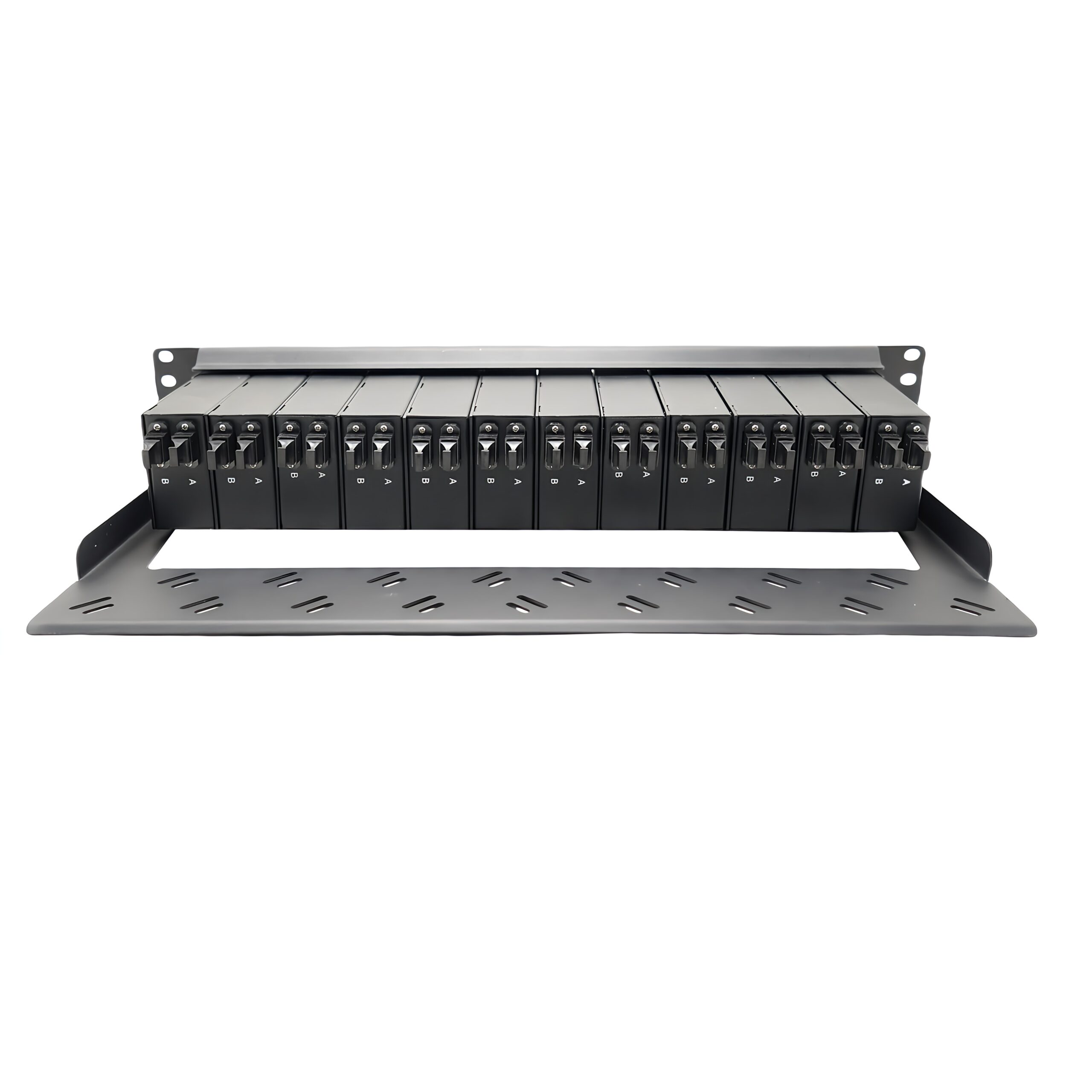

The 2RU rack mounted high density fiber patch panel is a one-piece structure for quick deployment, and offers both front and rear-mounting capabilities with easy-access cable management.  The MTP/MPO patch panel is compatible with high density cassettes which up to 288 fibers in 2U, it also has built-in rear cable managers to help manage cables easily and quickly.

Features:

1  The main frame is made of high quality cold-rolled steel, and electrostatic spraying in the surface

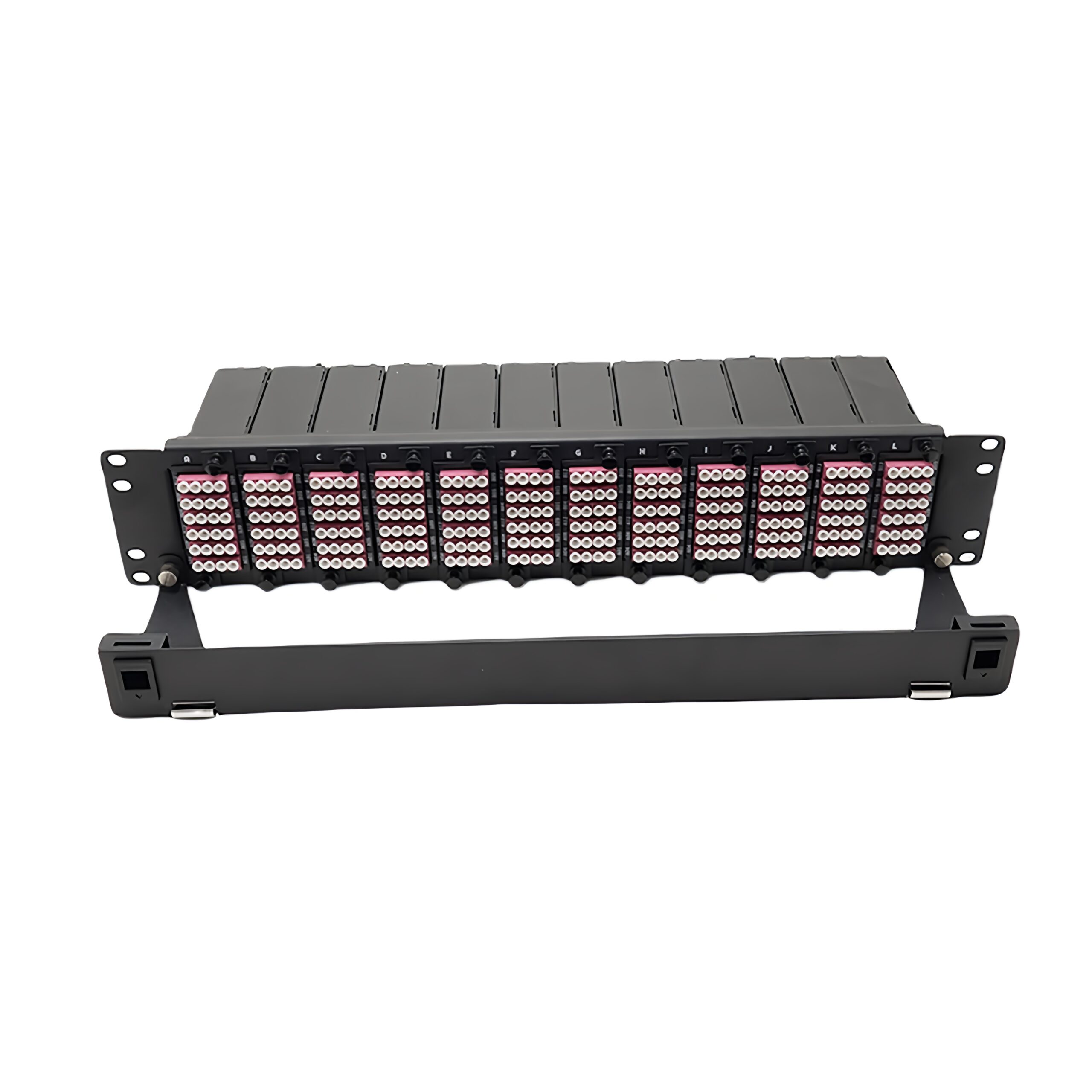

2. 2U enclosure in the front is up to  72 LC Quad fiber ports,  24 MTP or MPO connectors in the rear for connection.

3. Metal Cassette is interchangeable between fiber enclosure panel

4. Support both singlemode and multimode application

5. Supports various configurations to meet the evolving needs of your network, ensuring flexibility for future upgrades

Applications:

1. Data Centers: Facilitates high-bandwidth connections and supports scalable infrastructure to meet the increasing demands of cloud computing and data storage.

2. Telecommunications: Ideal for handling high-density fiber installations in telecom networks.

3. Enterprise Networks: Enables efficient fiber management for large office buildings or campus networks, enhancing both performance and organization.
