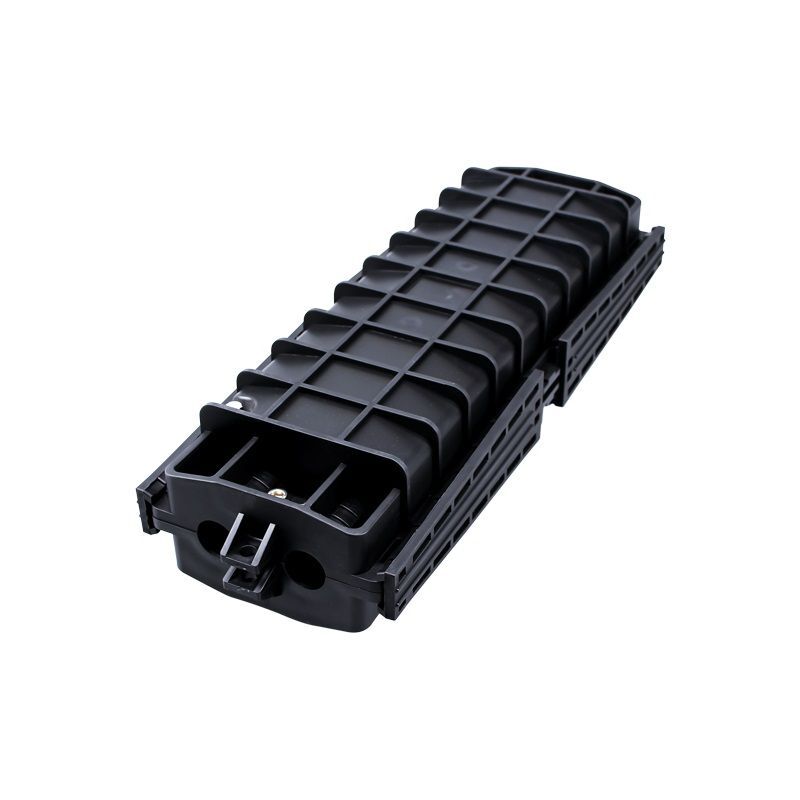

This horizontal fiber optic splice closure is a plastic cabinet that comes with 2 ports on both ends for optical cable in and out, can hold 96 cores splicing and connection. Its outer is of excellent high-strength plastics, and it features lightweight, high mechanical strength, anti-aging, strong corrosion-resistance, Inside of the fiber joint enclosure can put 4 pcs splice tray for managing splices and excess fibers. This fiber optic splice box has the stacked structure splice tray and insulated grounding device, so can make optical cable configuration, expansion, and ground connection flexible, convenient and safe. The fiber optic splice closure is used for direct and branch connection during optical fiber transmission and provides outdoor cable joint protection.
The inline fiber optic enclosure integrates the function of distribution, splice, joint, and storage of outdoor optical cable which entry and exit from the ends of the cabinet, and can be applied in aerial, duct, pole, wall mounting, underground direct buried fiber optic cable projects.
Specification：
| Size(mm) | 440*165*110 | Product Type | Horizontal |
| Max capacity | 96 cores(single fiber ) | Tray capacity | 24 cores |
| Splice tray | 4 | Sealing type | Silicone rubber |
| Cable diameter(mm) | Φ10-22 | Entry&Exit | 2 inlet/2 outlet |
