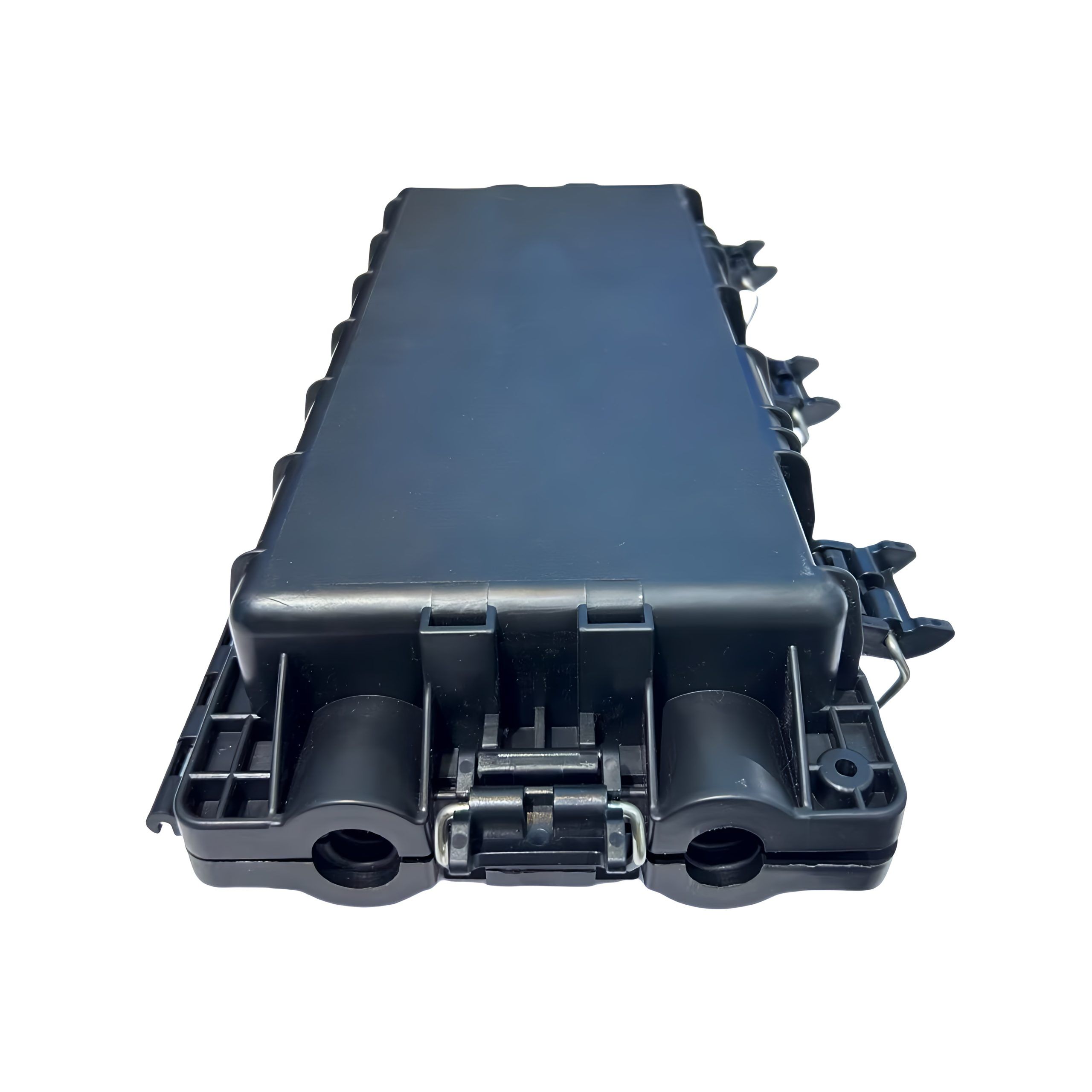

This 144 cores inline splice enclosure comes with 2 cable ports on both sides for cable in and out, fiber optic cable splicing and joints. Its outer is of excellent high-strength plastics, and it features lightweight, high mechanical strength, anti-aging, strong corrosion-resistance, inside of the horizontal fiber optic closure can hold 6 pcs 24 splice tray for managing splices and storing excess fibers.
The horizontal fiber splice closure is suitable for protecting fiber cable splices in straight through applications, ideal for outdoor use. Its operating temperature ranges from -40°C to 85°C, and its setup and installation are easy. The 144 fiber inline splice enclosure can be placed aerial mounted, underground or duct mounted locations.
The horizontal outdoor splice enclosure is like a flat case, integrating the function of distribution, splice, joint, and storage of optical cable. No matter where it is in an external plant or inside a building, the fiber splice closure will connect and store optical fibers safely.
Features:
1.Formed in high-strength engineering plastics, lightweight
2. The sealing of the box body and the cable inlet outlet is made of integrally formed rubber, combined with hinges and inclined wedges. The sealing performance is reliable, and it is easy to open, and maintain repeatedly.
3. Waterproof, dustproof, protection level up to IP68
4. Users can choose metal or plastic cable holder structures based on actual engineering needs, providing users with a variety of cable fixation methods.
Specification:
| Size(mm) | 337 × 152× 84 | Weight(kg) | 1.85 |
| Max capacity | 144 cores（single） | Cable diameter(mm) | Φ10 – Φ18 |
| Splice tray | 24 (single core) & 6pc | Sealing type | Silicone rubber |
