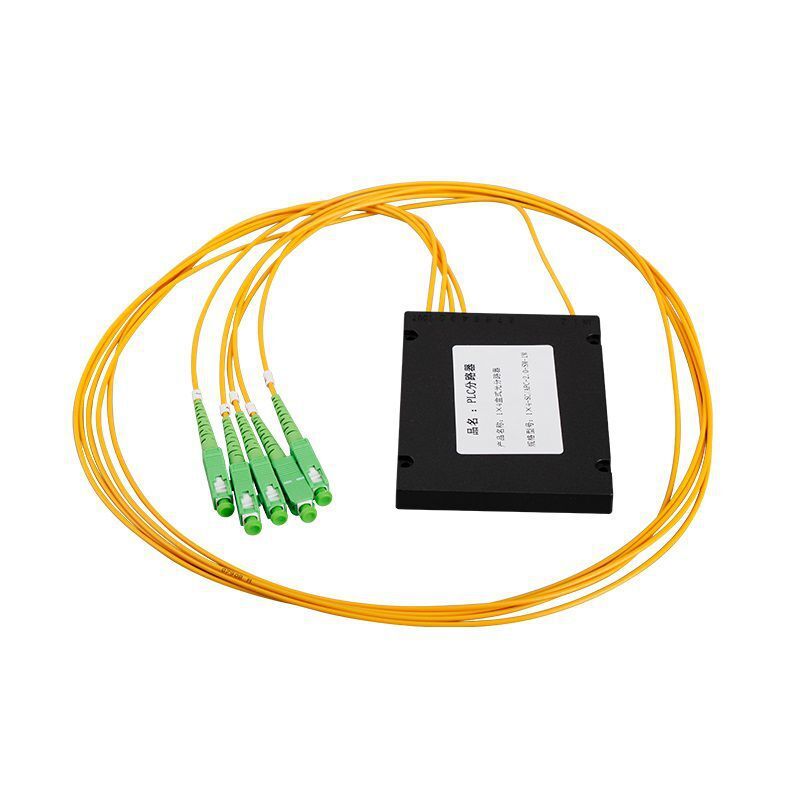

This 1×4 PLC fiber optic splitter has a plastic ABS box that provides multiple protection for inner optical components and cables. It is with 1 input fiber and 4 output fibers designed for easy and reliable installation. The ABS box PON fiber optic splitter is small but with relatively large volumes, and it can be used to splitting the signal directly. The ABS box module 1×4 PLC fiber optic splitter is mainly used for various connections over outdoor optical fibre distribution boxes or network cabinets.
Fiber optic splitter is one of the most important passive devices in the optical fiber link. PLC splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, FTTH, FTTX network. The fiber optic splitter is used to distribute or combine optical signals, which is convenient for Telcom operators to split the optical signal to multiple homes or businesses.
Specification:
| Splitter Type | PLC Splitter |
| Configuration Type | 1xN Or 2xN |
| Connector Type | SC,LC,FC,ST |
| Fiber Length | 1m or 1.5m or Requested |
| Package Style | ABS Box |
| Fiber Type | Singlemode G657A1 or G652D |
| Operating Bandwidth | 1260~1650nm |
| Fiber Diameter | 0.9, 2, 3 mm |
| Insertion Loss (≤) dB | 17.1 |
| Loss Uniformity (≤) dB | 1.5 |
| Polarization Dependent Loss (≤) dB | 0.3 |
| Wavelength Dependent Loss (≤) dB | 0.5 |
| Return Loss (≥) dB | 50 |
| Directivity (≥) dB | 55 |
| Temperature Dependent Loss (≤) dB | 0.8 |
| Operating Temperature (°C) | -20~85 |
| Storage Temperature (°C) | -40~85 |
