1X2 Cassette Type Fiber Optic Splitter

$4.80

Plug-in Type, PLC, SM 0.9mm, SC/APC

Low insertion loss and PDL
Excellent environmental and mechanical Stability
Meet Telcordia GR-1221 and GR-1209 specification
Good uniformity and low addition loss
Available to tailor fiber connector and cable as request
Support configuration 1XN and 2XN

Minimum order quantity: 100 pcs.
Shipping cost not included.
Please CONTACT for a quote on larger quantities.
A sample is free of charge, but freight fee is on your account.

SKU: ADA-FOS-PLC-PIT-1-X-2 Category: Fiber Optic Splitters

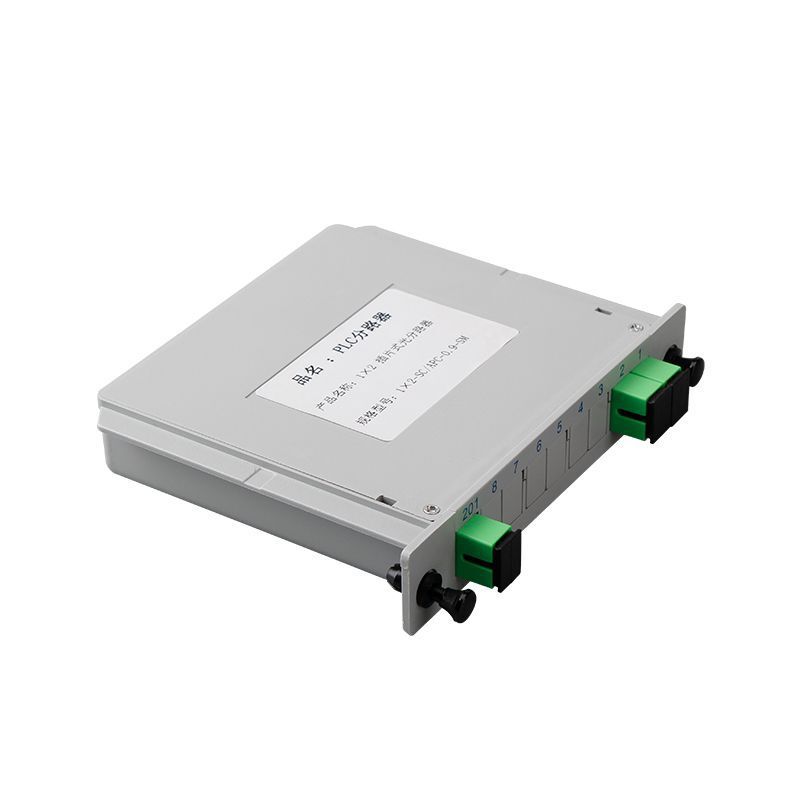

This 1×2 mini cassette type fiber optic beam splitter is with plug-in-play design which enables fast deployment of fibers without splicing machine. The mini plug-in type splitter can save time and space but still provides reliable protection for the fiber optic cable. The 1×2 Cassette fiber optic PLC splitter is usually installed in the wall mount FTTH box for fiber optical signal distribution.

Fiber optic beam splitter is one of the most important passive devices in the optical fiber link. PLC splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, FTTH, FTTX network. These splitters are used to distribute or combine optical signals, which are convenient for Telcom operators to split optical signals to multiple homes or businesses. PLC splitter provides a low-cost light distribution solution with small size and high reliability.

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Specification:

Splitter Type	PLC Splitter
Configuration Type	1xN Or 2xN
Connector Type	SC,LC,FC,ST
Fiber Length	1m or 1.5m or Requested
Package Style	Plug-in Module
Fiber Type	Singlemode G657A1 or G652D
Operating Bandwidth	1260~1650nm
Fiber Diameter	0.9, 2, 3 mm
Insertion Loss (≤) dB	17.1
Loss Uniformity (≤) dB	1.5
Polarization Dependent Loss (≤) dB	0.3
Wavelength Dependent Loss (≤) dB	0.5
Return Loss (≥) dB	50
Directivity (≥) dB	55
Temperature Dependent Loss (≤) dB	0.8
Operating Temperature (°C)	-20~85
Storage Temperature (°C)	-40~85
