1X16 ABS Fiber Optic Splitter

$16.90

1 way in 16 way out, ABS Module, PLC, SM 2mm, SC/APC

Low insertion loss and PDL
Excellent environmental and mechanical Stability
Meet Telcordia GR-1221 and GR-1209 specification
Good uniformity and low addition loss
Available to tailor fiber connector and cable as request
Support configuration 1XN and 2XN

Minimum order quantity: 100 pcs.
Shipping cost not included.
Please CONTACT for a quote on larger quantities.
A sample is free of charge, but freight fee is on your account.

SKU: ADA-FOS-PLC-AM-1-X-16 Category: Fiber Optic Splitters

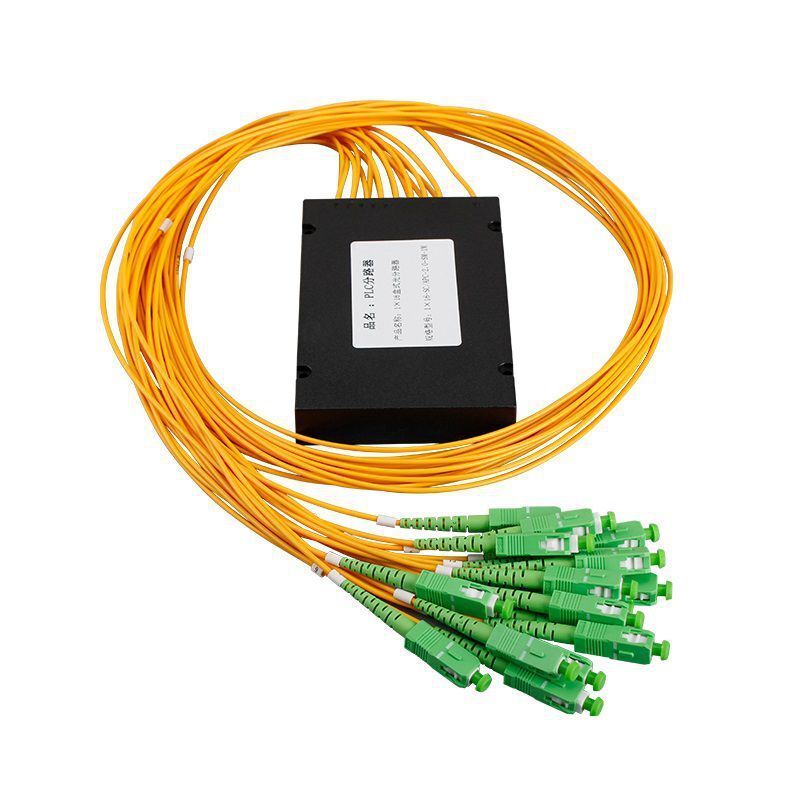

This 1×16 PLC fiber optic splitter has a plastic ABS box that provides multiple protection for inner optical components and cables. It is with 1 input fiber and 16 outport fibers designed for easy and reliable installation. The ABS box PON splitter is small but with relatively large volumes, and it can be used to splitting the signal directly. The ABS box module 1×16 PLC fiber optic splitter is mainly used for various connections over outdoor fibre distribution boxes or network cabinets.

Fiber optic splitter is one of the most important passive devices in the optical fiber link. PLC splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, FTTH, FTTX network. These splitters are used to distribute or combine optical signals, which are convenient for Telcom operators to split optical signals to multiple homes or businesses.

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Specification:

Splitter Type	PLC Splitter
Configuration Type	1xN Or 2xN
Connector Type	SC,LC,FC,ST
Fiber Length	1m or 1.5m or Requested
Package Style	ABS Box
Fiber Type	Singlemode G657A1 or G652D
Operating Bandwidth	1260~1650nm
Fiber Diameter	0.9, 2, 3 mm
Insertion Loss (≤) dB	17.1
Loss Uniformity (≤) dB	1.5
Polarization Dependent Loss (≤) dB	0.3
Wavelength Dependent Loss (≤) dB	0.5
Return Loss (≥) dB	50
Directivity (≥) dB	55
Temperature Dependent Loss (≤) dB	0.8
Operating Temperature (°C)	-20~85
Storage Temperature (°C)	-40~85
