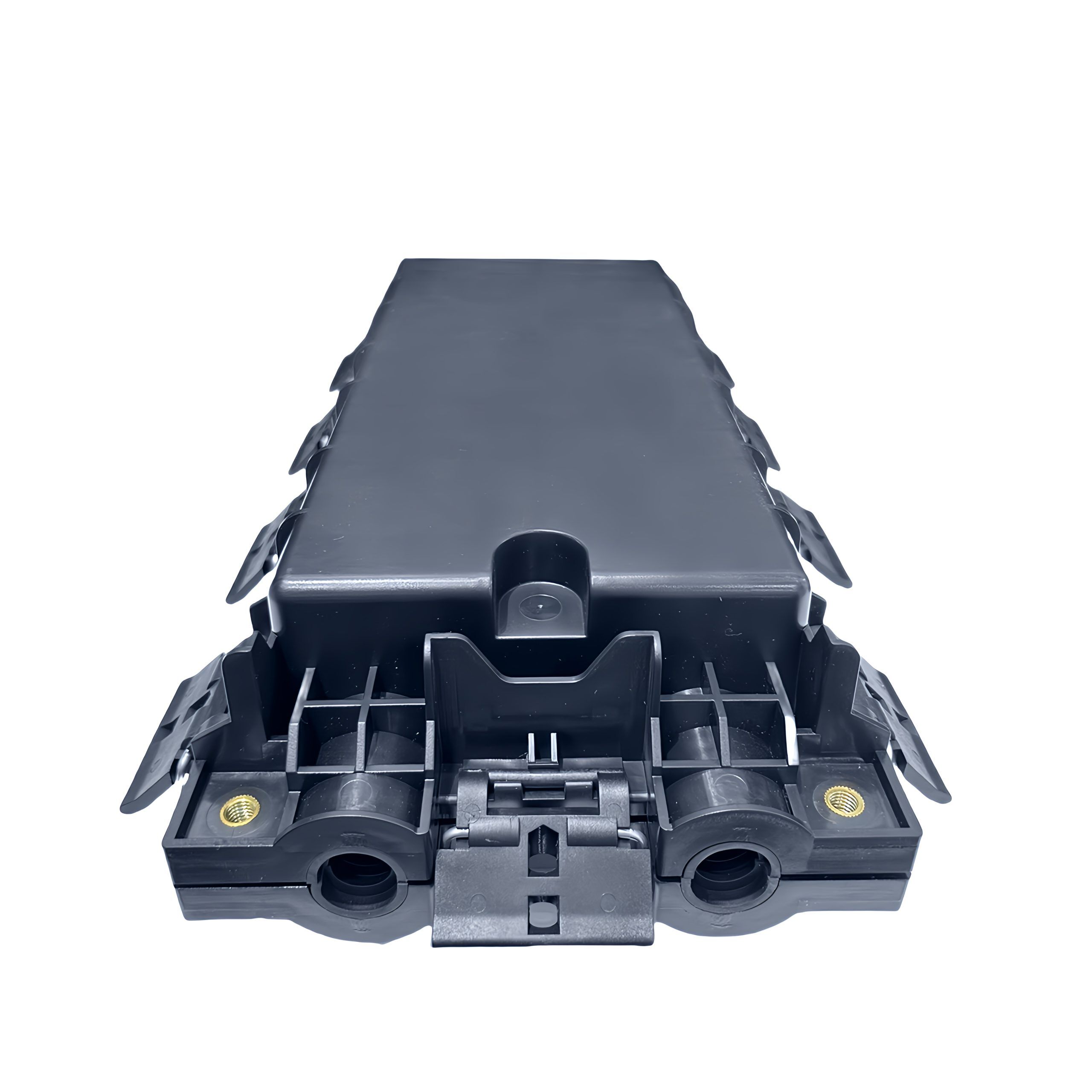

192 Cores Horizontal Fiber Splice Enclosure, 4 Cable Ports

This horizontal fiber splice enclosure comes with 2 cable ports on both sides for cable in and out which can hold max 192 core splices. It is designed to protect fiber optic cable splicing and joints. its outer is of excellent high-strength plastics, and it features lightweight, high mechanical strength, anti-aging, strong corrosion-resistance, inside of the inline fiber optic splice closure can hold 8 pcs 24 splice tray for managing splices and excess fibers.

The horizontal splice enclosure is suitable for protecting fiber cable splices in straight through applications, ideal for outdoor use. Its operating temperature ranges from -40°C to 85°C, and its setup and installation are easy.   The horizontal splice enclosure can be placed aerial mounted, underground or duct mounted locations.

The 192 cores inline fiber cable splice closure is like a flat case, integrating the function of distribution, splice, joint, and storage of outdoor optical cable.No matter where it is in an external plant or inside a building, the fiber cable closure will connect and store optical fibers safely.

Features:

1. Formed in high-strength engineering plastics,  lightweight

2. The sealing of the box body and the cable inlet outlet is made of integrally formed rubber, combined with hinges and inclined wedges. The sealing performance is reliable, and it is easy to open, and maintain repeatedly.

3.  Waterproof, dustproof, protection level up to IP68

4. Users can choose metal or plastic cable holder structures based on actual engineering needs, providing users with a variety of cable fixation methods.

Specification:
