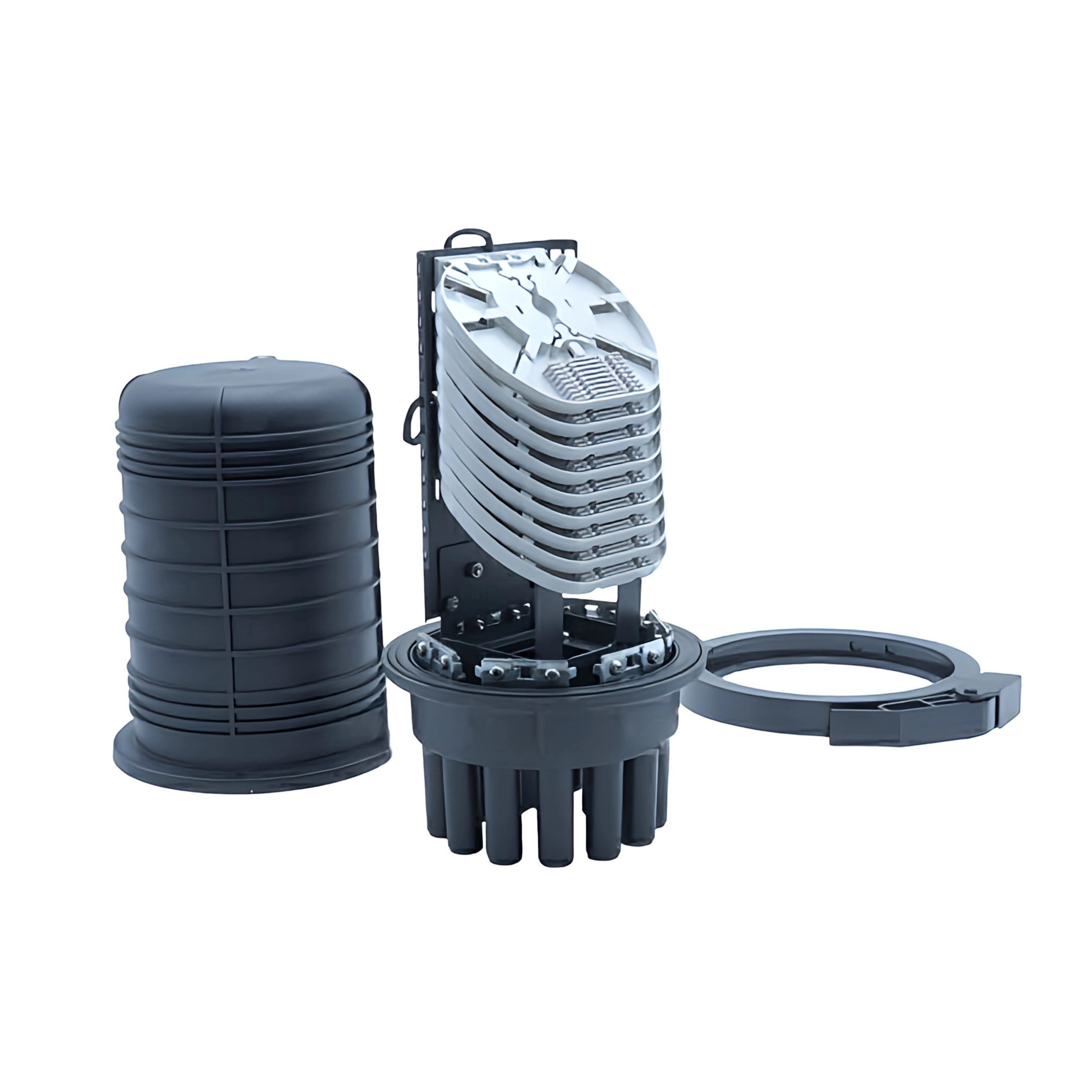

This compact dome closure is a vertical splice enclosure with 1 inlet and 10 outlet ports, it can achieve outdoor optical cable 6 in and 6 out, and holds max 144 cores joint. The shell of the fiber dome closure is of excellent engineering plastics; It features lightweight, high mechanical strength, anti-aging, strong corrosion-resistance; Inside of the fiber optic splice enclosure can place max 9 pcs 16 cores splice tray for managing splices and excess fibers. The fiber joint enclosure is with good sealing performance, protection up to IP68. The fiber optic splice closure can be used for direct and branch connection during optical fiber transmission and provides joint connection protection.
The compact 144 cores dome closure integrates the function of distribution, splice, and storage of outdoor optical fiber cable (ofc), and can be used in aerial, duct, pole, wall mounting, underground direct buried fiber optic cable projects.
Specification：
| Size(mm) | Φ230×320 | Product Type | Dome |
| Max capacity | 144 cores(single fiber ) | Tray capacity | 16 cores |
| Splice tray | Max 9 | Sealing type | Heat shrink& silicon rubber |

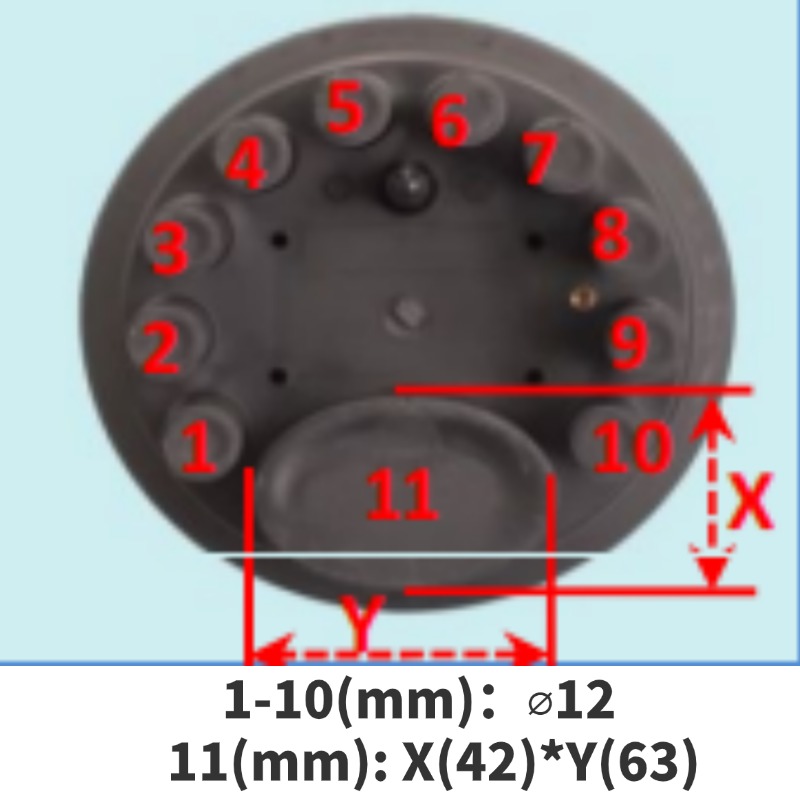

| Cable diameter(mm) | Φ7～Φ12 | Entry&Exit | 1 inlet/10 outlet |
