Explaination of Single Mode and Multimode Fiber Cable

The mild is”guided” down the middle of the fiber known as the”center.” The center is surrounded by a optical substance known as the”cladding” that ignites the light from the heart with an optical technique known as”total internal reflection”. The core and cladding are ordinarily made from ultra-pure glass. The fiber is coated with a protective plastic covering known as the”main buffer coating” which protects it from moisture and other harm. More security is provided by the”cable” that includes the fibers and strength members within an outer covering called a”coat.”

Single Mode Fiber Cable

single-mode-fiber-optic-cable-9-125-internal-structure

Single Mode, fiber optic cable, has a small diametral center which allows just 1 mode of light to spread. As a result of this, the number of light reflections generated as the light moves through the heart decreases, lowering attenuation and making the signal’s capability to travel farther.

Multimode Fiber Optic Cable

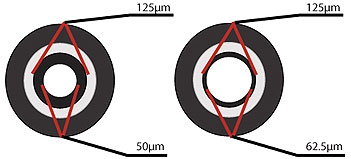

multimode-fiber-optic-cable-50-62.5-125-internal-structure

Multimode fiber optic cable includes a sizable diametral center, which allows multiple modes of light to spread. As a result of this, the number of light reflections generated as the light moves through the core increases, making more information to pass through in a particular time. Due to the high dispersion and attenuation speed with this kind of fiber, the sign’s quality is reduced over extended distances. This program is generally used for short distance, information, and audio/video applications in LANs. RF broadband signs, like what cable firms commonly use, cannot be transmitted over multimode fiber.

Inside Difference of The Multimode Cable

Step-Index Multimode Fiber

Due to the large core, many light beams that make up the electronic heartbeat can travel a direct path, whereas many others zigzag because they bounce off the cladding. These alternative paths cause different groups of light beams, known as manners, to arrive individually at the receiving point. The heartbeat, an aggregate of distinct manners, starts to distribute, discarding its well-defined form.The should leave spacing between stimulation to protect against overlapping limits the quantity of information sent. This sort of fiber is most suitable for transmission over short distances.

Graded-Index Multimode Fiber

Includes a heart where the refractive index falls slowly from the middle axis toward the cladding. The higher refractive index in the centre makes the light beams moving the axis down progress more slowly than people close to the cladding. Due to this graded index, mild in the center curves helically instead of zigzag off the cladding, decreasing its journey space.
Along with the higher speed, the shortened path allows light in the periphery to reach a receiver at roughly precisely the same time as the slow but direct rays in the center axis. The result: electronic pulse suffers less dispersion. This sort of fiber is most suitable for local-area networks.
