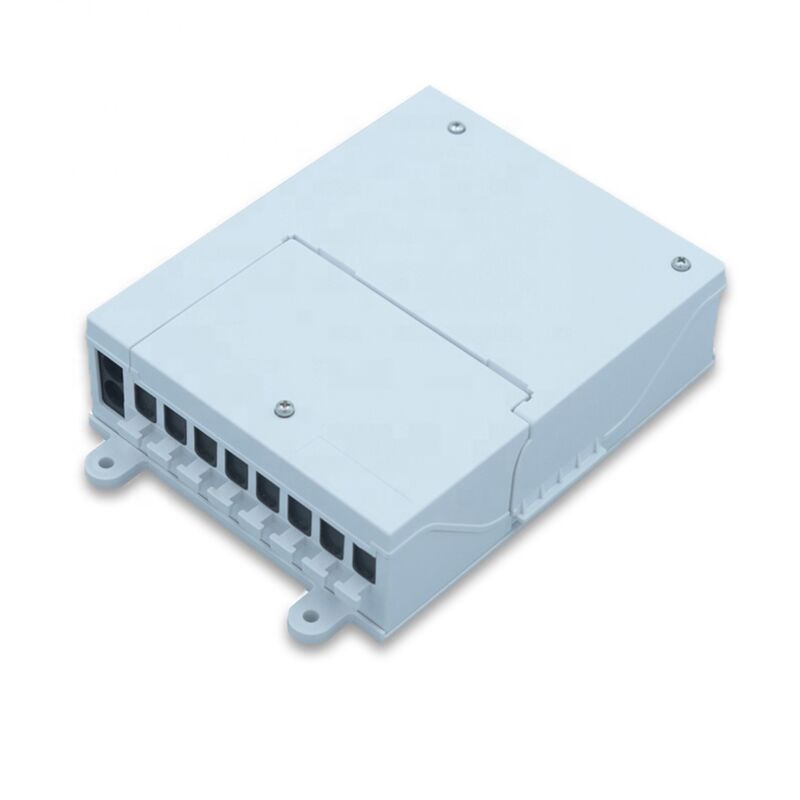

8 Port Optical Fiber Cable Distribution Box, 8 Cores Splice

$8.20

Wall Mounting, 2 Cable Enry Positions, Indoor Use

Model: FOTB-S108B
Made of ABS or ABS+PC plastics
Available to preload 1×8 splitter, adapter
Easy to maintain and install
Free sample is available

Minimum order quantity: 100 pcs.
Shipping cost not included.
Please CONTACT for a quote on larger quantities.
A sample is free of charge, but freight fee is on your account.

The 8 fiber cable distribution box is both termination and splice point for optical fibre in indoor environment; it can achieve direct or branch and terminal connection in FTTH or FTTB projects. It is great to connect indoor cable to optical communication equipment, and enables the connection of feeder cable and drop cables. The unit integrates splicing, splitting, distribution, storages, and usually used to work as floor distribution box for small building applications.

This 8 fiber wall mount enclosure comes with 2 cable inlet and 8 exit ports, which can hold max 1:8 mini splitter and 8 cores splice; widely deployed in the apartment, residential/business premises. It is of high-quality plastics provides protection for splices and terminations; 2 open cable access points allow for the pass through of optical fiber without splicing; two-layer design is clear for fusion splicing, fiber management, the adaptor plate for the termination of connectors, anti-loose cross screw to lock the box.

Features:

. High-density plastics, UV/shock resistance

. Reversible tray makes a larger space for cable storage and fiber routing

. Flip design for splice tray providing easy installation

. Cable port is rubber sealed, dust-proof

. Compact size taking up minimal wall space

fiber optic splice enclosure, passive plc splitter, patch cord, fibre closure, pigtail,launch cabe,ftth terminal box, optical termination box, distribution panel, wall mount fiber junction box，sc/fc/st/lc/e2000 adapter, jumper

Technical parameter:

. Fiber radius of curvature: :≥40mm
. Additional loss：≤0.01dB
. Working Temperature: – 40℃ + 60℃
. Side pressure : ≥2000N / 10 cm
. Impact resistance：≥20N.m

Specification:

Size(mm)	13319247
Weight(kg)	0.32
Cable inlet/outlet	2/8
Cable diameter (mm)	≤ Φ12
Max splice capacity	8 cores (single)
Suitable adapter	SC simplex without lug (8pcs)
Lead time	7 days for 100pcs, 10 days for 800pcs
MOQ	100 pcs
